Horizontal Ribbon Mixer Blender
video
Horizontal Ribbon Mixer Blender

Horizontal Ribbon Mixer Blender

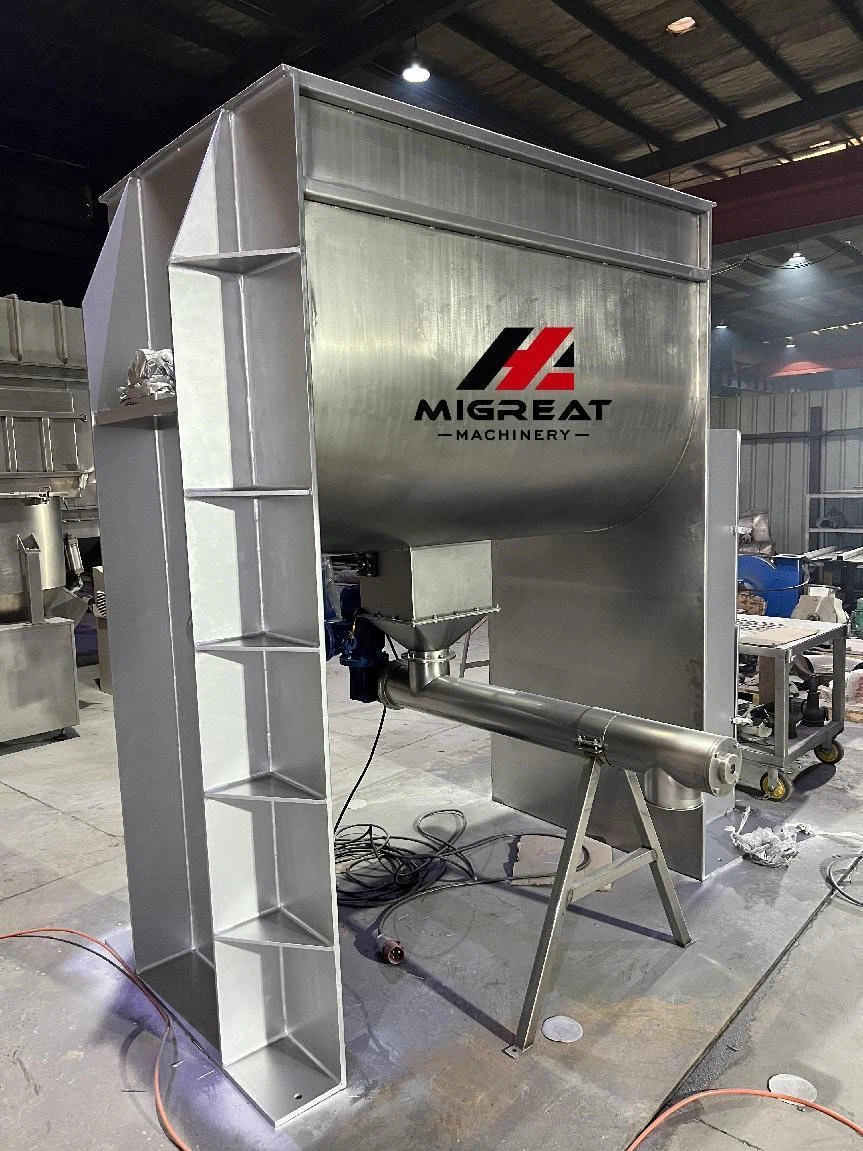

This is a horizontal ribbon mixer blender ,designed to mix all kinds of dry powder .It consists of one U-shaped horizontal mixing tank and two groups of mixing ribbon: outer ribbon displace the powder from the end to the center and inner ribbon move the powder from the center to the ends .This counter-current action results in homogeneous mixing.The cover of the tank can be made as open in order to cleaning and change parts easily.
Main Feature
1 Made in 304SS and Meet GMP stard.
2 Tank was full welding and Polished . There is no dead end .
3 The Mixing time per Bacth is 10-15 mins. One Hour Can work 3-4 batches
4 The machine can mix different rate powder and granule.
5 During Working , The machine Can Spray Some liquid into the granule and Powder(optional)
6 At the top of the Machine , One Safety gate for stop falling other items
7 Weighing checking system(Optional)
Send Inquiry
Application




Horizontal ribbon mixer blender is widely used in chemical, battery materials , paints, dyes , pesticides , food, feed ,additives , refractory materials, new materials , electronic plastics, ceramics , fertilizers , metallurgy , mining, dry mortar , special building materials other sectors of the powder and solid , powder and liquid mixture . Horizontal ribbon mixer cone mixer mixing efficiency is doubled.



Advantages:




1) Simple structure in horizontal U shape ,easy in installation and maintenance.

2) Adopting advanced world famous brand components in pneumatic parts ,motor,electric parts ,bearings and operation parts.

3) PTEF and oil sealing are adopted on both sides of our ribbon mixer,

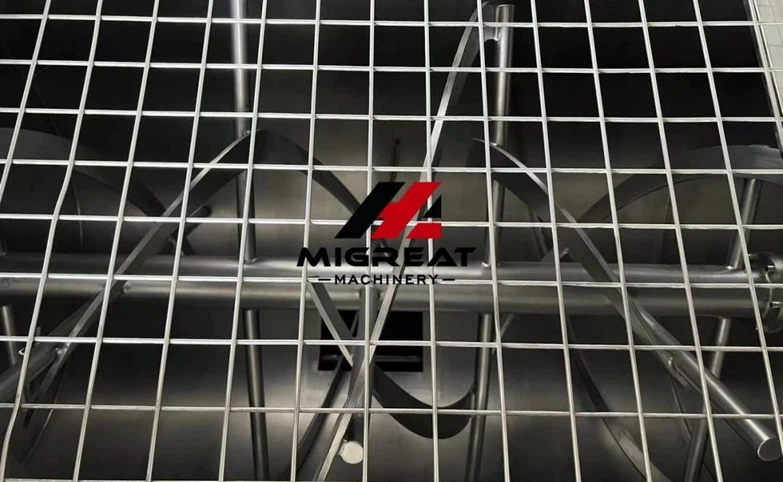

4) There is safety net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
5) Pneumatic valve is adopted to discharge material



Model

Total Volume(L)

Load Coefficient

Power(KW)

Dimensions(mm)

Weight (kg)

WLDH-100

100

0.4-0.8

3

2000x680x1650

300

WLDH-300

200

3

2330x700x1700

390

WLDH-500

500

5.5

2700x960x1750

650

WLDH-1000

1000

7.5

2900x1000x1800

1000

WLDH-1500

1500

11

3100x1150x1800

1400

WLDH-2000

2000

15

3500x1200x1800

2000

WLDH-3000

3000

18.5

4200x1400x1820

2500

WLDH-4000

4000

22

5000x1500x1900

2900

WLDH-5000

5000

22

5100x1500x2100

3500

WLDH-6000

6000

37

5300x1650x2000

4300

WLDH-8000

8000

45

6300x2100x2000

6500

WLDH-10000

10000

55

7200x2100x2100

8500

WLDH-15000

15000

75

8000x2100x2100

130000



1

2

3
