Application
Pharmaceutical pellet granulator machine is also extensively used for wet granlation process by evenly adding binder to fine-powder mixture to get uniform granules in a short time.
GHL series high shear mixer granulator can carry out even mixing of powders or slurry materials with different proportion, so that the mixed materials can reach their best effectiveness. Also it has been used for wet granulation process.
Principle:

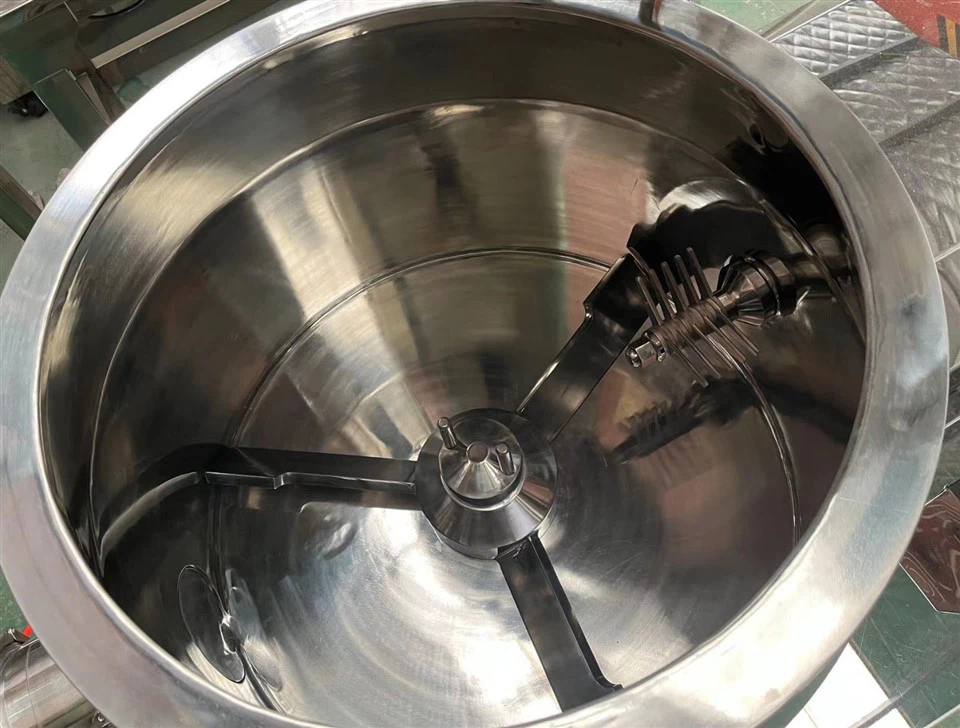

The dry powders are fed into the bowl from top, and mixed together by propellers. Then the binder (water or other liquid, adhesive, etc.) is injected into the bowl from the port on cover. The dry powder and binder are mixed and become wet lump. Meanwhile, a chopper at side wall rotates fast to chop and cut the wet lump into small uniform granule. So it can be used as Super Mixer for dry powders, or as Rapid Mixer Granulator to make wet granule from dry powder, in Pharmaceutical Industry, Foodstuff Industry, Chemical Industry, etc.
|
Type |
GHL-10 |
GHL-50 |
GHL-150 |
GHL-200 |
GHL-250 |
GHL-300 |
GHL-400 |
GHL-600 |
|
Volume (L) |
10 |
50 |
150 |
200 |
250 |
300 |
400 |
600 |
|
Capacity (kg/batch) |
3 |
15 |
50 |
80 |
100 |
130 |
200 |
300 |
|
Blending speed (rpm) |
300/210 |
300/210 |
270/180 |
270/180 |
188/130 |
160/110 |
120/85 |
120/80 |
|
Blending power (KW) |
1.5/2.2 |
4/5.5 |
9/11 |
11/14 |
11/14 |
11/14 |
15/17 |
22/30 |
|
Cutting power (KW) |
0.85/1.1 |
1.5/2.2 |
2.4/3 |
3.3/4 |
3.3/4 |
4.5/5.5 |
6.5/8 |
9/11 |
|
Cutting speed (rpm) |
1440/2900 |
|||||||
|
Working time (min) |
8-15 |
|||||||
|
Particle size (mesh) |
20-80 |
|||||||
