Chilli Grinding Mill Chilli Pepper Grinder Acm 30 Mill Near Me

WFJ series chilli grinding mill chilli pepper grinder acm 30 mill near me are high-energy vertical grinding mills incorporating an internal air classifying wheel to controll product particle size distribution.
Material is fed into the grinding chamber via screw feeder and strongly impacted and collided into fine powder between the high-speed disc rotor and teeth liner. After grinding process, fine powders are carried to the classifying section by airflow where qualified powders are suctioned into the interior of the classifying wheel and discharged as products; coarse powders flow through the inner guide ring back to the grinding chamber because of centrifugal force for re-grinding. Final product is collected by cyclone and bag house.
WFJ chilli grinding mill chilli pepper grinder acm 30 mill near me has been widely used for milling/pulverizing high fiber content materials, heat sensitive materials and brittle materials in food and chemical industry.

Main advantages:

CE&ISO Cooling System Soybean Meal Powder Grinding Machine Soybean Powder Pulverizer Machine is a combination of hammer mill and ultrafine mill, which combines two kinds of equipment to achieve the purpose of continuous production.
It can crush spices, herbers, Cereals into very fine powder. Besides, the material can be fed into the machine directly without coarse crushing. It has the features of big capacity, not changing the color, maintaining the physicochemical characteristics of the material.

FAQ

Q: Q: What information should be provided in order to get a proposal or quotation?

A: A: Each air classifying mill pulverizer is specially designed for each customer according to specific material, capacity, feed material size and product size. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) Detailed information of material are you going to mill. We may ask you to provide simples for grinding test.
2) Size of your material
3) Your required particle size after grinding
4) Grinding capacity in kg/h

Q: Q: How the machine will be delivered ?

A: A: The system is usually dismantled into grinding chamber, cyclone, bag house, draft fan and control cabinet for shipping. Each part is packed in box made by plywood.

Q: Q: What kind of after sale service you can provide?

A: A: We have professional after sale service team who can reach you in short notice. They can supervise the installation, do commissioning and train your workers.

Model	WFJ-15	WFJ-20	WFJ-30	WFJ-60	WFJ-80	WFJ-100
Capacity(kg/h)	10-80	50-150	100-300	200-500	300-600	400-800
Feed size(mm)	≤6	≤10	≤12	≤15	≤15	≤20
Crush size(mesh)	80-400	80-400	80-800	80-800	80-800	80-800
Total Motor(kw)	20	29	46	76	95	124
Main speed(rpm)	4000	4000	3800	3200	2800	2000
Dimensions *(LWH mm)*	1400×1300×2000	6000×1250×2900	7100×1450×3200	8000x1800x4200	9000x1900x4300	10000x2000x4500
Weight(kg)	600	1200	1900	2500	2800	3200

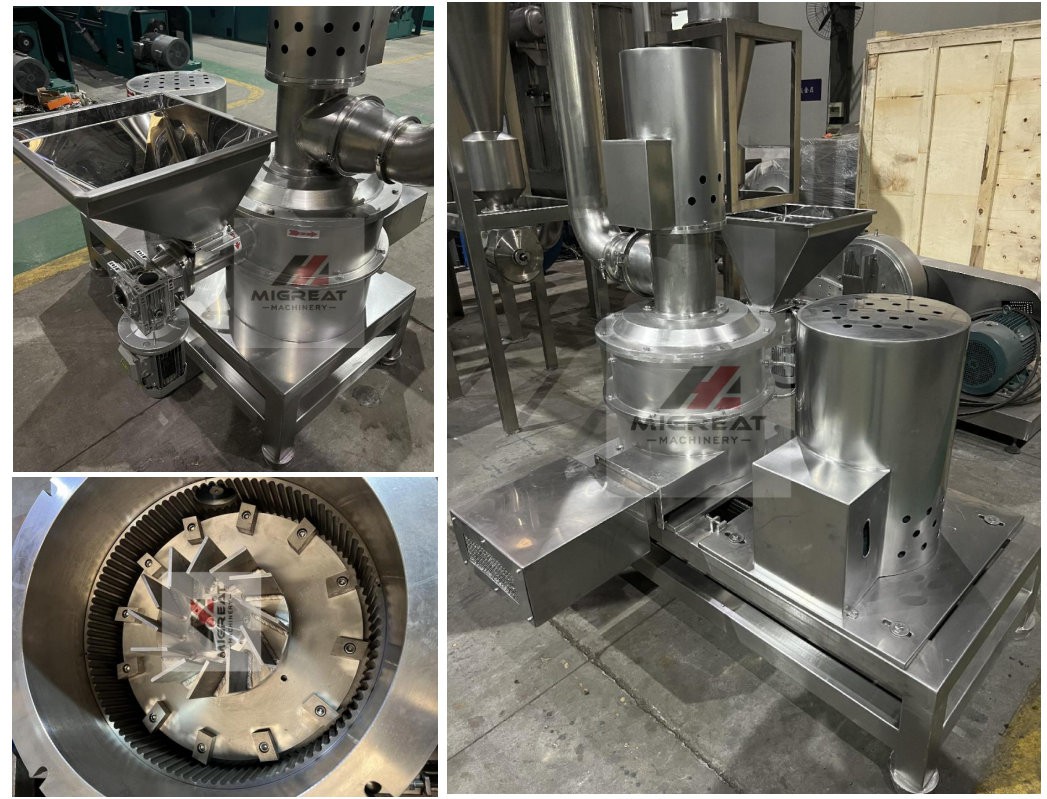

Grinding Part:

Include feed hopper, feeding motor, grading motor, grinding motor and grinding chamber.

The feeding speed can be control be inverter.

You can get different size of powder by adjusting grading speed. The faster the speed, the finer the fineness. The lower the speed, the coarser the fineness.

Fineness from 100-800mesh. No screen in the grinding chamber.

3 001

Water cooling jacket for grinding chamber:

The crusher chamber is equipped with a water-cooled jacket as standard. You can prepare your own cold water connection. Or we can also customize water tanks and pumps(Purchase separately)

Cyclone Discharge Part:

Help to Separate dust from powder.Due to the action of the fan, the interior of the cyclone is in a vacuum state. The powder will be continuously discharged through the discharge motor. Some too fine powder will enter the dust collector box. Avoid dust entering the room. Meet GMP standards.

0-2 001

0-3001

Pulse Dust Collector Box

The dust removal box can collect dust. It contains a needle punched anti-static cloth bag. When the dust enters the dust removal box, it adsorbs on the surface without any surface. Then the pulse air hammer will automatically hit the bag and cause it to fall off. You can open the valve at the bottom of the box every day to clean it.
