Features
1) The machine is specifically designed for export. There will be detailed video tutorials for installation and use. It can also be placed in a container during shipment.
2) The main accessories are all international brands. Such as NSK, Festo, Schneider, Siemens, etc.
3) The machine is equipped with a pulse dust removal box. Dust will be collected.
4) The powder fineness range is from 800 microns to 120 microns (20-120 mesh)
5) The crusher chamber is equipped with a water-cooled jacket. The bearing also comes with a water-cooled jacket
Main Application
Our disc cyclone crusher is suitable for processing various spices. Such as flaxseeds, chili peppers, Sichuan peppercorns, coffee beans, turmeric, ginger, Moringa leaves, cinnamon, vanilla roots, taro, sugar, salt, soybeans, chickpeas, etc.

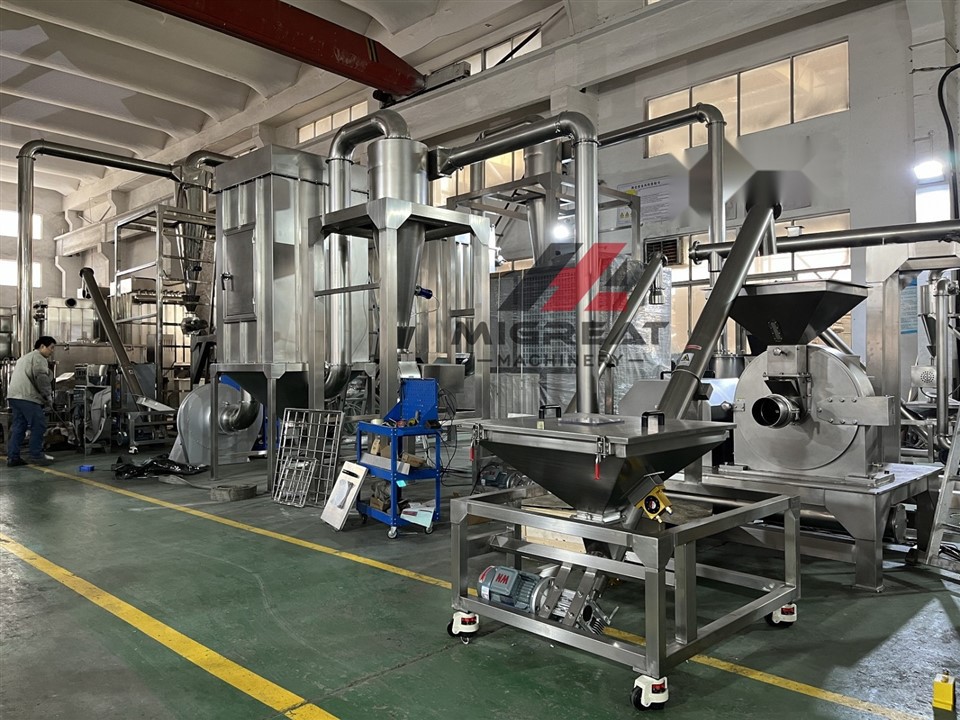

Composed of feed hopper, main motor, and grinding chamber. The material is crushed into powder inside the crusher chamber. Then enter the cyclone discharge section.
You can change differenr size of screen to get different size of powder. From 20-120mesh.
Different types of grinding blade can also be selected according to different materials. Such as pin mill, Turbo, air-cooled, needle type, hammer type.
Cyclone Discharge Part
Help to Separate dust from powder.Due to the action of the fan, the interior of the cyclone is in a vacuum state. The powder will be continuously discharged through the discharge motor. Some too fine powder will enter the dust collector box. Avoid dust entering the room. Meet GMP standards.
The dust removal box can collect dust. It contains a needle punched anti-static cloth bag. When the dust enters the dust removal box, it adsorbs on the surface without any surface. Then the pulse air hammer will automatically hit the bag and cause it to fall off. You can open the valve at the bottom of the box every day to clean it.
|
Model |
MXG-400 |
MXG-500 |
MXG-600 |
MXG-800 |
|
Capacity(kg/h) |
100-400 |
200-600 |
300-800 |
400-1000 |
|
Feed size(mm) |
≤10 |
≤15 |
≤15 |
≤15 |
|
Crush size(mesh) |
20-120 |
20-120 |
20-120 |
20-120 |
|
Grinding Motor (kw) |
11 |
15 |
22 |
37 |
|
Discharge power (kw) |
0.75 |
0.75 |
0.75 |
1.5 |
|
Fan motor (kw) |
4 |
11 |
15 |
30 |
|
Main speed(rpm) |
4500 |
4300 |
3500 |
3000 |
|
Dimensions (L*W*H mm) |
5000×1000×2700 |
5500×1200×2800 |
6500*1400*2900 |
7500*1600*3500 |
|
Weight(kg) |
900 |
1200 |
1500 |
2000 |
