01 / 05Conveying · MJ-S series
Screw Conveyor
A screw conveyor, also called a screw feeder. It lifts powder and granules from a feed hopper up an incline.
- Size
- Φ89 mm to Φ219 mm, 6 models
- Conveying output
- 1 to 15 m³/h
- Power
- 0.75 kW to 3 kW
- Use
- Feeding mixers, packers and hoppers
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
A screw that lifts and feeds
The MJ-S screw conveyor moves powder and granules along an inclined tube with a turning screw. The screw conveyor and the screw feeder are the same machine.

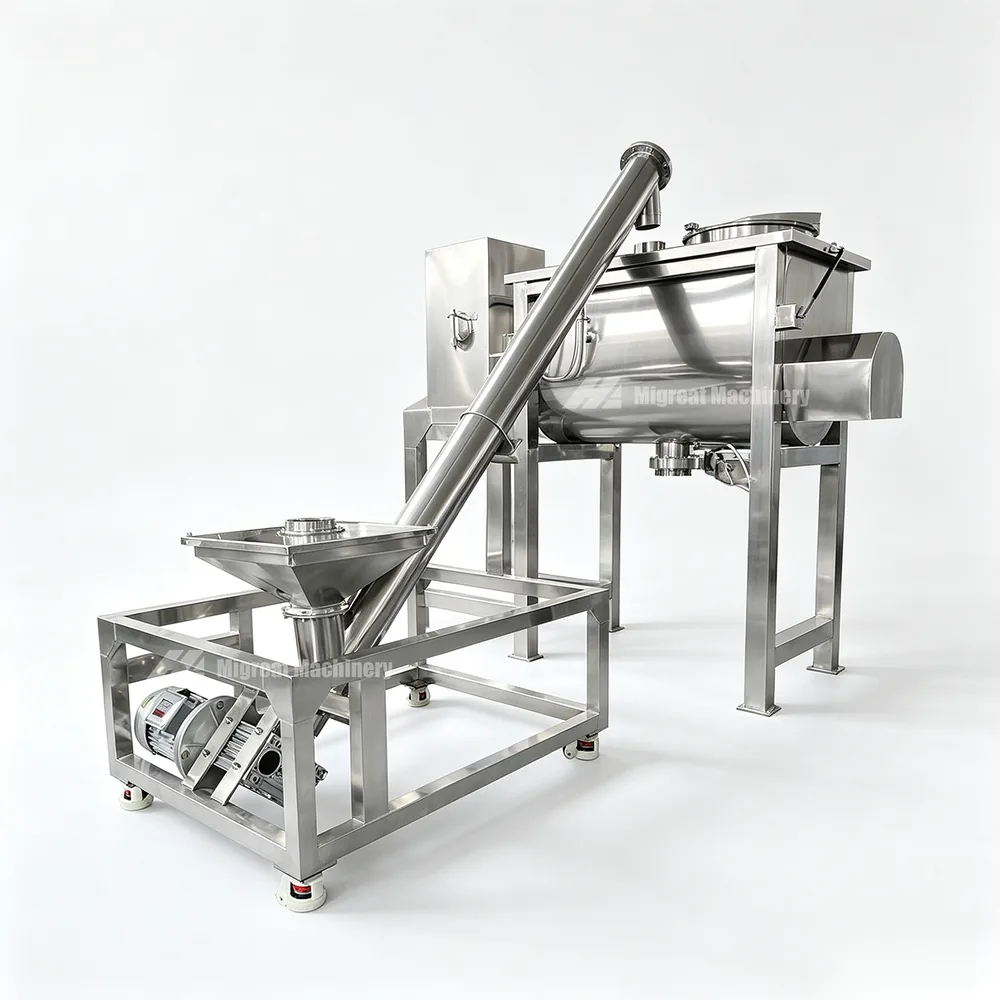

It is fitted with a feed hopper and runs on a mobile frame, so it can feed a mixer, a packing machine or a storage hopper.
Feed
Material goes into the feed hopper.
Convey
A turning screw carries it along the tube.
Discharge
It leaves at the top, into the next machine.
The range in numbers
- 6Models
From MJ-S1 to MJ-S9
- Φ89 to Φ219mm
Size
- 1 to 15m³/h
Conveying output
- 0.75 to 3kW
Power
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Simple and made to your line
Length, angle and hopper are set to your layout.
Six sizes
Tube sizes from Φ89 mm to Φ219 mm.
Output range
1 to 15 m³/h by model.
Feed hopper
A hopper at the foot takes material in.
Mobile frame
Fitted on a frame with casters, so it can be moved between machines.
Custom length
Length and height are set to your layout.
Build it your way
Size
Six models from MJ-S1 to MJ-S9.
Length and height
Set to your layout.
Hopper
A feed hopper at the foot.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by conveying output
Pick the model from the output you need.
| Model | Size (mm) | Power (kW) | Conveying output (m³/h) |
|---|---|---|---|
| MJ-S1 | Φ89 | 0.75 | 1-2 |
| MJ-S3 | Φ114 | 1.1 | 2-3 |
| MJ-S4 | Φ141 | 1.5 | 3-5 |
| MJ-S5 | Φ159 | 2.2 | 5-8 |
| MJ-S6 | Φ168 | 3 | 8-10 |
| MJ-S9 | Φ219 | 3 | 10-15 |
Showing 0 of 6 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It feeds powder and granules to the next machine in a line.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is a screw conveyor?
The MJ-S screw conveyor moves powder and granules along an inclined tube with a turning screw. It has a feed hopper and runs on a mobile frame, so it can feed a mixer, a packing machine or a storage hopper.
What is the difference between a screw conveyor and a screw feeder?
On this page there is none. The MJ-S screw conveyor and the screw feeder are the same machine, which lifts powder and granules from a feed hopper up an incline.
What are screw conveyors used for?
The MJ-S feeds powder and granules to the next machine in a line, such as mixers, packers and hoppers. Tube sizes run from 89 mm to 219 mm across six models, with output of 1 to 15 m3/h by model.
How do screw feeders work?
Material goes into the feed hopper at the foot. A turning screw carries it along the tube, and it leaves at the top into the next machine. Length and height are set to your layout.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Inquiry
Not sure which conveyor fits?
Tell us your material, distance and height. We reply with a suitable model.
