01 / 04Packing · MJ series

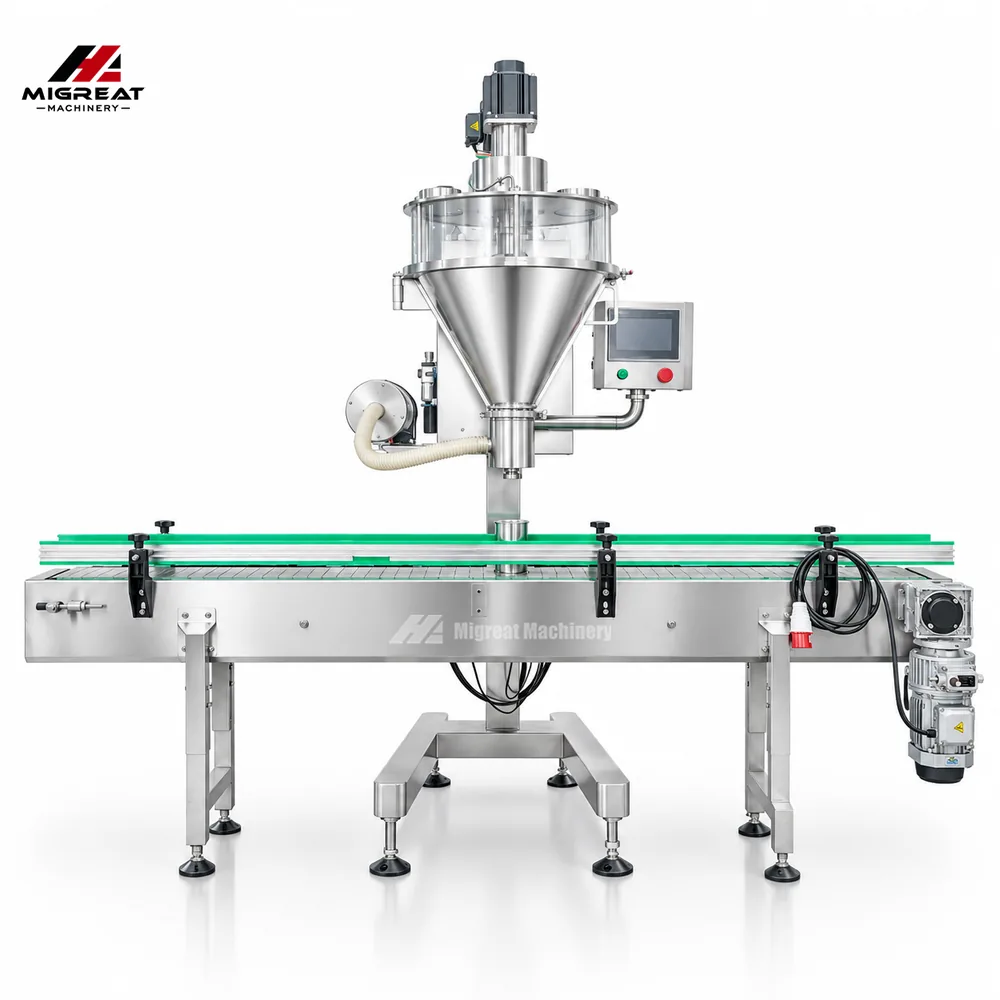

MJ-2B Packing Machine
An automatic powder filling machine with an auger, for bottles, with target weights from 50 g to 5 kg.
- Package weight
- 50 to 5,000 g
- Speed
- 6 to 12 bags/min
- Hopper
- 50 L side-opening
- Power
- 1.8 kW
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Automatic auger filling for bottles
The MJ-2B automatic powder filling machine fills powdery and granular materials into bottles, including milk powder, feed powder, rice flour, coffee powder, monosodium glutamate, solid beverages, glucose and solid medicines.
A practical mechanical design makes it easy to change size-related parts and simplifies cleaning. It has a vacuum cleaner to collect airborne powder.
Feed
Powder or granules go into the hopper. An agitator keeps them feeding into the auger.
Fill
A servo-driven auger doses the material, with weight feedback.
Pack
The filled weight goes into the bag, bottle or container.
The range in numbers
- 1Model
Automatic, bottles
- 50 to 5,000g
Package weight
- 6 to 12bags/min
Packaging speed
- 50L
Hopper volume
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Accurate filling, easy cleaning
Stainless steel construction and a side-opening hopper.
Side-opening hopper
A 50 L side-opening hopper in stainless steel and plexiglass allows convenient access for cleaning and maintenance.
Typical filling range
It suits filling powdery materials into bottles with target weights from 0.1 to 3 kg (typical filling range).
Servo-driven auger
A precision-machined auger driven by a servo motor fills accurately and suits different target weights.
Hopper agitator
An integrated agitator keeps powder feeding steadily into the auger.
Touch screen
Touch screen control with Chinese, English and customized language options.
Easy adjustment and cleaning
A practical mechanical design makes it easy to change size-related parts and simplifies cleaning.
Build it your way
Auger
Change the auger attachment to change the package weight.
Language
Chinese, English or customized.
Voltage
380V / 220V, 50-60Hz.
Hopper
50 L side-opening hopper.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Key parameters
Package weight is the range you can change by changing the auger attachment.
| Item | MJ-2B |
|---|---|
| Metering model | Auger filling, electronic-sensing weighing feedback |
| Package weight | 50-5000g (changeable by changing auger attachment) |
| Package accuracy | ±0.2-1% (according to material proportion and pack weight) |
| Packaging speed | 6-12 bags/min (according to people speed and pack weight) |
| Power supply | 380V / 220V 50-60Hz |
| Total power | 1.8 kW |
| Total weight | 300 kg |
| Overall dimensions | 2400 x 850 x 2250 |
| Hopper volume | 50 L |
| Operational style | PLC control system, 5.7 inch colorful touch screen |
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It fills powdery and granular materials.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is the working principle of a bottle filling machine?
In the MJ-2B, powder goes into the 50 L hopper and an agitator keeps it feeding into the auger. A servo-driven auger doses it with weight feedback and the filled weight goes into the bottle.
Which machine is better, automatic or semi-automatic?
It depends on the package. The MJ-2B is the automatic one in our range, for bottles with target weights from 50 g to 5 kg, at 6 to 12 bags per minute. The semi-automatic models fill bags, buckets and containers.
How does the MJ-2B handle dust?
It has a vacuum cleaner to collect airborne powder, and a practical mechanical design that makes it easy to change size-related parts and simplifies cleaning.
