01 / 05Mixing · SHJ series

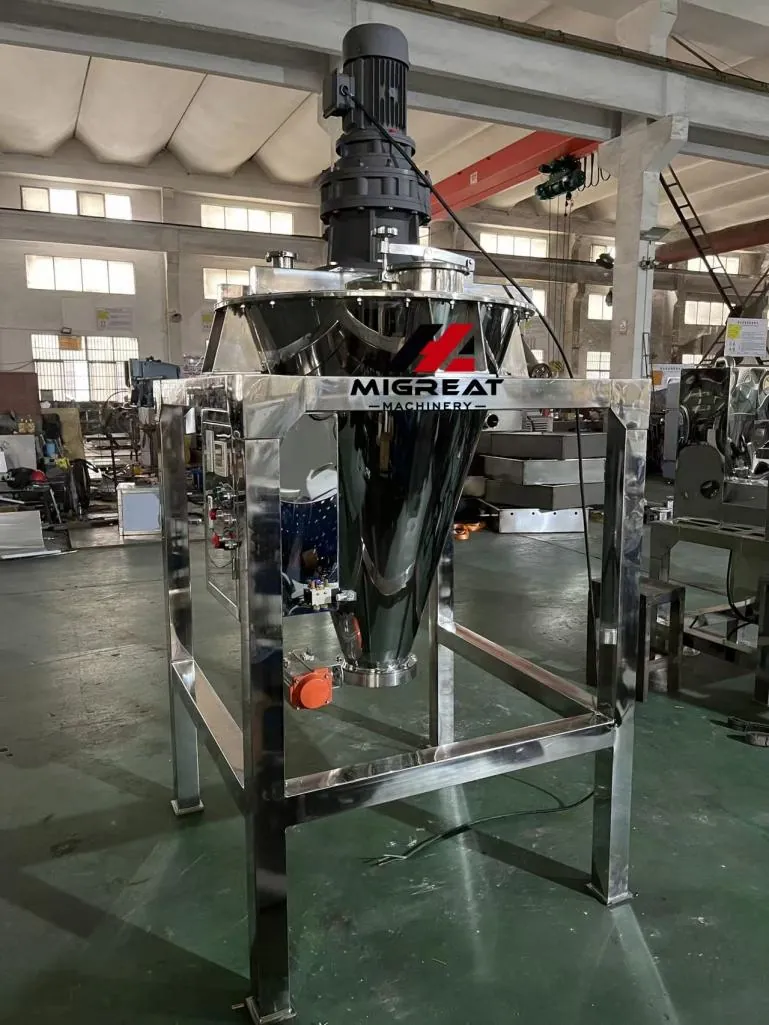

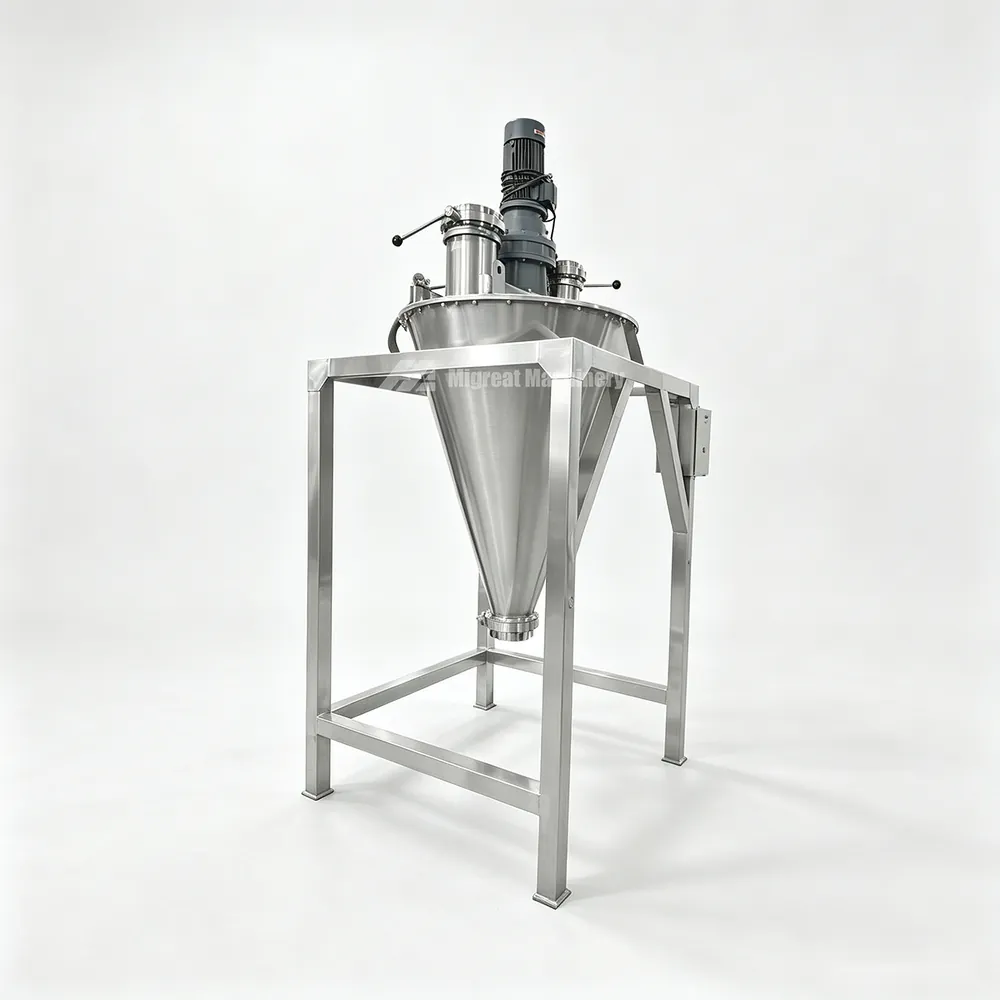

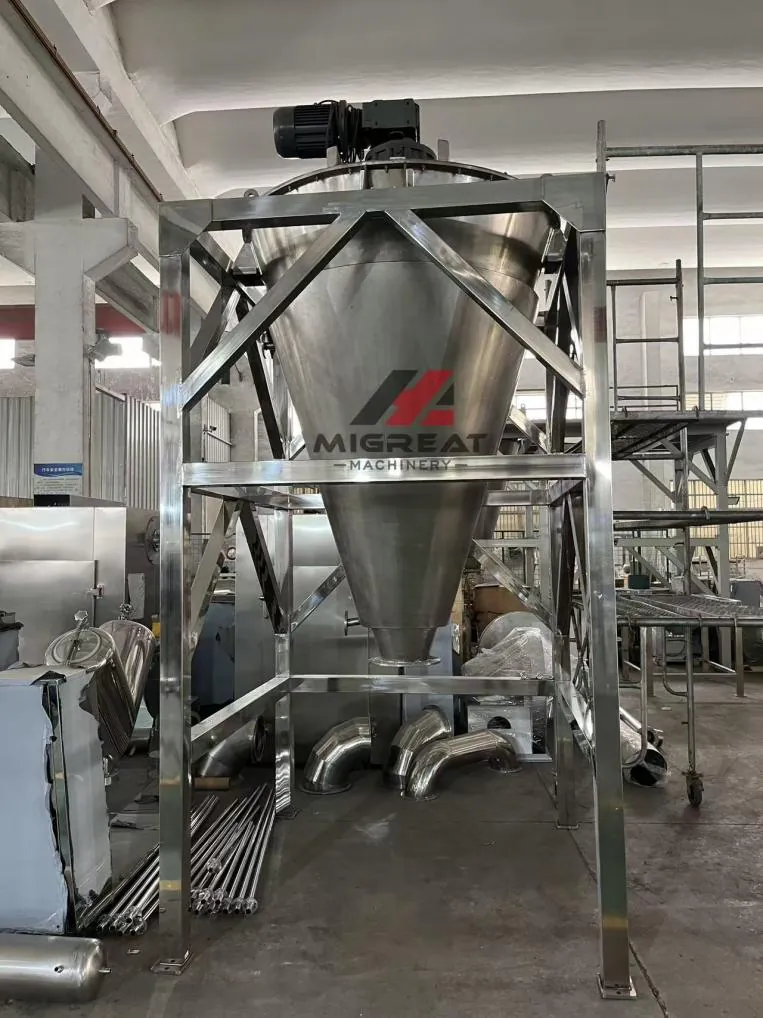

Double Screw Conical Mixer
A nauta mixer, a conical screw mixer with two spiral screws that orbit while they turn. It mixes powder and granule gently and quickly.
- Volume
- 300 L to 30,000 L, 11 models
- Effective loading
- 120 L to 18,000 L
- Uniformity
- Up to 98%
- Power
- 3 kW to 45 kW
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Orbiting screws in a conical tank
The SHJ double screw conical mixer has spiral cone screws that both revolve around the tank and rotate on their own axis. Material is lifted from the bottom, thrown out and mixed in every direction.
Homogeneity can reach 98 percent. An optional spray nozzle adds liquid during mixing.
Lift
The screws lift material from the bottom of the cone.
Mix
Revolving and rotating screws spread material in all directions.
Discharge

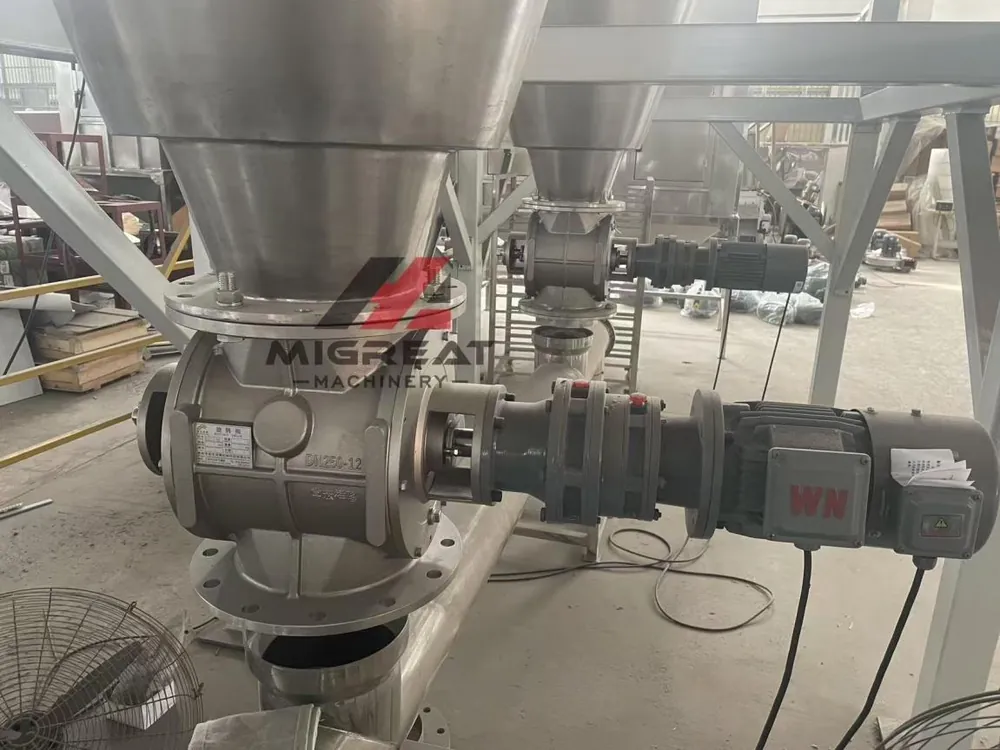

The valve at the bottom of the cone discharges the batch.
The range in numbers
- 11Models
From SHJ-300 to SHJ-30000
- 300 to 30,000L
Full volume
- Up to 98%Uniformity
Mixing result
- 3 to 45kW
Power
More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features

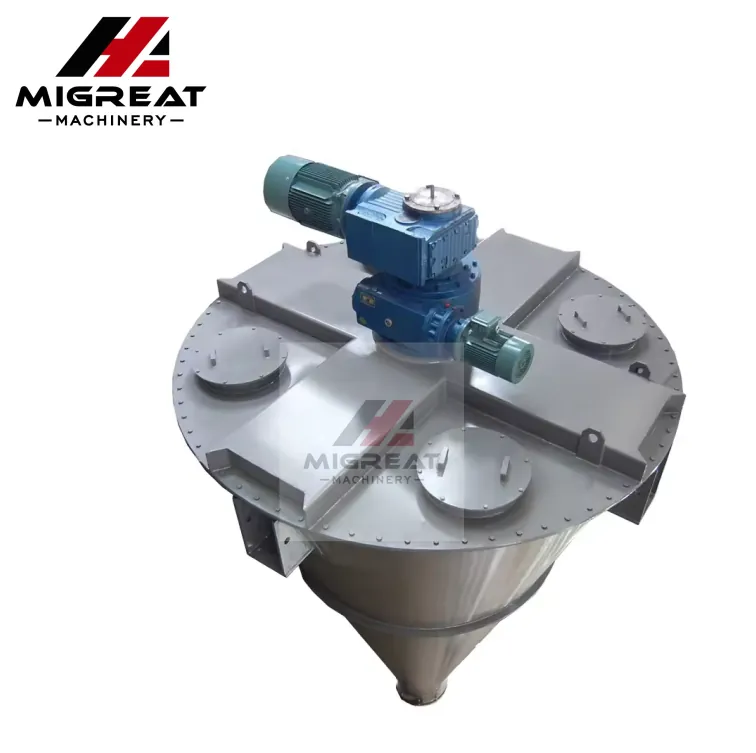

Sealed against dust and leaks
The shaft has Teflon packing and an air-tight shaft seal.

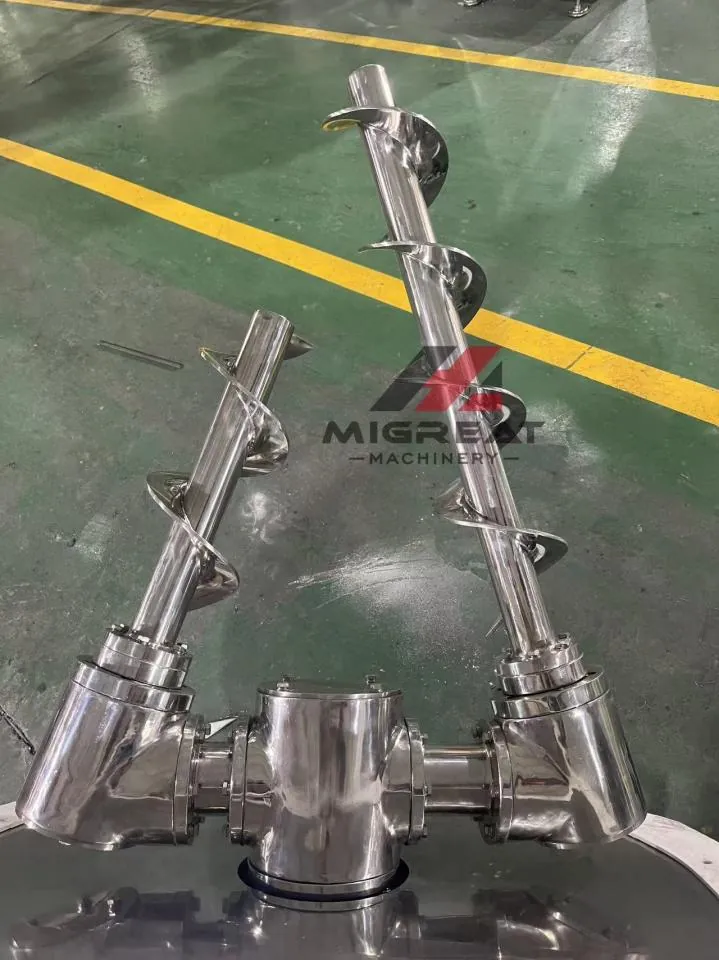

Revolving and rotating screws
Material is mixed in all directions with little damage to it.
Up to 98% homogeneity
High uniformity for powder and granule.
Spray option
An optional spray nozzle adds liquid.
Sealed shaft
Teflon packing and an air-tight shaft seal keep the product clean.
Wide size range
From 300 L to 30,000 L.

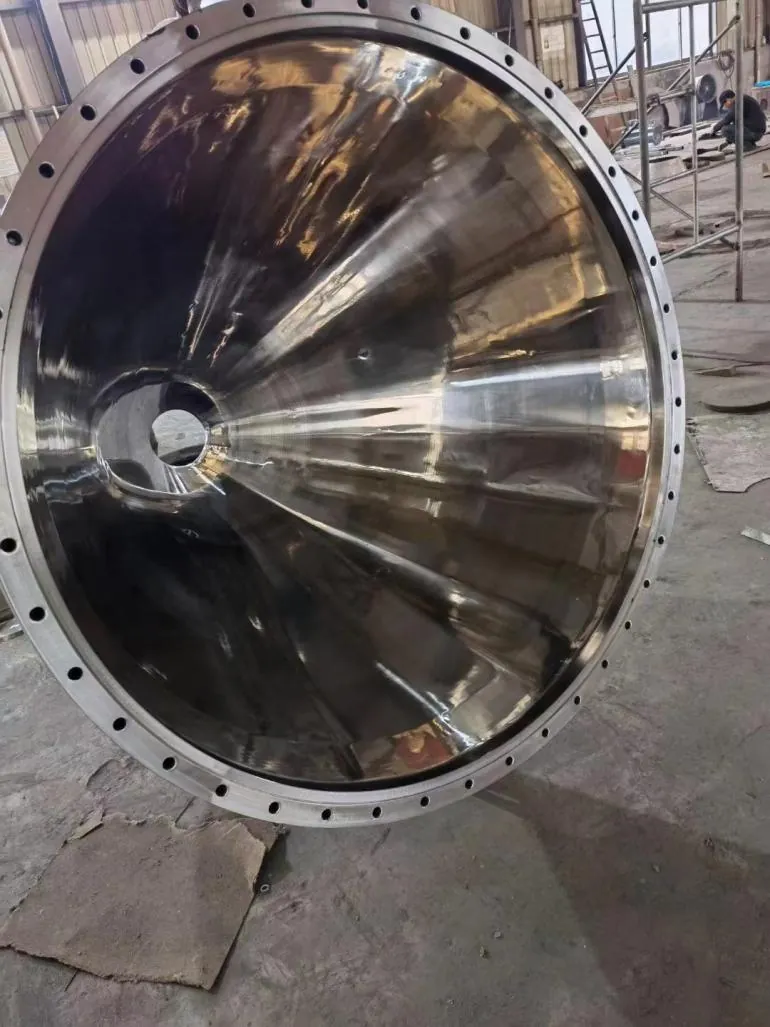

Cone design
The cone discharges cleanly.
Build it your way
Size
Eleven models from 300 L to 30,000 L.
Spray
Optional spray nozzle.
Material
Stainless steel build.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by volume
Rotate speed is shown as the screw rotation speed over the revolution speed, in r/min.
| Model | Full volume (L) | Effective loading volume (L) | Rotate speed (r/min) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|
| SHJ-300 | 300 | 120-180 | 2/68 | 3 | 400 |
| SHJ-500 | 500 | 200-300 | 2/68 | 3 | 550 |
| SHJ-1000 | 1000 | 400-600 | 2/57 | 4 | 1200 |
| SHJ-2000 | 2000 | 800-1200 | 2/57 | 5.5 | 1500 |
| SHJ-3000 | 3000 | 1200-1800 | 2/57 | 7.5 | 2300 |
| SHJ-4000 | 4000 | 1600-2400 | 2/57 | 11 | 2800 |
| SHJ-6000 | 6000 | 2400-3600 | 2/57 | 15 | 3600 |
| SHJ-10000 | 10000 | 4000-6000 | 2/57 | 18.5 | 4200 |
| SHJ-15000 | 15000 | 6000-9000 | 2/57 | 22 | 4900 |
| SHJ-20000 | 20000 | 8000-12000 | 2/57 | 37 | 5800 |
| SHJ-30000 | 30000 | 12000-18000 | 2/57 | 45 | 7000 |
Showing 7 of 11 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It mixes powder and granule in chemical, food, pharmaceutical and other industries.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is the mixer used for?
The SHJ double screw conical mixer mixes powder and granule in chemical, food, pharmaceutical and other industries. It has 11 models from 300 L to 30,000 L.
What is the main function of a mixer?
To blend materials into an even batch. In the SHJ, spiral screws revolve around the cone and rotate on their own axis, lifting material from the bottom and mixing it in every direction. Homogeneity can reach 98 percent.
How does the double screw conical mixer mix?
The two screws both revolve around the tank and rotate on their own axis. Material is lifted from the bottom, thrown out and mixed in all directions with little damage to it. The valve at the bottom of the cone discharges the batch.
