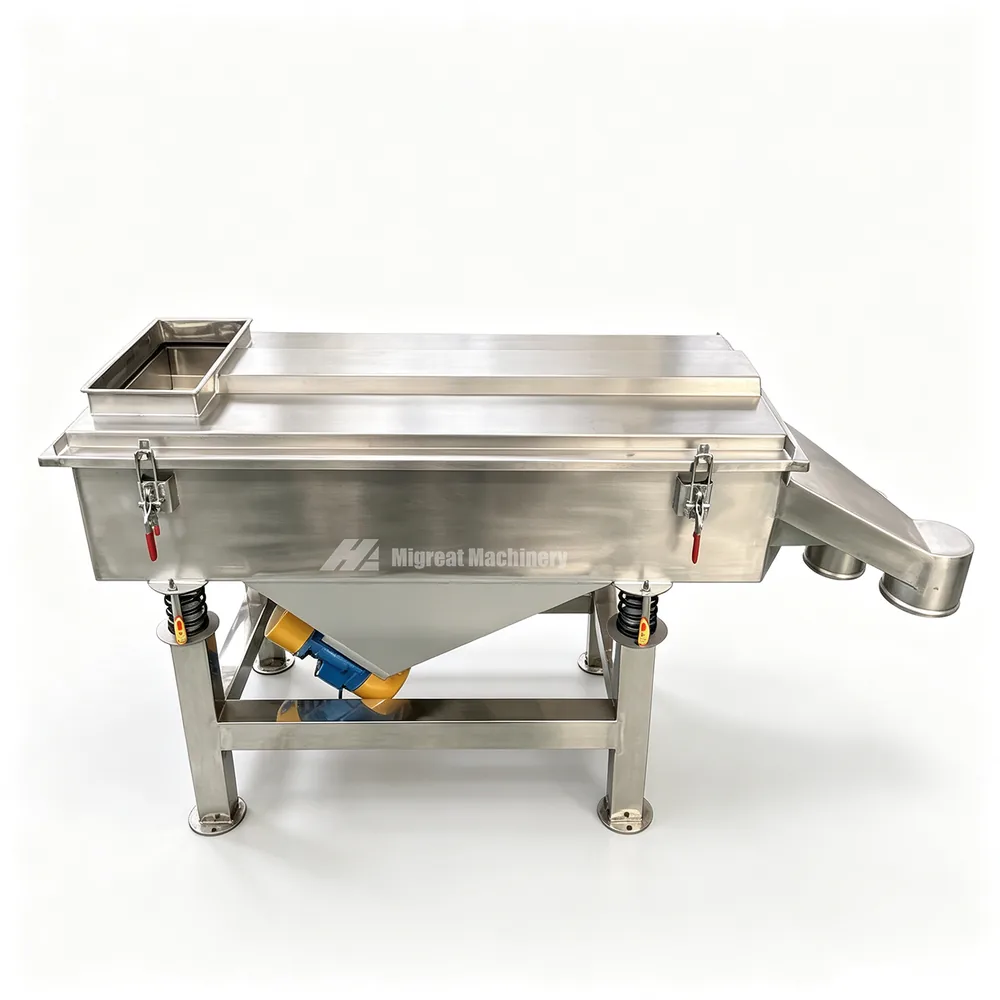

Linear Sieve
A linear vibrating screen. Two vibration motors turn in opposite directions and shake the screen box in a straight line.
- Effective size
- 500 x 2000 mm to 1600 x 5000 mm
- Particle size
- 0.074 to 60 mm
- Decks
- 1 to 4
- Speed
- 960 rpm
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Straight line vibration, several grades
The ZQ linear sieve has its vibration motors mounted at the bottom. Two motors turn in opposite directions, so the screen box vibrates along a straight line.
The material passes over multiple layers of mesh and is separated into different particle sizes.
Vibrate
Two motors turn in opposite directions at 960 rpm.
Travel
The screen box vibrates in a straight line, with amplitude 4 to 8 mm.
Grade
Up to four decks of mesh separate the material into different sizes.
The range in numbers
- 5Models
From ZQ-520 to ZQ-1650
- 0.074 to 60mm
Particle size
- 1 to 4
Decks
- 4 to 8mm
Amplitude
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Simple, multi grade screening
Straight line vibration over layered mesh.
Straight line motion
Two counter-rotating motors drive the screen box in a straight line.
Multi layer
One to four decks separate several particle sizes in one pass.
Fine to coarse
Handles particle sizes from 0.074 to 60 mm.
Fixed speed
960 rpm, with amplitude of 4 to 8 mm.
Five sizes
Five models from ZQ-520 to ZQ-1650.
Build it your way
Size
Five models from ZQ-520 to ZQ-1650.
Decks
One to four decks.
Mesh
Screen mesh to your material.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by effective size
Pick the model from the screen size and power you need.
| Model | Effective size (mm) | Particle size (mm) | Deck | Power (kW) | Speed (rpm) | Amplitude (mm) |
|---|---|---|---|---|---|---|
| ZQ-520 | 500 x 2000 | 0.074-60 | 1-4 | 2 x 0.75 | 960 | 4-8 |
| ZQ-840 | 800 x 4000 | 0.074-60 | 1-4 | 2 x 1.5 | 960 | 4-8 |
| ZQ-1030 | 1000 x 3000 | 0.074-60 | 1-4 | 2 x 1.9 | 960 | 4-8 |
| ZQ-1255 | 1200 x 5000 | 0.074-60 | 1-4 | 2 x 2.2 | 960 | 4-8 |
| ZQ-1650 | 1600 x 5000 | 0.074-60 | 1-4 | 2 x 3.0 | 960 | 4-8 |
Showing 0 of 5 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It grades powder and granules into different sizes.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What are vibrating screens used for?
The ZQ linear sieve grades powder and granules into different sizes. It handles particle sizes from 0.074 to 60 mm, and up to four decks of mesh give several grades in one pass.
How does a vibrating screen work?
Two vibration motors, mounted at the bottom, turn in opposite directions at 960 rpm. The screen box vibrates in a straight line with amplitude of 4 to 8 mm, and the material passes over the layers of mesh and separates into sizes.
What is linear and non-linear vibration?
In the ZQ linear sieve, two counter-rotating motors drive the screen box in a straight line. Our ZS vibrating sifter is the other kind. Its upright motor with eccentric weights moves the screen in three dimensions.
What are the different types of vibrating screens?
We build two. The ZQ linear sieve vibrates in a straight line over up to four decks, and the ZS vibrating sifter is round and fully enclosed with bouncing ball cleaning, with one to five decks by model.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
