01 / 05Mixing

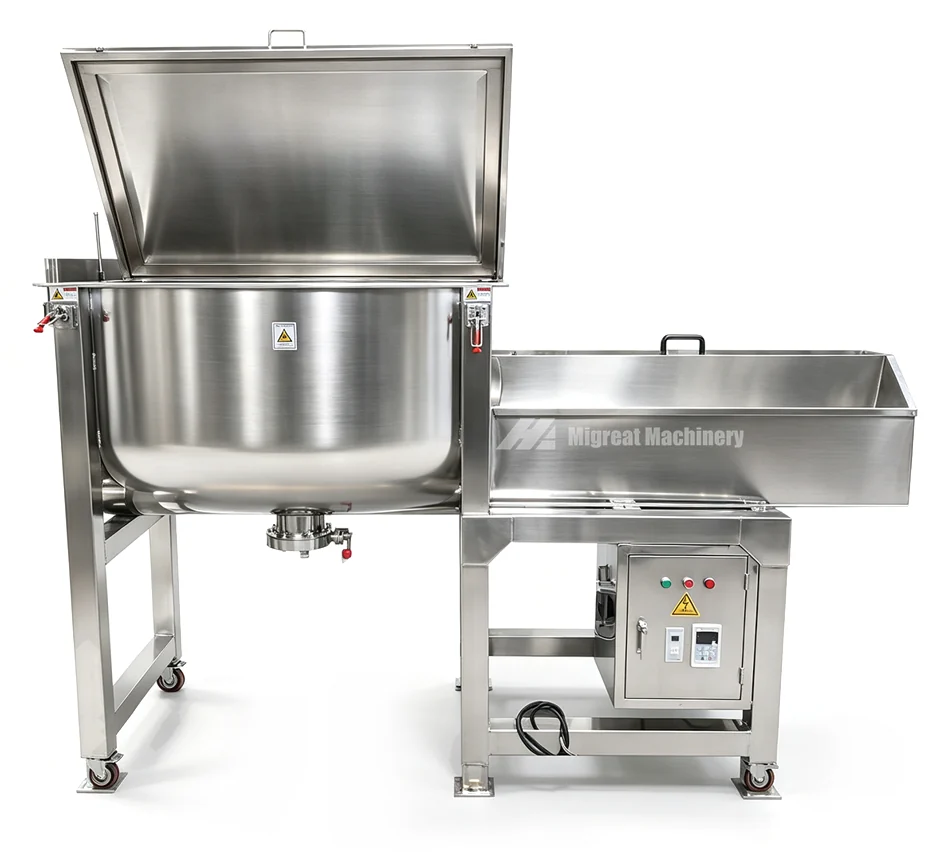

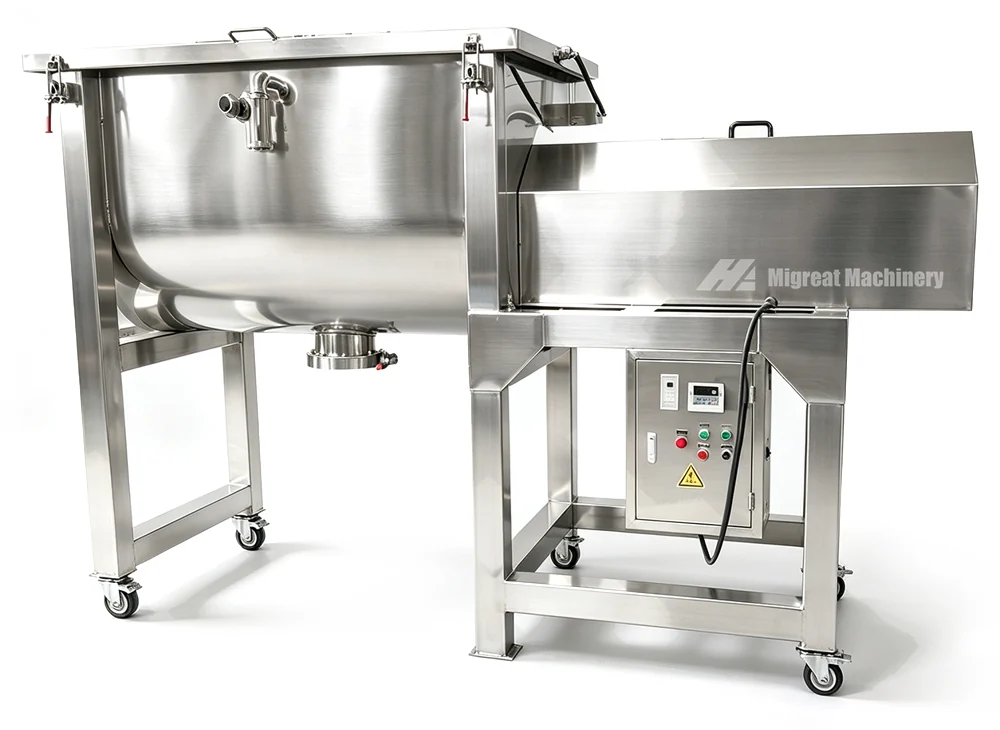

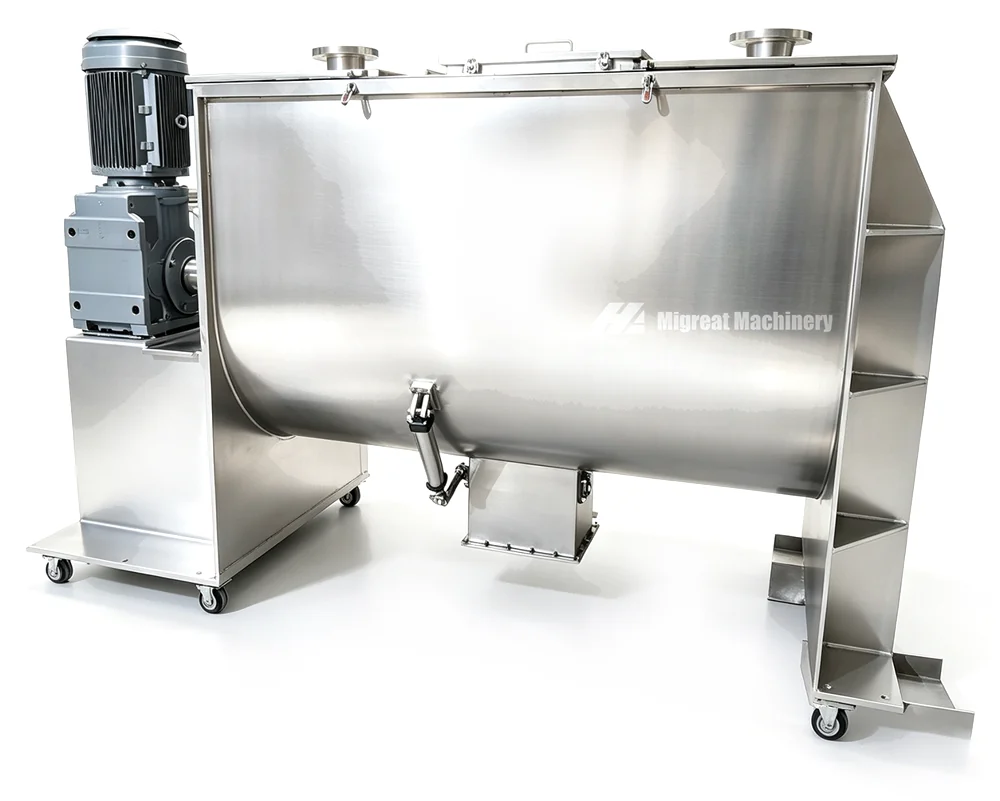

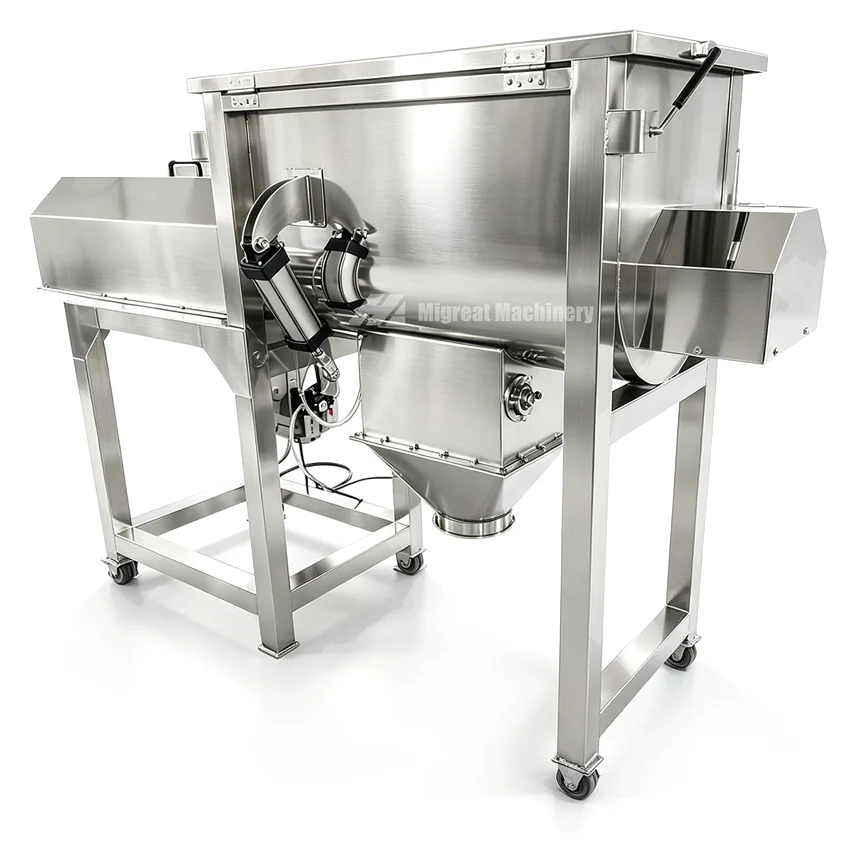

Ribbon Mixer
A horizontal double ribbon mixer (ribbon blender machine) for powder with powder, powder with liquid, and paste or thick material.
- Capacity
- 100 L to 15,000 L, 13 models
- Motor power
- 3 kW to 75 kW
- Contact material
- SUS304, 316L, carbon steel or manganese steel
- Discharge
- Manual or pneumatic butterfly valve
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
One trough, an even blend
The ribbon mixer is built for high homogeneity with little damage to fragile material. A motor and reducer turn the main shaft, and the spiral ribbons inside the trough move material in two directions until the batch is even.
Main parts are the motor, reducer, cover, trough, feed port, main shaft, ribbons, shaft seal and discharge valve.
Load
Material enters through the feed port into the U shaped trough.
Mix
Ribbons on the main shaft move material in two directions.
Discharge
A manual or pneumatic butterfly valve releases the batch.
The range in numbers
- 13Models
From WLDH-100 to WLDH-15000
- 100 to 15,000Liters
Total volume range
- 3 to 75kW
Motor power range
- 4Materials
Carbon steel, manganese steel, SUS304, 316L

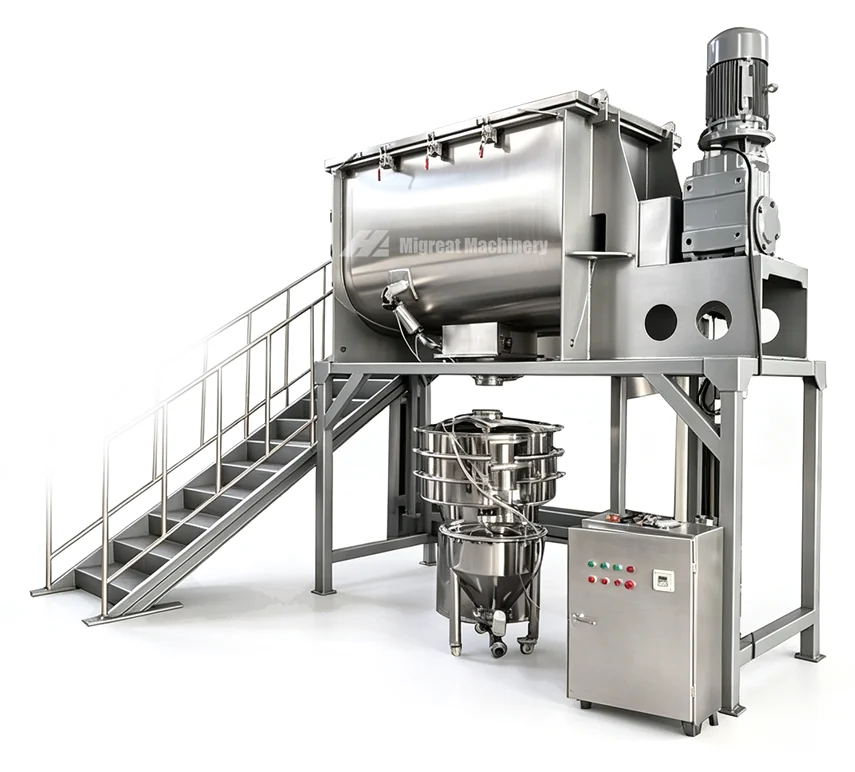

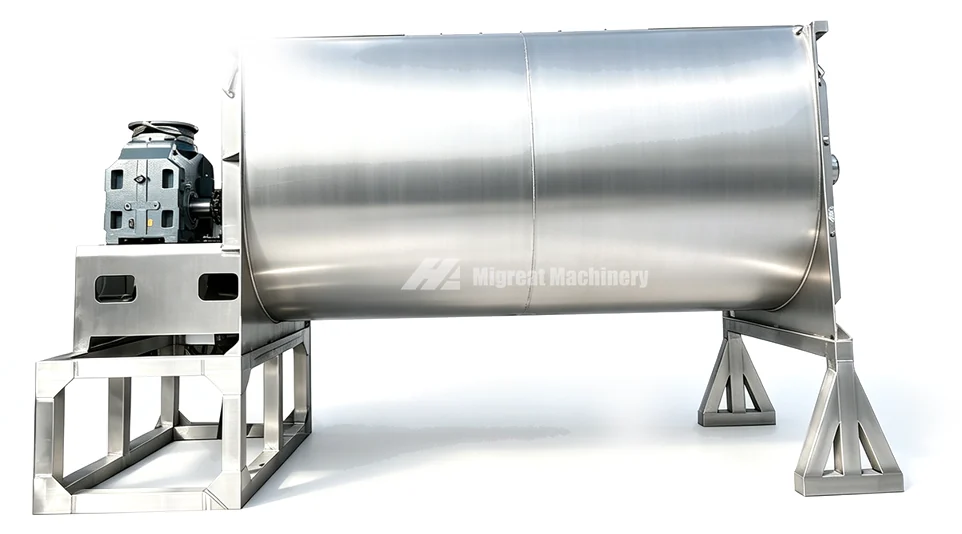

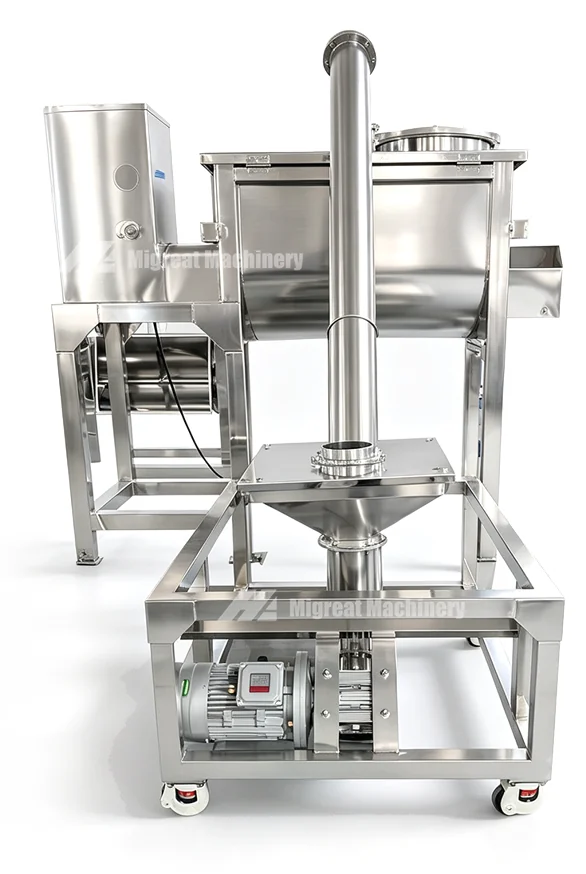

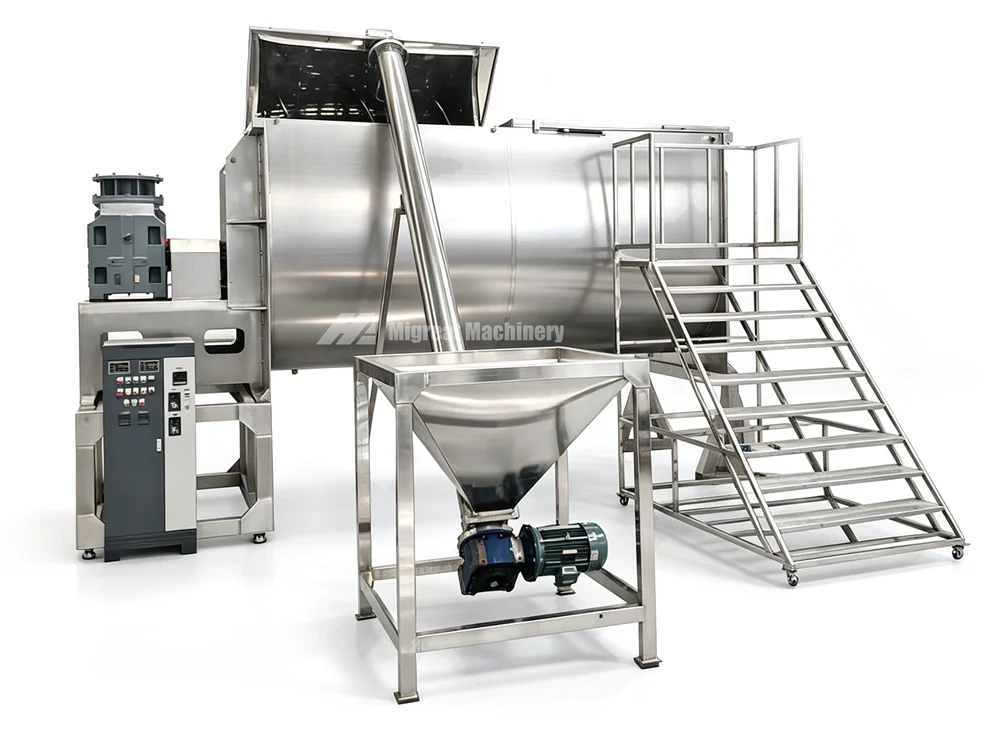

One mixer, many layouts
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Built around six key parts
Each part can be adjusted to your material, batch size and site.
Mixing agitator
Stainless steel ribbons, easy to clean.
Mixing motor
Low noise and smooth running. Speed, power and voltage are adjustable to your site.
Material outlet
Manual or pneumatic butterfly valve, chosen to suit your line.
Controller box
Controls all circuits, simple to operate and safe to use.
Movable wheels
PPS wheels turn in any direction, so the machine is easy to move.
Contact material
Carbon steel, manganese steel, SUS304 or 316L, or a combination.
Build it your way
Contact material
Carbon steel, manganese steel, SUS304 or 316L, or a combination.
Motor
Speed, power and voltage set to your site.
Discharge
Manual or pneumatic butterfly valve.
Mobility
Movable PPS wheels or a fixed frame.
Size
Total volume from 100 L up to 15,000 L, or a custom size.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by batch volume
Load coefficient is 0.4 to 0.8. Sizes are for reference and can be customized.
| Model | Total volume (L) | Power (kW) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| WLDH-100 | 100 | 3 | 2000 x 680 x 1650 | 300 |
| WLDH-300 | 300 | 3 | 2330 x 700 x 1700 | 390 |
| WLDH-500 | 500 | 5.5 | 2700 x 960 x 1750 | 650 |
| WLDH-1000 | 1000 | 7.5 | 2900 x 1000 x 1800 | 1000 |
| WLDH-1500 | 1500 | 11 | 3100 x 1150 x 1800 | 1400 |
| WLDH-2000 | 2000 | 15 | 3500 x 1200 x 1800 | 2000 |
| WLDH-3000 | 3000 | 18.5 | 4200 x 1400 x 1820 | 2500 |
| WLDH-4000 | 4000 | 22 | 5000 x 1500 x 1900 | 2900 |
| WLDH-5000 | 5000 | 22 | 5100 x 1500 x 2100 | 3500 |
| WLDH-6000 | 6000 | 37 | 5300 x 1650 x 2000 | 4300 |
| WLDH-8000 | 8000 | 45 | 6300 x 2100 x 2000 | 6500 |
| WLDH-10000 | 10000 | 55 | 7200 x 2100 x 2100 | 8500 |
| WLDH-15000 | 15000 | 75 | 8000 x 2100 x 2100 | 13000 |
Showing 7 of 13 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
Powder with powder, powder with liquid, and paste or thick material.
Milk powder, coffee powder, protein powder
Spice, flavor and seasoning
Supplement powder and additives
Putty powder, gypsum, pigment and dyes
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is a ribbon blender used for?
The WLDH ribbon mixer mixes powder with powder, powder with liquid, and paste or thick material. It is used for milk powder, coffee powder, protein powder, spice and seasoning, supplement powder, putty powder, gypsum, pigment and dyes.
How does a ribbon blender work?
A motor and reducer turn the main shaft. Material enters the U shaped trough through the feed port, and the spiral ribbons on the shaft move it in two directions until the batch is even. A manual or pneumatic butterfly valve then releases the batch.
What is the purpose of a ribbon blender?
To mix with high homogeneity and little damage to fragile material. The WLDH comes in 13 models from 100 L to 15,000 L, and the total volume can also be customized.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
