01 / 05Granulation · GHL series

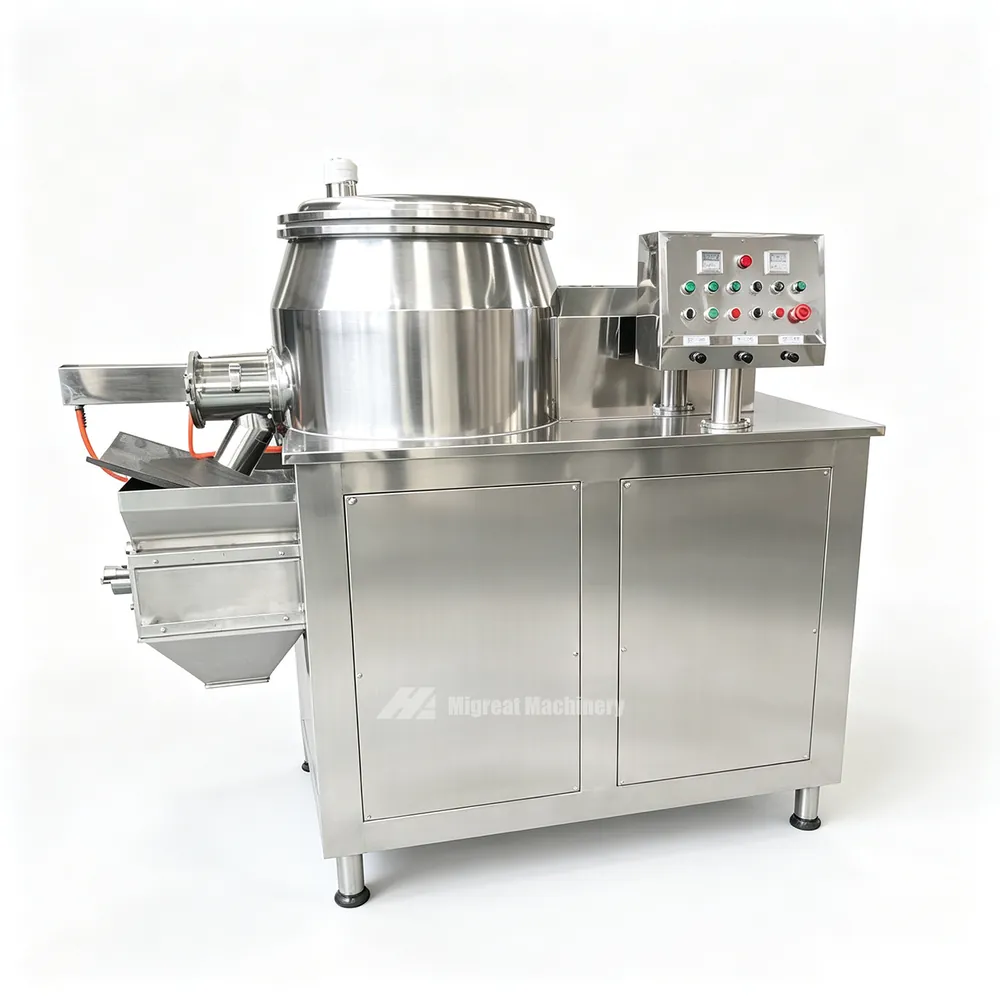

High Shear Wet Mixing Granulator
A horizontal high shear mixer granulator. It mixes dry powder, adds binder and forms granules in one cylinder.
- Volume
- 10 L to 600 L, 8 models
- Batch
- 3 kg to 300 kg
- Cycle
- Dry mix 2 min, granulate 1 to 4 min
- Granule size
- 20 to 80 mesh
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Mix and granulate in one cylinder

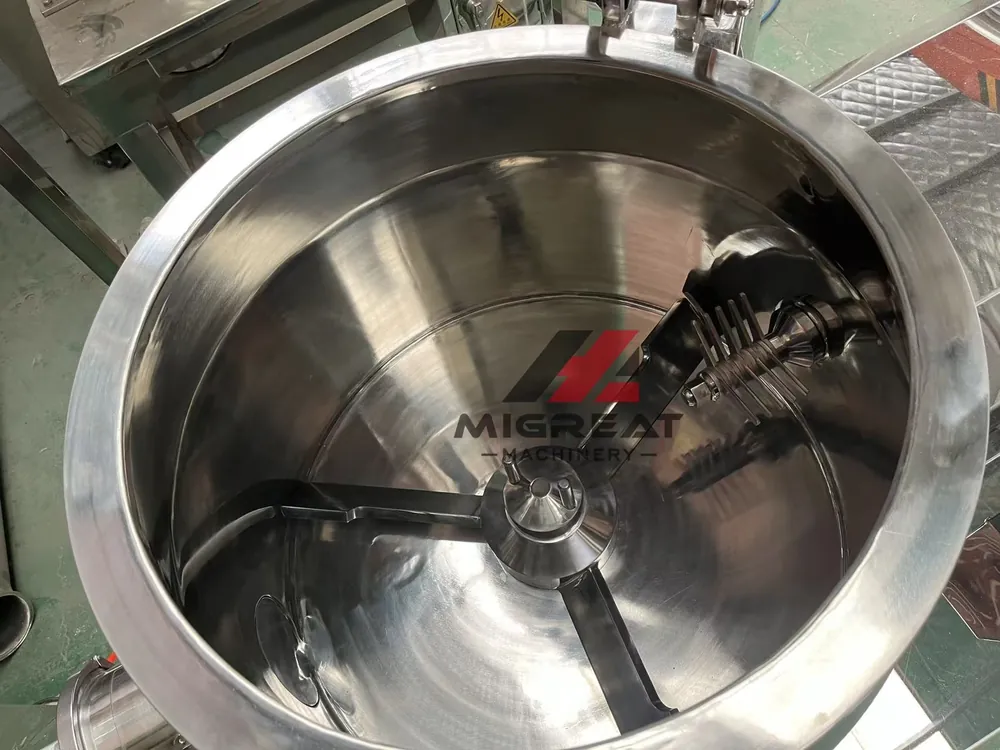

The GHL wet mixing granulator is a horizontal cylinder machine for pharmaceutical, food and chemical powder. A mixing paddle and a cutter work together to make granules after the binder is added.
Compared with a traditional process it uses about 25 percent less binder and works 4 to 5 times faster.
Dry mix
Powder is mixed for about 2 minutes.
Add binder
Binder is added while the paddle and cutter turn.
Granulate
Granules form in 1 to 4 minutes and are discharged.
The range in numbers
- 8Models
From GHL-10 to GHL-600
- 3 to 300kg
Per batch
- 4 to 5 timesEfficiency
Versus traditional process
- 25%Less binder
Than traditional process
More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Less binder, fewer steps
An air filled seal protects the shaft.
One cylinder
Mixing and granulating happen in a single horizontal cylinder.
Air sealed shaft
An air filled shaft seal keeps powder out of the bearing.
Less binder
About 25 percent less binder than the traditional process.
Short cycle
Dry mixing takes 2 minutes and granulating takes 1 to 4 minutes.
High efficiency
4 to 5 times the efficiency of the traditional process.
Even granule
Granule size is 20 to 80 mesh.
Build it your way
Size
Eight models from 10 L to 600 L.
Power
Two speeds for blending and cutting.
Granule size
20 to 80 mesh.
Control
Options to suit your line.
GMP
The machine meets GMP requirements.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by batch size
Cutting speed is 1440 / 2900 r/min and working time is 8 to 15 minutes on all models. Values with a slash are low / high speed.
| Model | Volume (L) | Capacity (kg/batch) | Blending speed (r/min) | Blending power (kW) | Cutting power (kW) |
|---|---|---|---|---|---|
| GHL-10 | 10 | 3 | 300 / 210 | 1.5 / 2.2 | 0.85 / 1.1 |
| GHL-50 | 50 | 15 | 300 / 210 | 4 / 5.5 | 1.5 / 2.2 |
| GHL-150 | 150 | 50 | 270 / 180 | 9 / 11 | 2.4 / 3 |
| GHL-200 | 200 | 80 | 270 / 180 | 11 / 14 | 3.3 / 4 |
| GHL-250 | 250 | 100 | 188 / 130 | 11 / 14 | 3.3 / 4 |
| GHL-300 | 300 | 130 | 160 / 110 | 11 / 14 | 4.5 / 5.5 |
| GHL-400 | 400 | 200 | 120 / 85 | 15 / 17 | 6.5 / 8 |
| GHL-600 | 600 | 300 | 120 / 80 | 22 / 30 | 9 / 11 |
Showing 7 of 8 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It makes granules from powder in pharmaceutical, food and chemical plants.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is a rapid mixer granulator?
It is a machine that mixes dry powder, takes the binder and forms granules in one cylinder. The GHL is a horizontal high shear version of it for pharmaceutical, food and chemical powder.
What is the principle of RMG?
A mixing paddle and a cutter work together in a horizontal cylinder. Powder is dry mixed for about 2 minutes, binder is added while the paddle and cutter turn, and granules form in 1 to 4 minutes before discharge.
What is the purpose of a granulator machine?
A granulator makes granules from powder. The GHL does this for pharmaceutical, food and chemical powder, and the granules come out at 20 to 80 mesh. Compared with a traditional process it uses about 25 percent less binder and works 4 to 5 times faster.
What is the speed of the impeller in a rapid mixer granulator?
On the GHL the blending speed runs from 120 to 300 r/min depending on the model, and each model has a low and a high speed. The cutter turns at 1440 or 2900 r/min. The full table is on the page.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Inquiry
Not sure which granulator fits?
Tell us your material and the granule size you need. We reply with a suitable model.
