01 / 05Mixing · SYH series

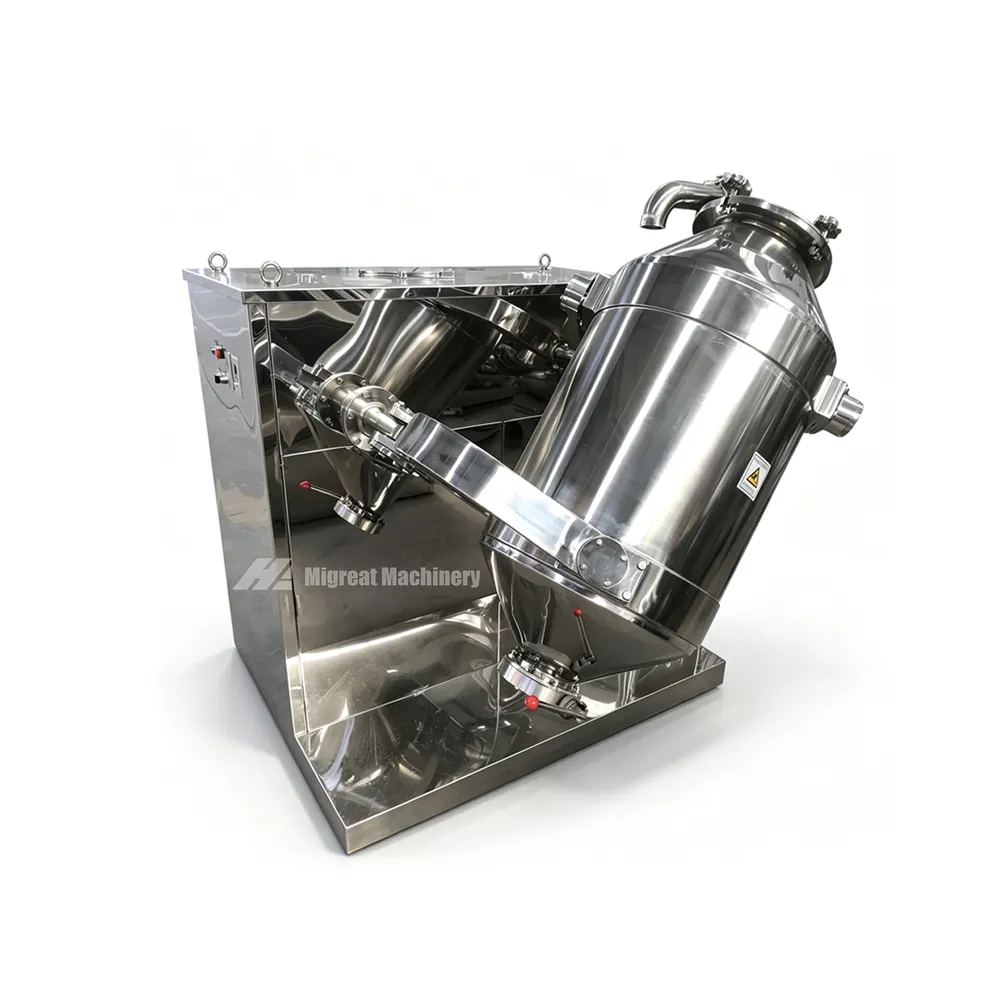

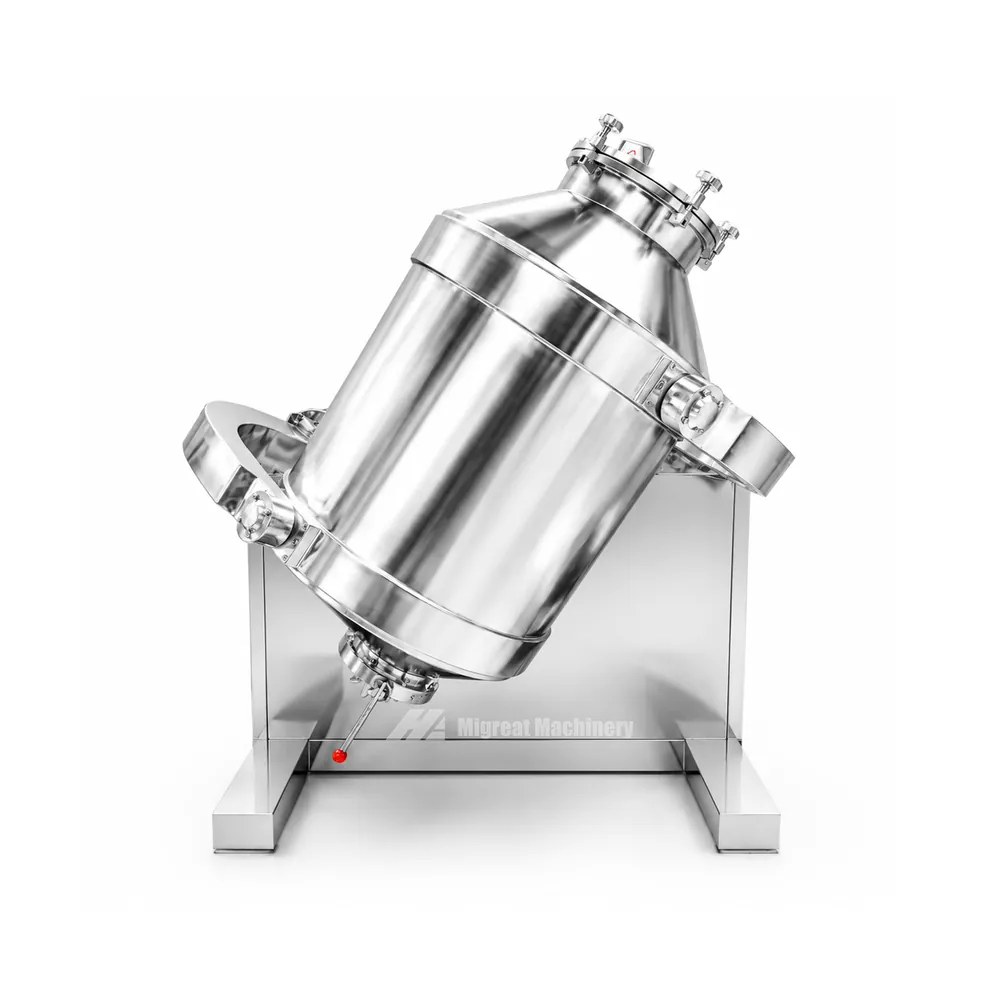

3D Mixer
A 3D mixer with three-dimensional motion that blends powders of different density and particle size quickly and evenly.
- Barrel volume
- 10 L to 1,500 L, 8 models
- Max loading
- 5 to 750 kg
- Mixing speed
- 0 to 30 rpm
- Power
- 0.37 kW to 15 kW
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Three motions, no settling
The SYH 3D mixer is used for pharmacy, chemical, food and other powder materials of different granule size and gravity. Because the motion is three-dimensional, it mixes powders of different density more evenly and avoids high density powder settling at the bottom.
It runs smoothly with low noise, high loading quantity and short mixing time.
Swing, move, roll
The cylinder carries out swing, parallel moving and rolling at the same time, driven by the main axis.
Pulse movement
A strong pulse movement pushes the material forward in circular, radial and axial directions.
Even mix
Changeable vortex movement mixes different materials uniformly.
The range in numbers
- 8Models
From SYH-10 to SYH-1500
- 10 to 1,500L
Barrel volume
- 0 to 30rpm
Mixing speed
- 80%Loading
Max loading volume to barrel volume
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Built on a frequency drive, smooth and quiet

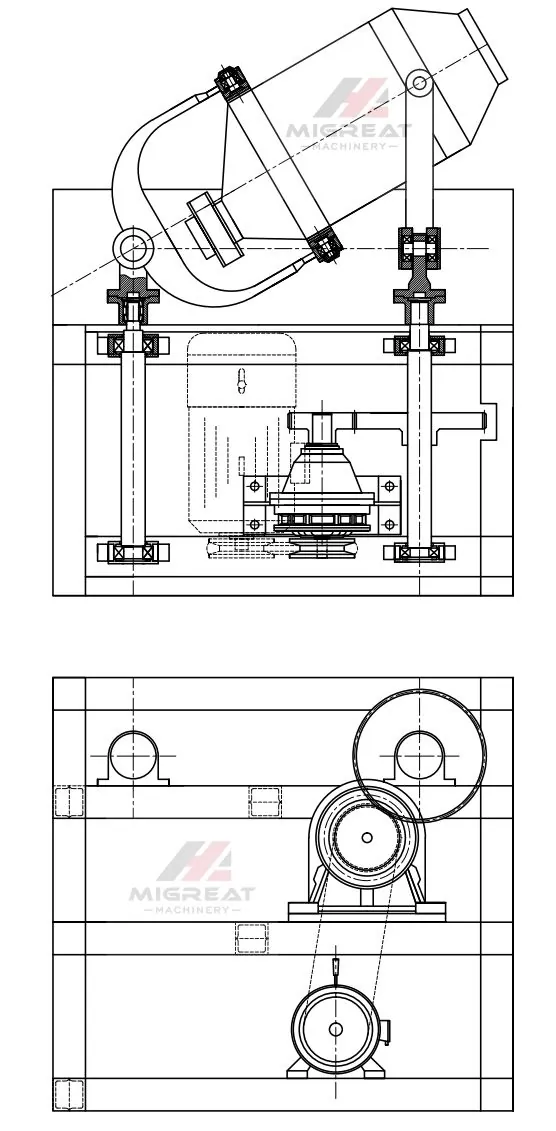

The machine has a base, frequency change motor, main axis, rotor and cylinder.
Three-dimensional motion
Powders of different density mix evenly and do not settle.
Short mixing time
Strong pulse movement mixes quickly.
High loading
Maximum loading is 80 percent of barrel volume.
Smooth, low noise
Smooth running with low noise.
Variable speed
A frequency change motor with an inverter sets the speed from 0 to 30 rpm.

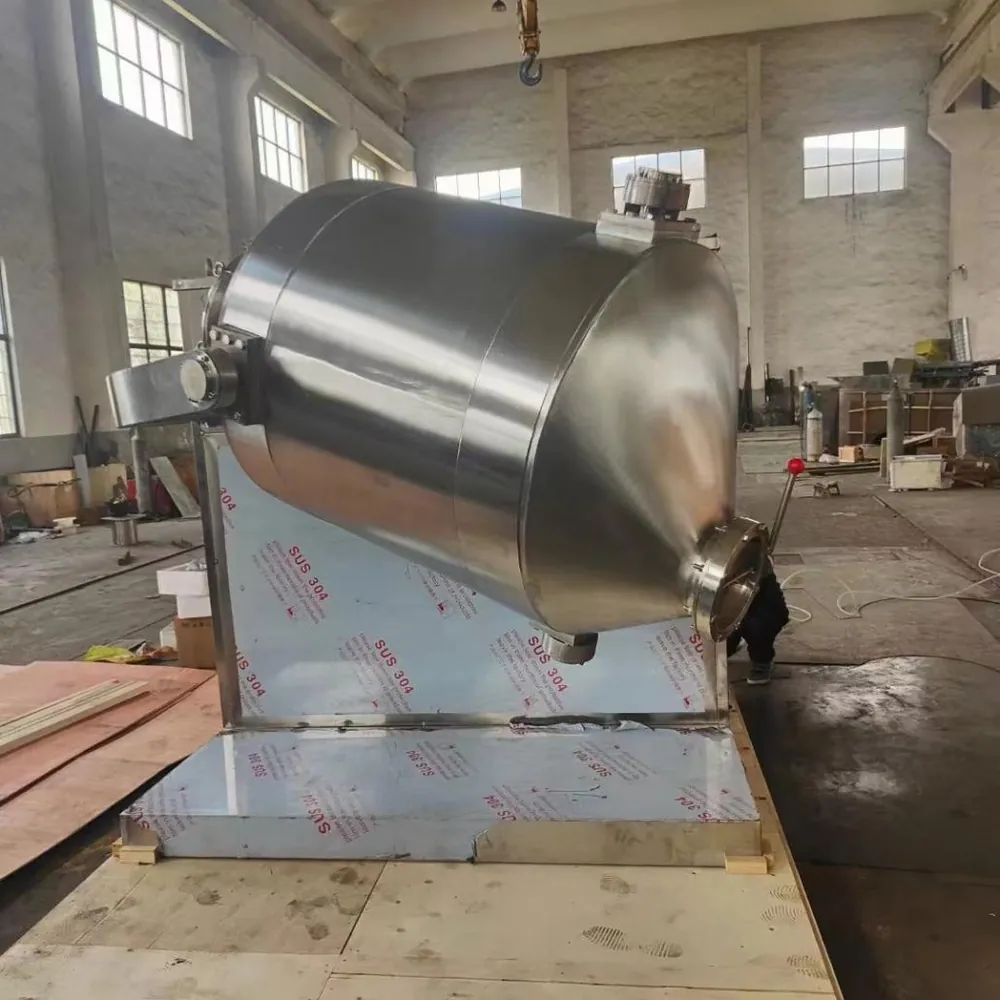

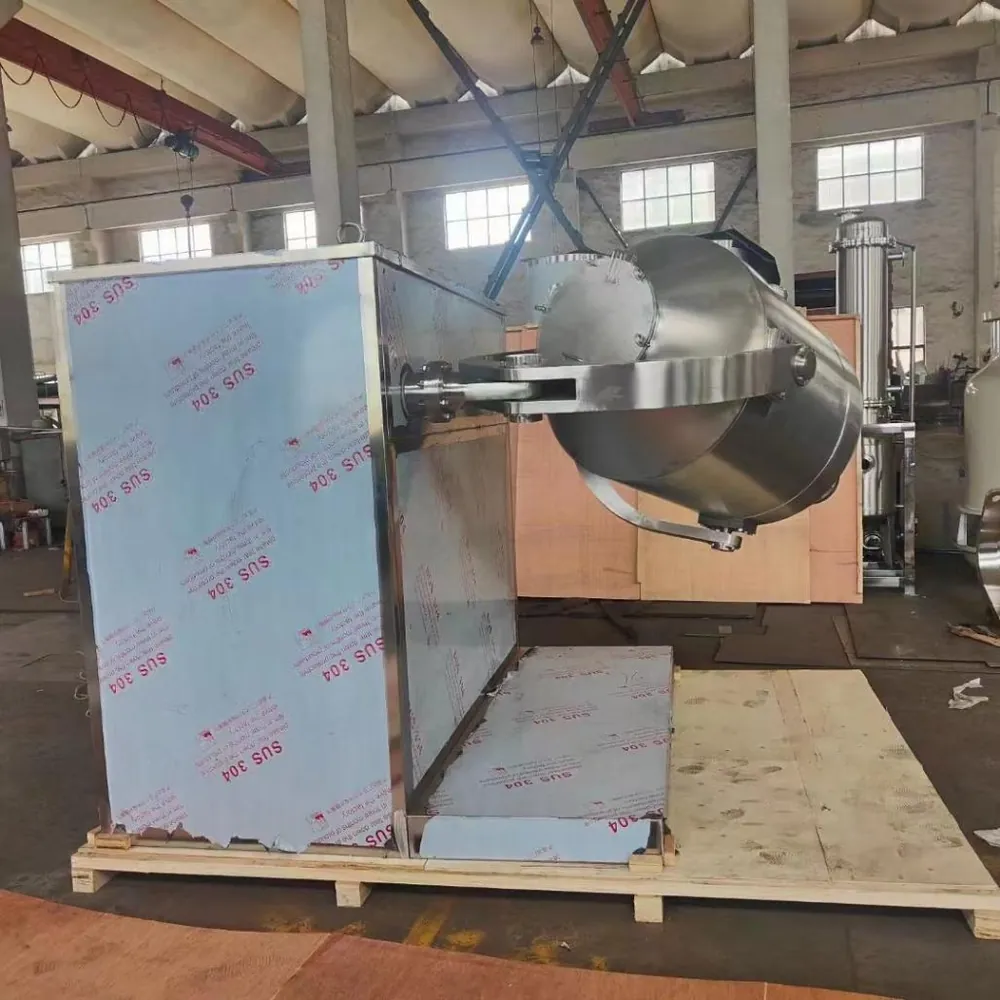

Stainless steel
SUS304 cylinder and frame sealing plate.
Build it your way
Size
Eight models from 10 L to 1,500 L.
Speed
Variable, 0 to 30 rpm.
Discharge
SUS304 discharge valve.
Material
SUS304 cylinder.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by volume
Maximum loading weight is for reference and depends on material density.
| Model | Barrel volume (L) | Max loading volume (L) | Max loading weight (kg) | Mixing speed (rpm) | Power (kW) | Overall size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SYH-10 | 10 | 8 | 5 | 0-30 | 0.37 | 1200 x 500 x 700 | 150 |
| SYH-50 | 50 | 40 | 25 | 0-30 | 1.1 | 1400 x 600 x 900 | 300 |
| SYH-100 | 100 | 80 | 50 | 0-30 | 1.5 | 1600 x 1300 x 1200 | 500 |
| SYH-200 | 200 | 160 | 100 | 0-30 | 2.2 | 1800 x 1500 x 1500 | 800 |
| SYH-400 | 400 | 320 | 200 | 0-30 | 4 | 2000 x 1800 x 1800 | 1200 |
| SYH-600 | 600 | 480 | 300 | 0-30 | 5.5 | 2500 x 2000 x 2100 | 1500 |
| SYH-800 | 800 | 640 | 400 | 0-30 | 7.5 | 2800 x 2200 x 2250 | 2000 |
| SYH-1500 | 1500 | 1200 | 750 | 0-30 | 15 | 3000 x 2400 x 2350 | 2500 |
Showing 7 of 8 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It mixes powders in pharmacy, chemical and food industries, including materials of different granule size and gravity.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is a 3D blender used for?
The SYH 3D mixer is used for pharmacy, chemical, food and other powder materials of different granule size and gravity. Because the motion is three-dimensional, high density powder does not settle at the bottom.
Can you explain how mixers work?
In the SYH the cylinder swings, moves in parallel and rolls at the same time, driven by the main axis. A strong pulse movement pushes the material forward in circular, radial and axial directions, and a changeable vortex mixes different materials evenly.
What is 3 dimensional movement?
On the SYH it means the cylinder swings, moves in parallel and rolls at the same time. That motion mixes powders of different density more evenly, with a short mixing time and low noise.
