01 / 05Grinding · GFS series

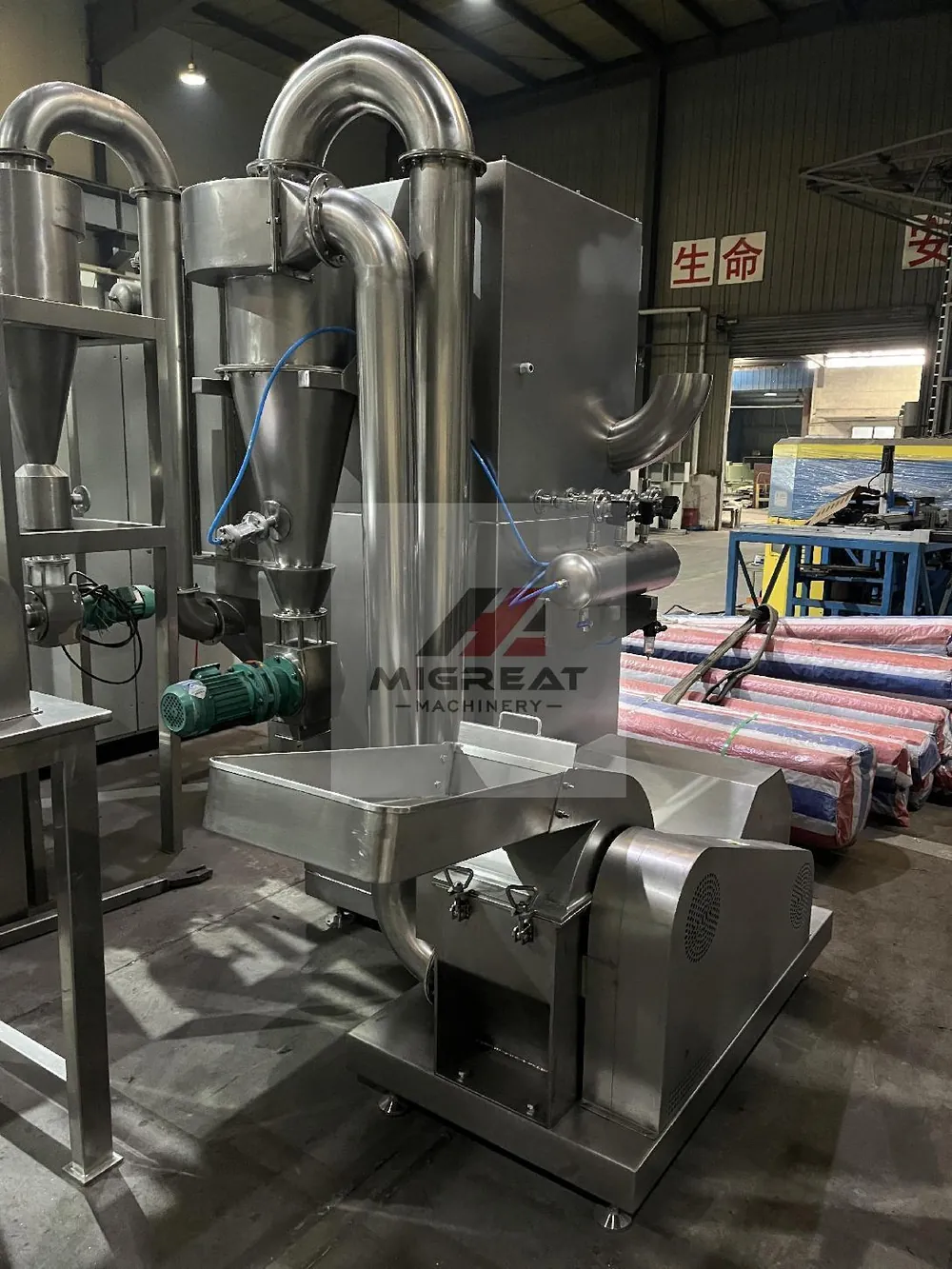

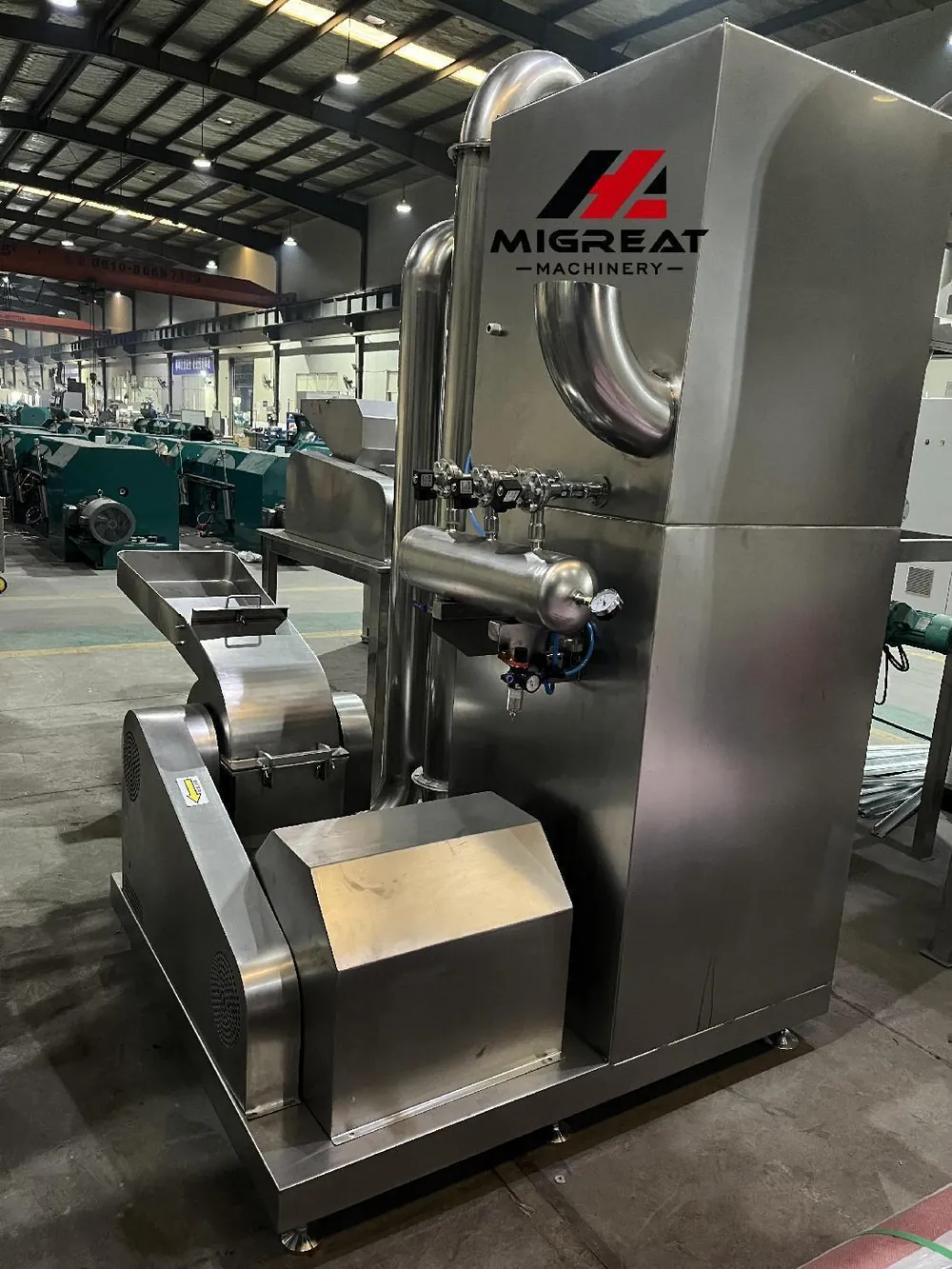

Hammer Mill with Dust Collector
A hammer mill for spices and herbs with a pulse dust collector and cyclone discharge, so no dust gets into the air.
- Capacity
- 10 to 300 kg/h, 2 models
- Crush size
- 5 to 100 mesh
- Grinding motor
- 4 kW or 11 kW
- Dust control
- Pulse collector and cyclone
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Spice grinding without dust in the air
This GFS hammer mill adds a pulse collector and a cyclone discharge part. There is no dust in the air while it works, and the discharge is continuous.
It is especially suited to spices and herbs. With stimulating flavors, the dust removal system keeps dust from flying into the air.
Cut

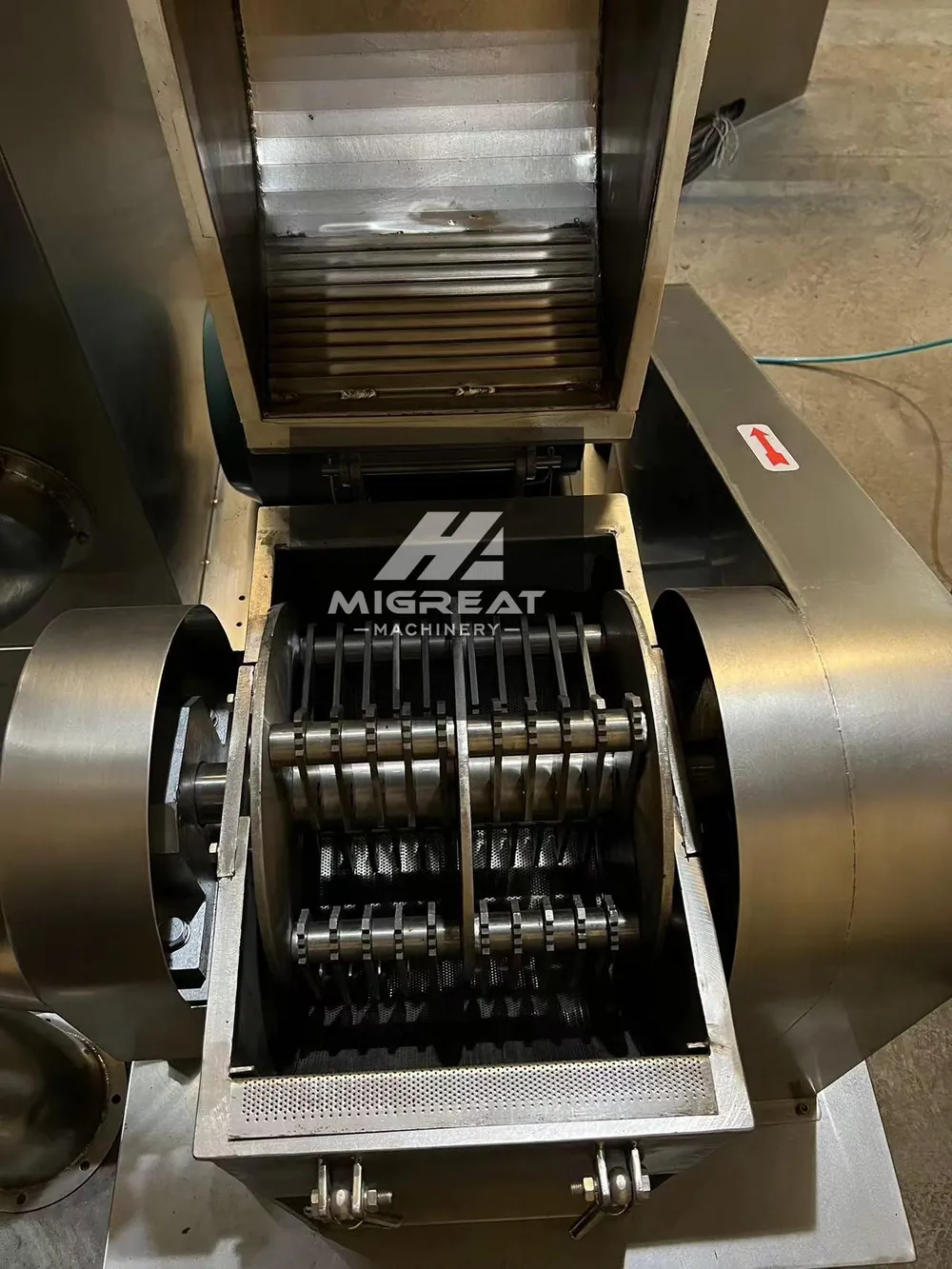

The hammer blades crush the raw material at high speed.
Screen
Powder passes through the screen. Screens run from 10 to 100 mesh.
Collect

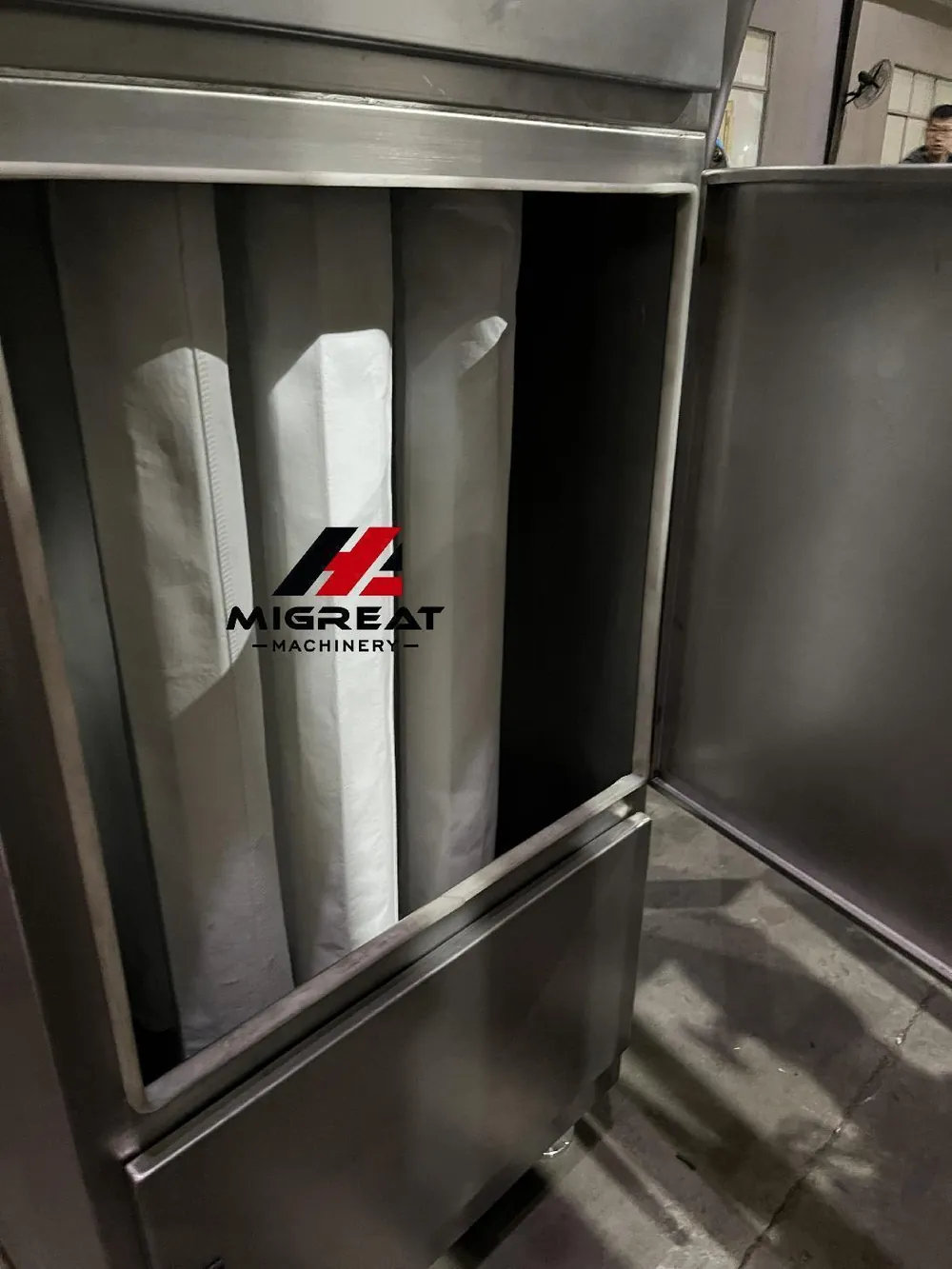

The cyclone discharges the powder. The pulse collector holds the dust.
The range in numbers
- 2Models
GFS-80 and GFS-200
- 10 to 300kg/h
Capacity range
- 5 to 100Mesh
Crush size
- 3Motors
Grinding, discharge and fan
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Clean air, continuous discharge
The set adds dust removal to the standard GFS hammer mill.
No dust in the air
The pulse collector and cyclone discharge stop dust from escaping while the mill works.
Continuous discharge
The cyclone discharges powder continuously.
Strong flavor materials
The dust removal system keeps stimulating dust out of the air.
Replaceable screens
Change the screen from 10 to 100 mesh for a different fineness.
Cooling option
Add a cold air fan for heat sensitive material.
Easy to clean
Simple structure, easy to install, take apart and clean.
Build it your way
Fineness
Screens of 10, 20, 40, 60, 80 and 100 mesh.
Cooling
Cold air fan for heat sensitive material.
Motors
Three motors for grinding, discharge and fan, set by model.
Contact material
SS304.
Size
Two models, GFS-80 and GFS-200.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
Both models carry three motors.

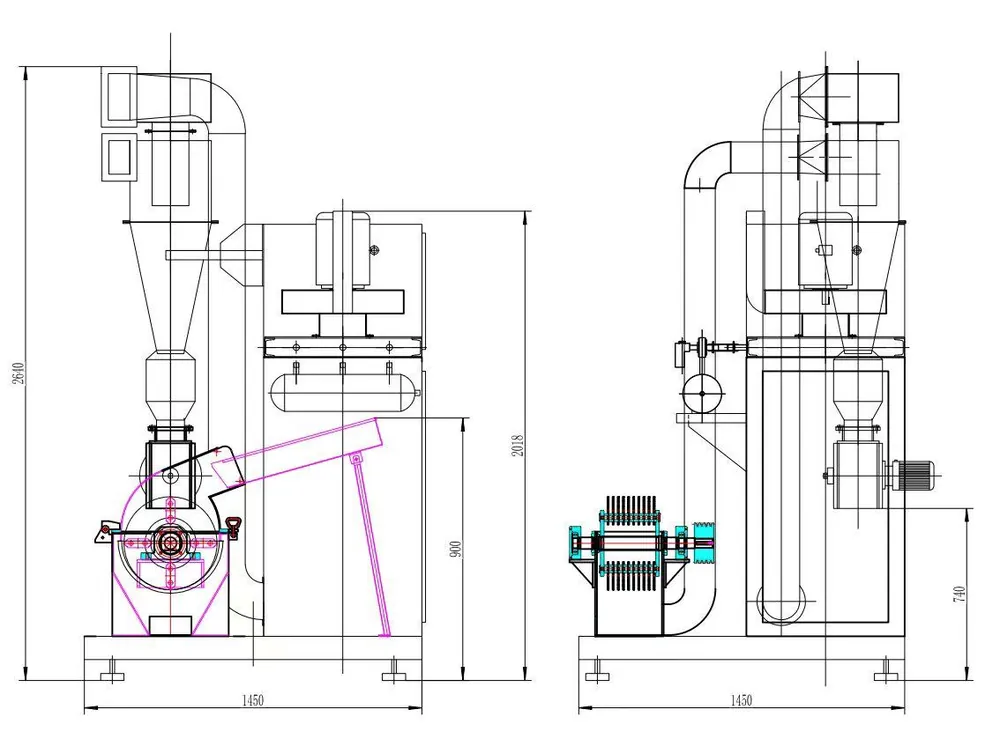

| Model | Capacity (kg/h) | Feed size (mm) | Crush size (mesh) | Grinding motor (kW) | Discharge motor (kW) | Fan motor (kW) | Main speed (rpm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| GFS-80 | 10-100 | ≤25 | 5-100 | 4 | 0.75 | 2.2 | 4000 | 1400 x 1300 x 2000 | 400 |
| GFS-200 | 50-300 | ≤25 | 5-100 | 11 | 0.75 | 4 | 3800 | 1500 x 1400 x 2000 | 550 |
Showing 2 of 2 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It suits dusty and strongly flavored spices and herbs.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
Do dust collectors actually work?
On this mill they do the job they are built for. The pulse collector and the cyclone discharge stop dust from escaping while the mill works. The cyclone discharges the powder and the pulse collector holds the dust.
What is the main purpose of a hammer mill?
A hammer mill crushes large pieces of material into powder. This GFS version is for spices and herbs, and it adds the dust collector so no dust gets into the air.
What are the advantages and disadvantages of a hammer mill?
This version keeps dust out of the air, discharges continuously and takes replaceable screens from 10 to 100 mesh. Capacity depends on the material and the screen you fit, and the two models, GFS-80 and GFS-200, cover 10 to 300 kg/h.
What is the working principle of a hammer mill?
The hammer blades crush the raw material at high speed, and the powder passes through a screen. On this version a cyclone then discharges the powder and a pulse collector holds the dust.
