01 / 05Drying · KJG series

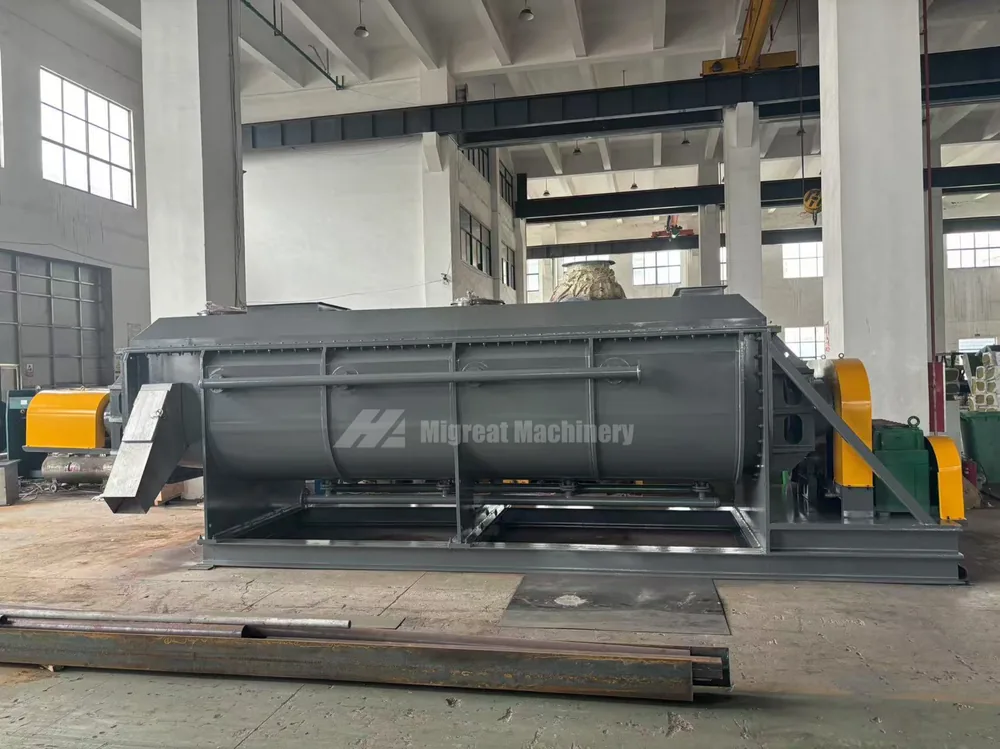

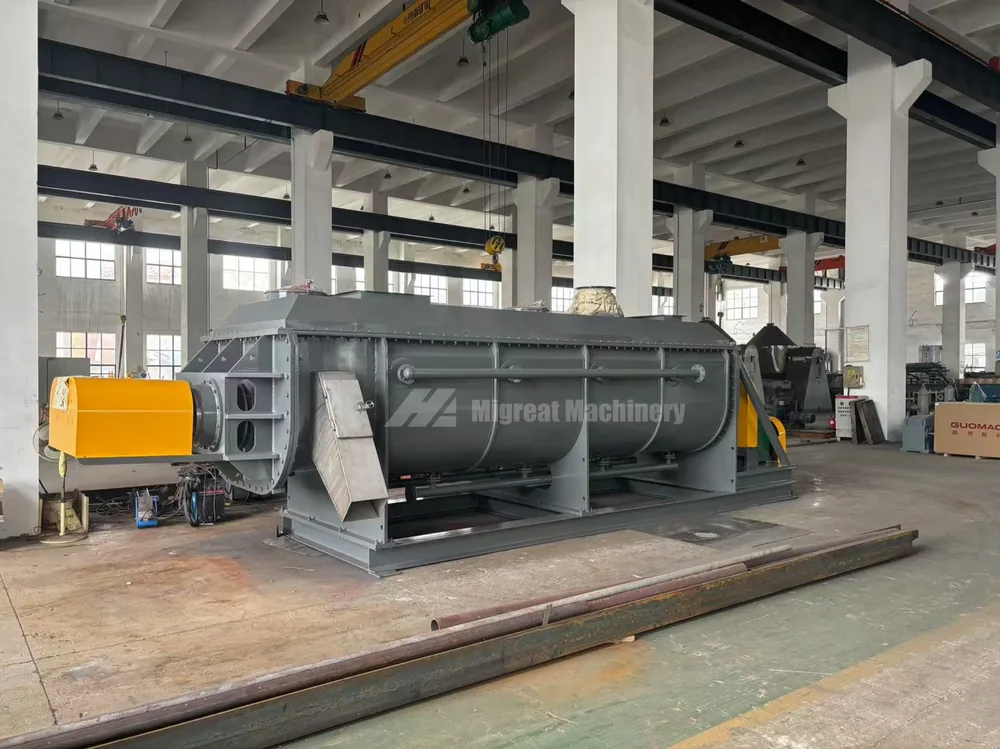

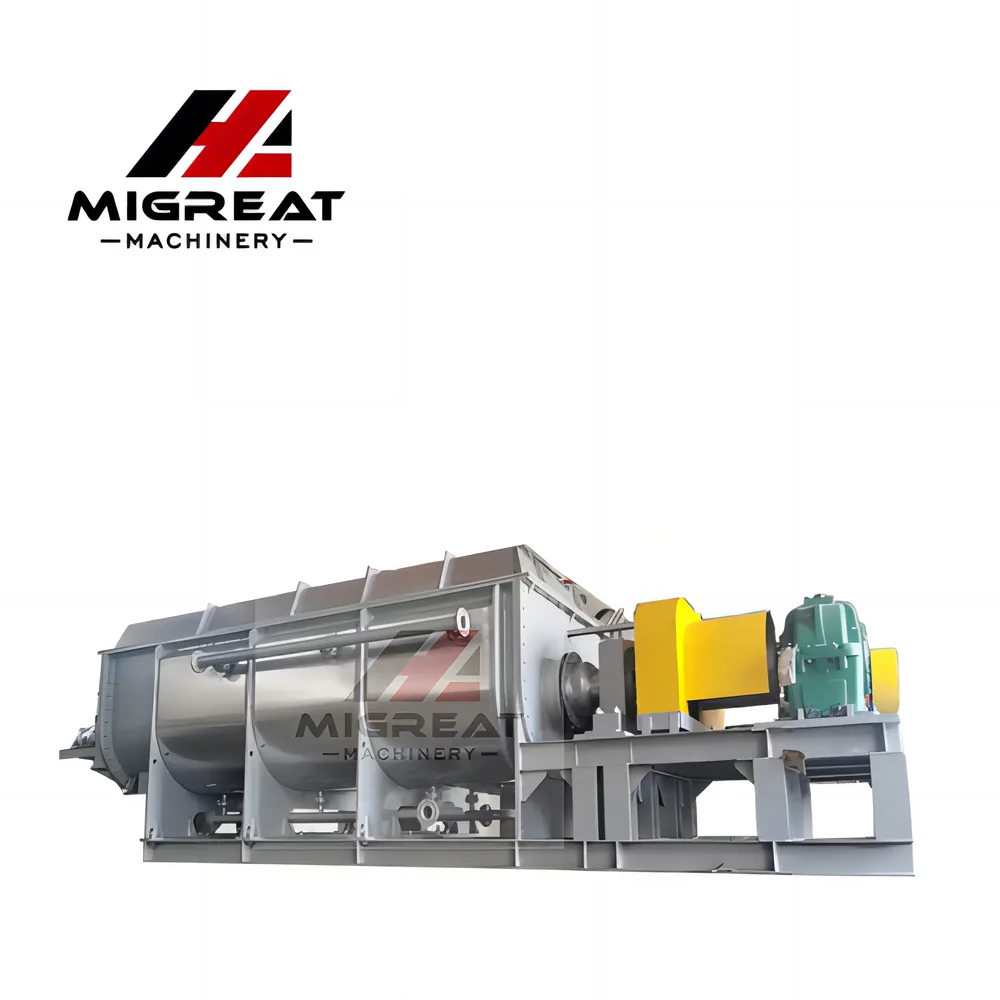

Hollow Blade Dryer
A paddle dryer with indirect heating, for paste, granule, powder and slurry. Wedge-shaped hollow blades carry the heating or cooling medium.
- Heat transfer area
- 3 m² to 110 m², 9 models
- Effective volume
- 0.06 m³ to 9.46 m³
- Rotation
- 5 to 30 rpm
- Power
- 2.2 kW to 95 kW
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Large heat area in a small body
The KJG hollow blade dryer indirectly heats or cools paste, granule, powder and slurry. It can complete drying, cooling, heating, sterilizing, reacting and low temperature combustion.

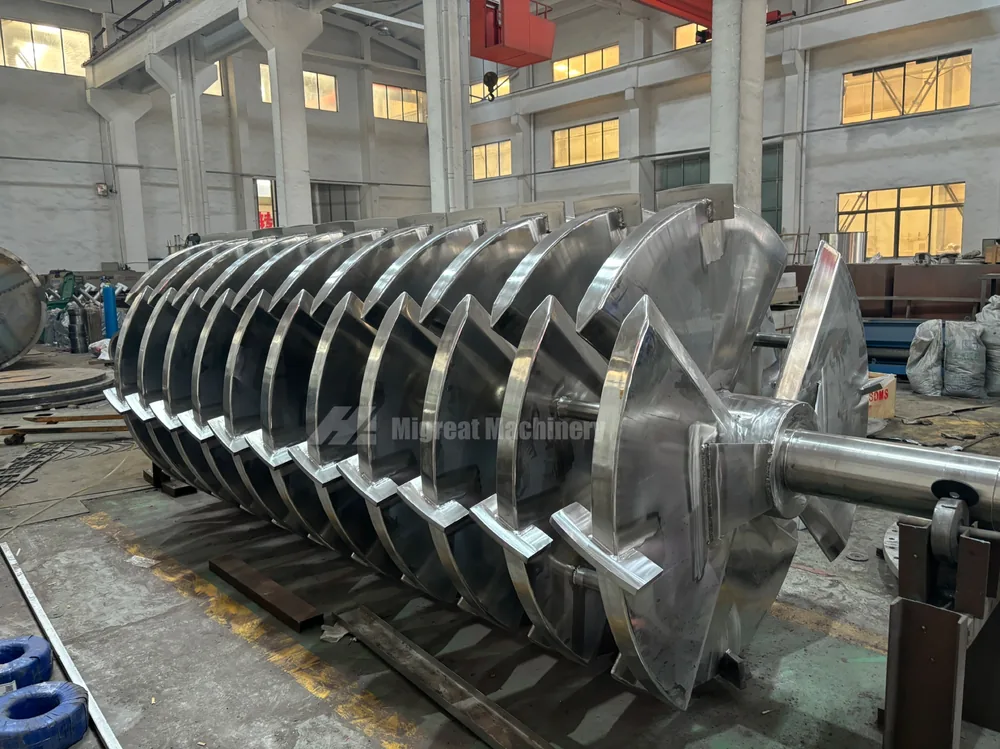

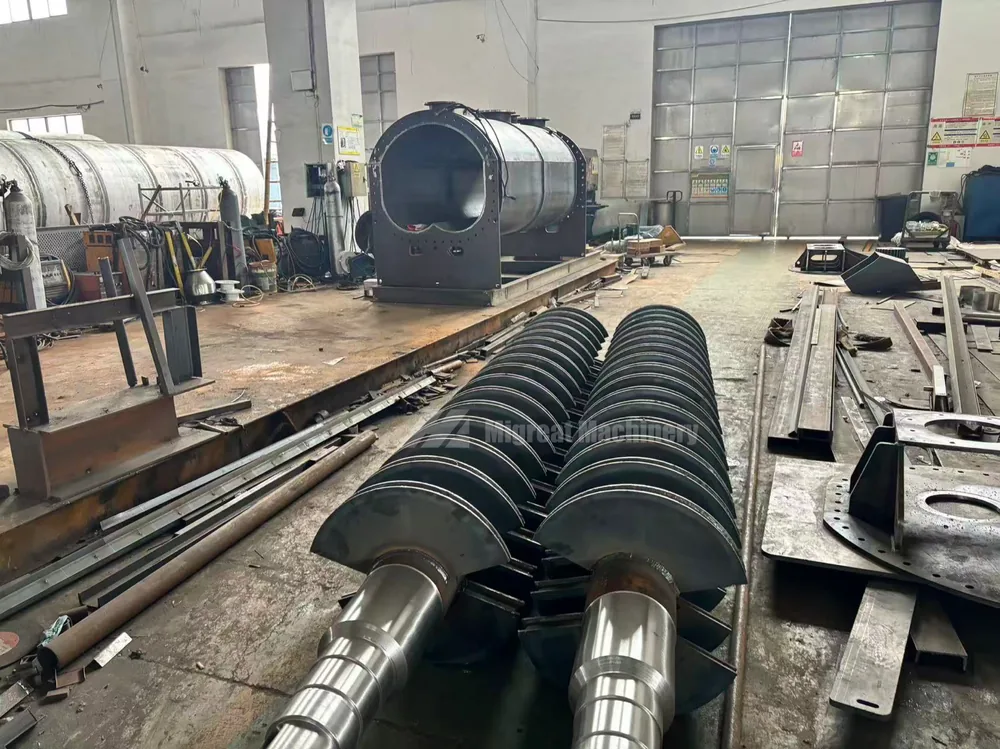

Wedge-shaped hollow blades are densely arranged on a hollow shaft, and the heating or cooling medium flows through them. The wedge surface cleans itself as the material moves across it.
Heat
The medium flows through the hollow shaft and blades. The medium temperature can run from -40 ℃ to 320 ℃.
Stir
The blades push and release the material, so it keeps contact with the heat transfer surface.
Self-clean
The sliding material scrubs the wedge surface, so the heat transfer surface stays clean.
The range in numbers
- 9Models
From KJG-3 to KJG-110
- 3 to 110m²
Heat transfer area
- 0.06 to 9.46m³
Effective volume
- -40 to 320℃
Heat medium temperature
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Little heat lost, steady running
Indirect heating needs no carrying air, so little heat is lost.
Low energy use
Indirect heating needs no large flow of carrying air. With the insulated shell, evaporating 1 kg of water from slurry needs only 1.2 kg of steam.
Compact
The heat transfer surface per unit volume is large, which shortens the processing time and reduces the size of the equipment.
Fits many materials
Different heat media suit heat-sensitive material and material that needs high temperature. Common media are steam, thermal oil, hot water and cooling water.
Continuous or batch
It can run continuously or intermittently.
Clean running
No carrying air means very little dust is carried out. A closed loop can be used for contaminated material or solvent recovery.
Low wear
Wear is low and upkeep is cheap, because the wedge blades compress and expand the material as they stir.
Build it your way
Size
Nine models from KJG-3 to KJG-110.
Heat medium
Steam, thermal oil, hot water or cooling water.
Operation
Continuous or intermittent.
Closed loop
For contaminated material or solvent recovery.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by heat transfer area
Pick the model from the heat transfer area and effective volume you need.
| Model | Heat transfer area (m²) | Effective volume (m³) | Rotation (rpm) | Power (kW) | Dimensions (mm) | Inner cavity size (mm) |
|---|---|---|---|---|---|---|
| KJG-3 | 3 | 0.06 | 15-30 | 2.2 | 736 x 2972 x 762 | 306 x 1956 x 380 |
| KJG-13 | 13 | 0.59 | 10-25 | 5.5 | 1066 x 5486 x 1092 | 762 x 3048 x 534 |
| KJG-18 | 18 | 1.09 | 10-20 | 7.5 | 1320 x 5918 x 1270 | 940 x 3328 x 610 |
| KJG-29 | 29 | 1.85 | 10-20 | 11 | 1474 x 6808 x 1524 | 1118 x 4114 x 762 |
| KJG-41 | 41 | 2.8 | 10-20 | 15 | 1676 x 7570 x 1778 | 1296 x 4724 x 915 |
| KJG-52 | 52 | 3.96 | 10-20 | 30 | 1854 x 8306 x 2032 | 1476 x 5258 x 1066 |
| KJG-68 | 68 | 5.21 | 10-20 | 45 | 2134 x 9296 x 2362 | 1652 x 5842 x 1220 |
| KJG-81 | 81 | 6.43 | 5-15 | 55 | 2186 x 9678 x 2464 | 1828 x 6020 x 1220 |
| KJG-110 | 110 | 9.46 | 5-10 | 95 | 2668 x 9880 x 2668 | 2210 x 6122 x 1220 |
Showing 7 of 9 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It heats, cools and dries paste, granule, powder and slurry.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is a paddle dryer?
The KJG hollow blade dryer is a paddle dryer with indirect heating, for paste, granule, powder and slurry. Wedge-shaped hollow blades carry the heating or cooling medium.
How does a paddle dryer work?
The medium flows through the hollow shaft and blades, with a temperature from -40 to 320 °C. The blades push and release the material so it keeps contact with the heat transfer surface, and the sliding material scrubs the wedge surface clean.
Which type of dryer is best?
It depends on the material. The KJG suits paste, granule, powder and slurry, and indirect heating needs no carrying air. Evaporating 1 kg of water from slurry needs only 1.2 kg of steam. For other material, see our eleven dryer types.
