01 / 05Grinding · WF series
WF Universal Grinder
A compact universal grinder with a toothed disc and fixed knife. Change the screen to change the fineness.
- Capacity
- 50 to 600 kg/h, 6 models
- Crush size
- 20 to 120 mesh
- Motor
- 4 kW to 37 kW
- Design
- GMP, stainless steel
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Compact, screen controlled
The WF universal grinder crushes dry material straight into powder. Fineness is set by replacing screens of 20, 40, 60, 80, 100 or 120 mesh.
It takes up little floor space. It has no dust collector and no cyclone discharge, so it cannot work continuously and suits small capacity processing.
Impact

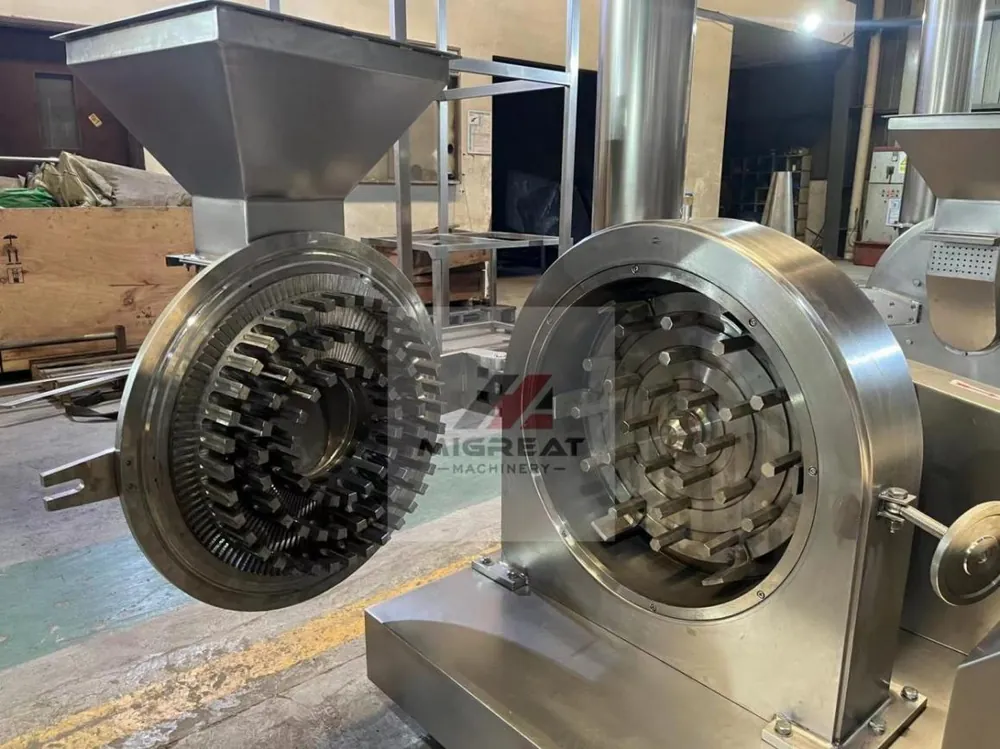

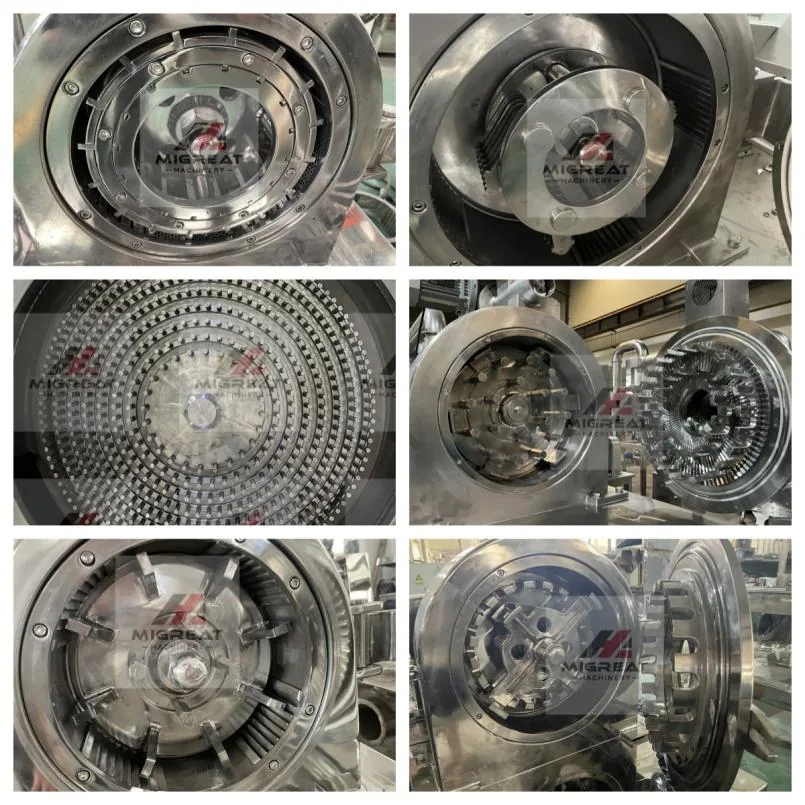

The toothed disc rotating knife and the fixed knife crush the material by impact and shear.
Airflow
Strong airflow made by the crushing carries the heat and the finished product out through the screen.
Capture
Crushed material goes into the capture bag by centrifugal force, and the dust is filtered by a bag filter box.
The range in numbers
- 6Models
From WF-20B to WF-80B
- 20 to 120Mesh
Crush size
- 4 to 37kW
Grinding motor
- 200 to 1,500kg
Machine weight

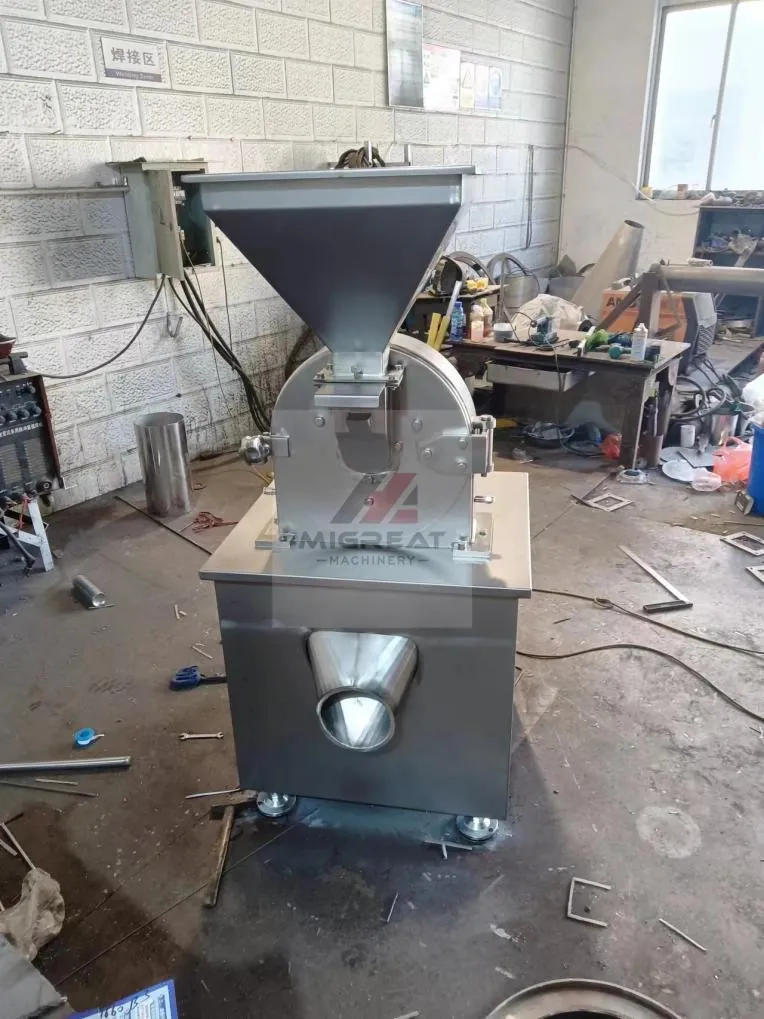

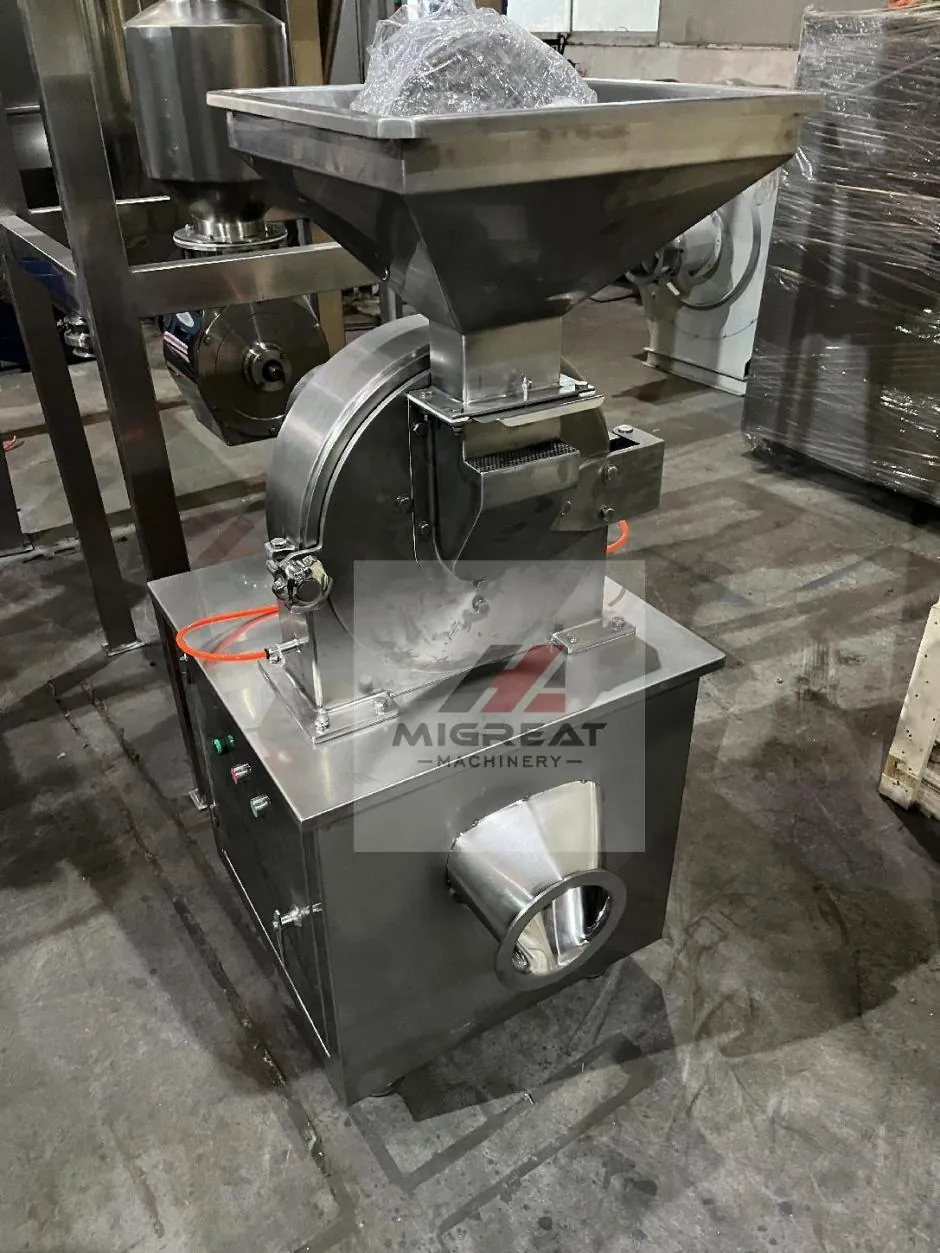

More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Small footprint, easy to adjust
The machine is designed to GMP standard and is wholly made of stainless steel.
Small floor space
It takes up little floor space.

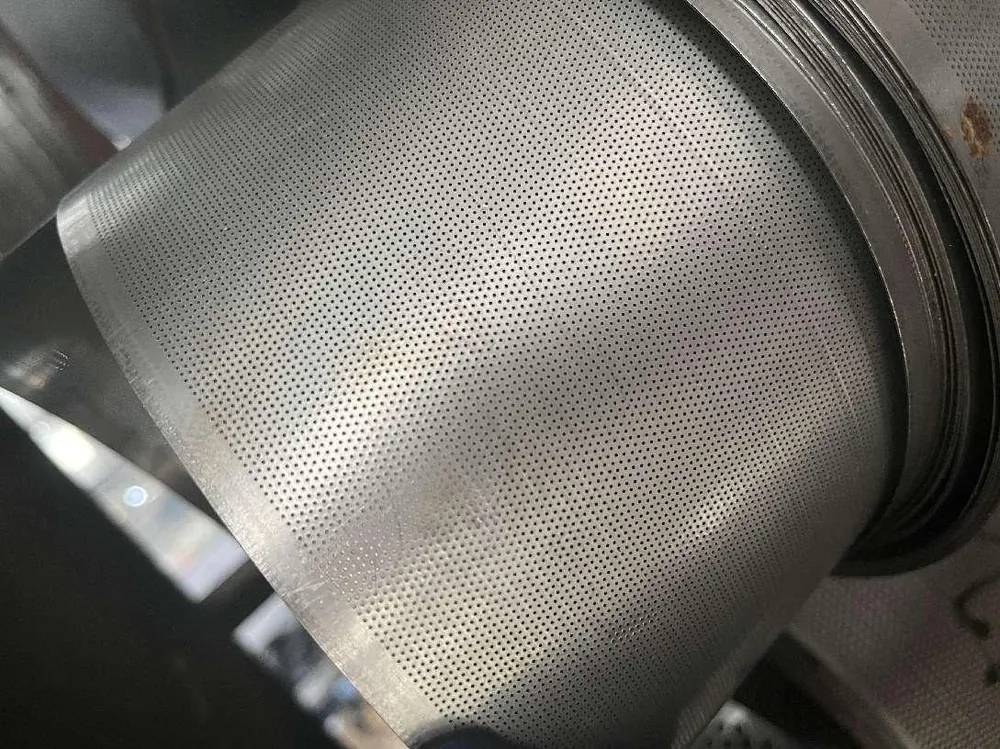

Screen sets fineness
Replace the screen to get a different fineness.
Different blades
It matches a pin blade, a turbine blade, and other blades.
Water cooling
A bearing water cooling jacket and a grinding chamber water cooling jacket are fitted.
Magnet option
A magnetic device can be installed at the discharge port.
Dust options
It can be matched with a general dust absorption system or a pulse dust absorption system.
Build it your way
Fineness
Screens of 20, 40, 60, 80, 100 and 120 mesh.
Blades
Pin blade, turbine blade or others.
Cooling
Water cooling jackets.
Discharge
Optional magnetic device.
Size
Six models from WF-20B to WF-80B.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
| Model | Capacity (kg/h) | Feed size (mm) | Crush size (mesh) | Grinding motor (kW) | Main speed (rpm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| WF-20B | 50-150 | ≤10 | 20-120 | 4 | 4500 | 600 x 550 x 1250 | 200 |
| WF-30B | 80-300 | ≤15 | 20-120 | 5.5 | 4300 | 750 x 600 x 1450 | 300 |
| WF-40B | 100-400 | ≤15 | 20-120 | 7.5 | 3500 | 850 x 700 x 1600 | 450 |
| WF-50B | 150-500 | ≤15 | 20-120 | 11 | 3000 | 900 x 880 x 1850 | 550 |
| WF-60B | 200-600 | ≤15 | 20-120 | 22 | 3000 | 950 x 1000 x 1850 | 750 |
| WF-80B | 30-1000 | ≤15 | 20-120 | 37 | 3000 | 2400 x 1100 x 2000 | 1500 |
Showing 6 of 6 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It crushes dry material into powder, from oily and sugary food material to spices and grain.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is a universal grinding machine?
A universal grinder crushes dry material straight into powder. The WF universal grinder uses a toothed disc rotating knife and a fixed knife, which crush the material by impact and shear, and a screen sets the fineness.
How does a pulverizer machine work?
In the WF universal grinder, the toothed disc rotating knife and the fixed knife crush the material by impact and shear. Strong airflow made by the crushing carries the heat and the finished powder out through the screen into a capture bag, and a bag filter box filters the dust.
What do people use a grinder for?
The WF grinds dry material, from oily and sugary food material to spices and grain. Examples are cooked soybean, chickpea, sugar, salt, monosodium glutamate, star anise, cinnamon, pepper, curry, ginger, rice and tea.
