01 / 05Mixing · EYH series

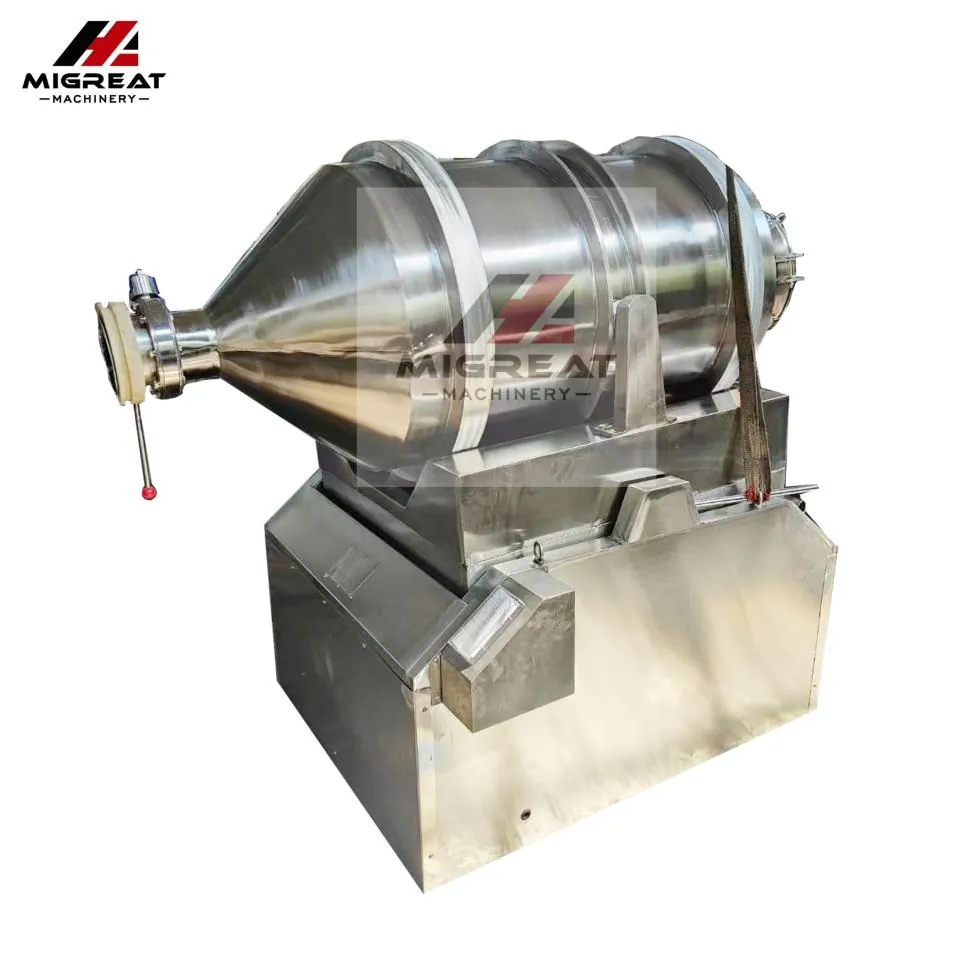

2D Mixer
A 2D mixer with two-dimensional motion. The drum rotates and swings together, so powder and granule mix fully in a short time.
- Volume
- 300 L to 5,000 L, 6 models
- Working volume
- 150 L to 2,500 L
- Rotation speed
- 3 to 12 rpm (2 to 8 on EYH-5000)
- Contact material
- SUS304
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Two motions, short mixing time

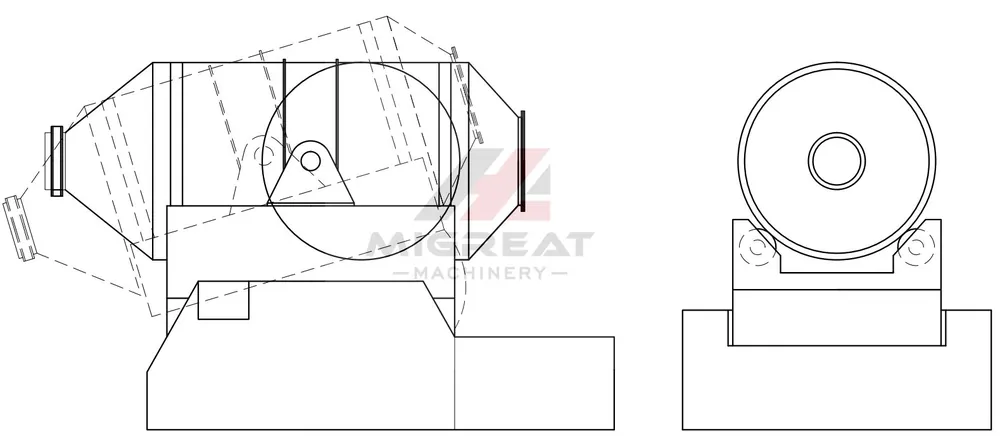

The tank of the EYH two-dimensional mixer does two motions at once. It rotates, and it swings with the swing frame. Material is turned over by the rotation and mixed left and right by the swing.
It suits all powder and granule materials.
Rotate
The drum, held on four rollers, is rotated by two driven rollers.
Swing
A crank swing rod mechanism swings the frame.
Mix
Together the two motions mix the material fully in a short time.
The range in numbers
- 6Models
From EYH-300 to EYH-5000
- 300 to 5,000L
Volume
- 50%Working volume
Of total volume
- 3 to 12rpm
Rotation speed
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Strong frame, clean drum

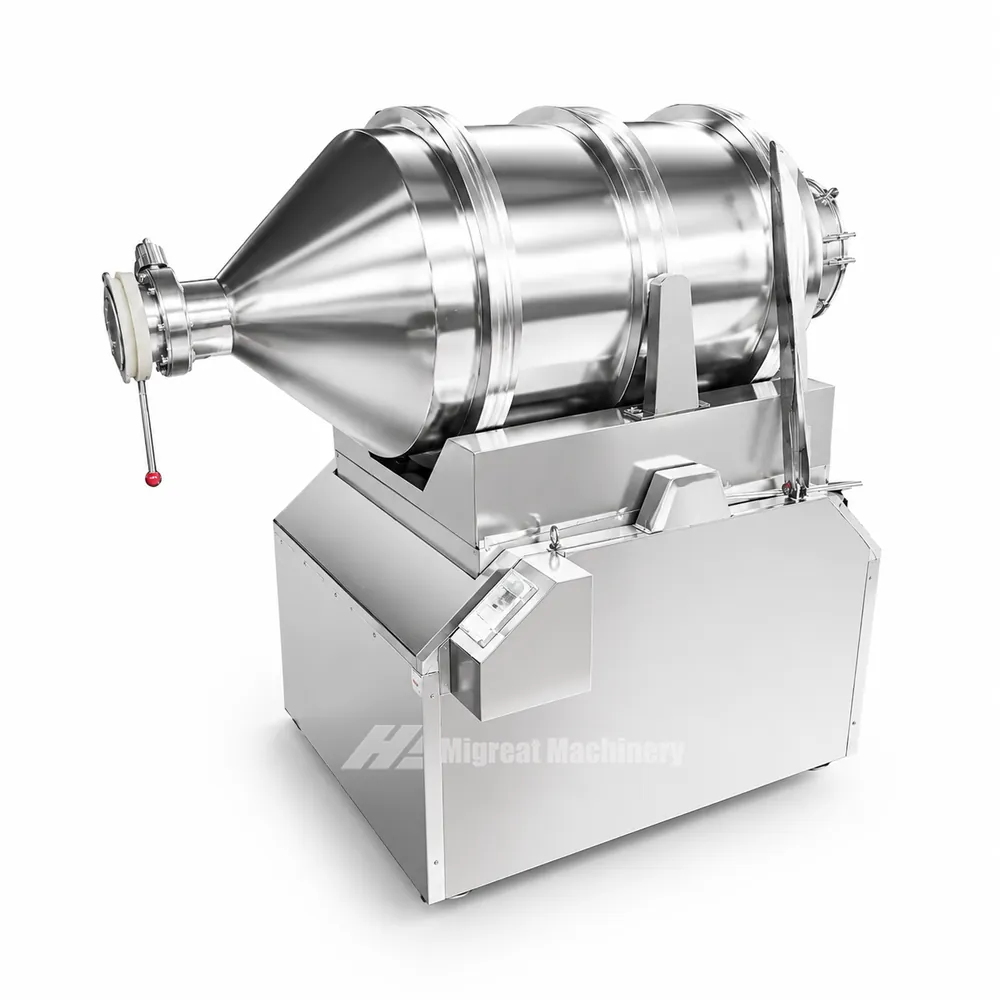

The drum is 304 stainless steel, welded by argon arc, with a flip plate inside and no dead corners.
Quick connect inlet
One end of the drum has a quick connect cover door for the inlet.
Butterfly valve outlet
The other end has a butterfly valve for the outlet.
Separate drives
Rotation (forward and reverse) and swing (constant or jog) are controlled separately.
Resin support wheels
The support wheels are resin, corrosion free and long lasting.
Separate control box

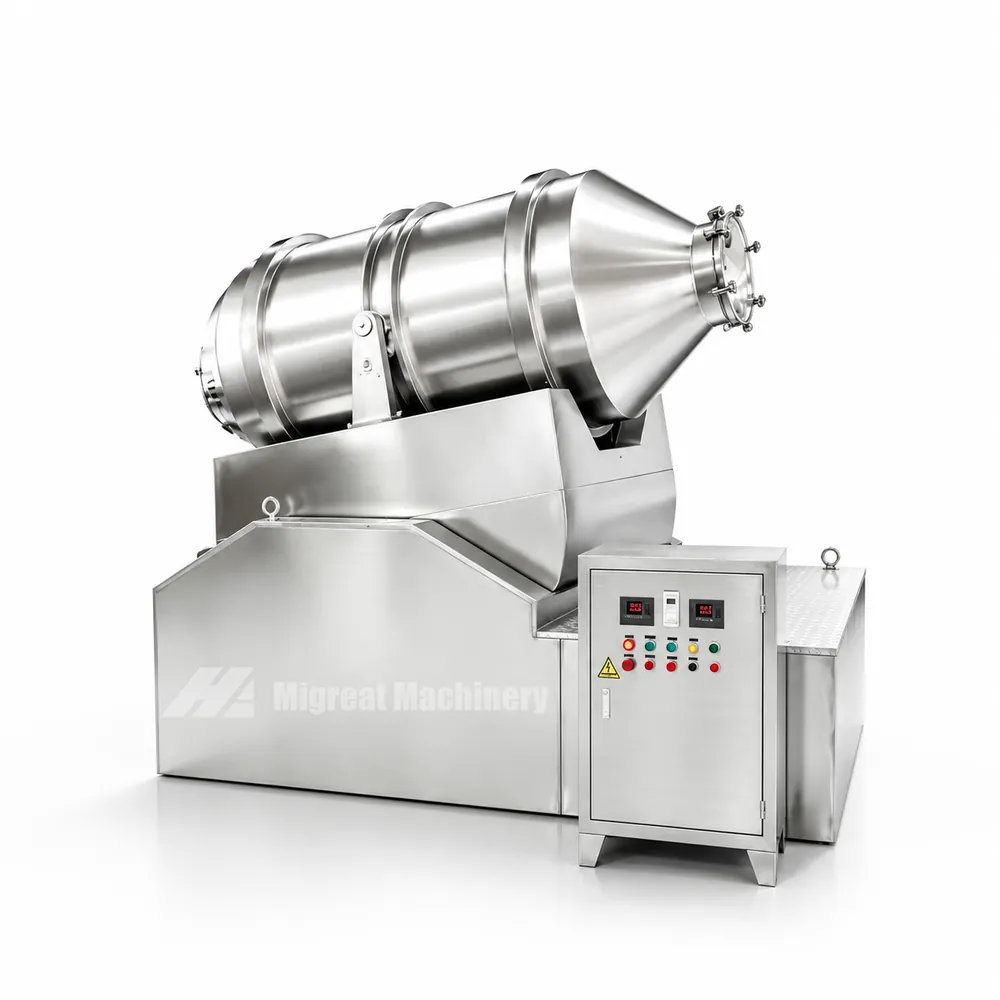

A stainless steel control box sits on the side of the machine.
Strong frame
The main frame is welded A3 channel steel, covered in 304 stainless steel plate.
Build it your way
Size
Six models from 300 L to 5,000 L.
Rotation
Forward and reverse control.
Swing
Constant or jog motion.
Contact material
304 stainless steel.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by volume
Dimensions are listed in meters, length x width x height.
| Model | Volume (L) | Working volume (L) | Rotation speed (rpm) | Rotary motor (kW) | Swing motor (kW) | Dimensions (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| EYH-300 | 300 | 150 | 3-12 | 1.1 | 0.75 | 1.4 x 1.1 x 1.4 | 600 |
| EYH-600 | 500 | 250 | 3-12 | 1.5 | 1.1 | 1.8 x 1.3 x 1.8 | 900 |
| EYH-1000 | 1000 | 500 | 3-12 | 2.2 | 1.5 | 2.1 x 1.4 x 2.2 | 1300 |
| EYH-2000 | 2000 | 1000 | 3-12 | 3 | 2.2 | 2.6 x 1.7 x 2.5 | 2000 |
| EYH-3000 | 3000 | 1500 | 3-12 | 5 | 4 | 3.0 x 1.9 x 2.7 | 2600 |
| EYH-5000 | 5000 | 2500 | 2-8 | 7.5 | 5 | 3.5 x 2.3 x 3 | 4800 |
Showing 6 of 6 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It mixes all powder and granule materials.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is a mixer used for?
The EYH 2D mixer is used to mix powder and granule materials. The drum rotates and swings at the same time, so all powder and granule materials mix fully in a short time.
What is the purpose of a mixer?
To mix different powders or granules into an even blend. In the EYH, rotation turns the material over and the swing mixes it from left to right, so the batch is uniform in a short time. It comes in six models from 300 L to 5,000 L.
How does the 2D mixer mix?
The tank does two motions at once. The drum, held on four rollers, is rotated by two driven rollers, and a crank swing rod mechanism swings the frame. Rotation and swing together mix the material fully.
