01 / 05Packing · MJ series

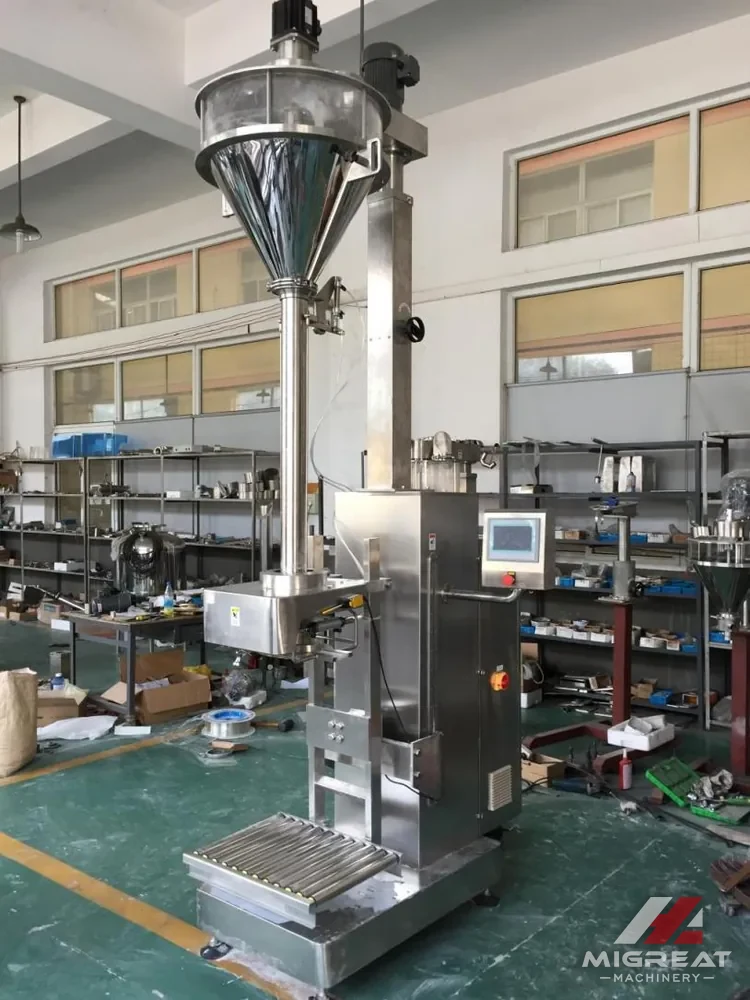

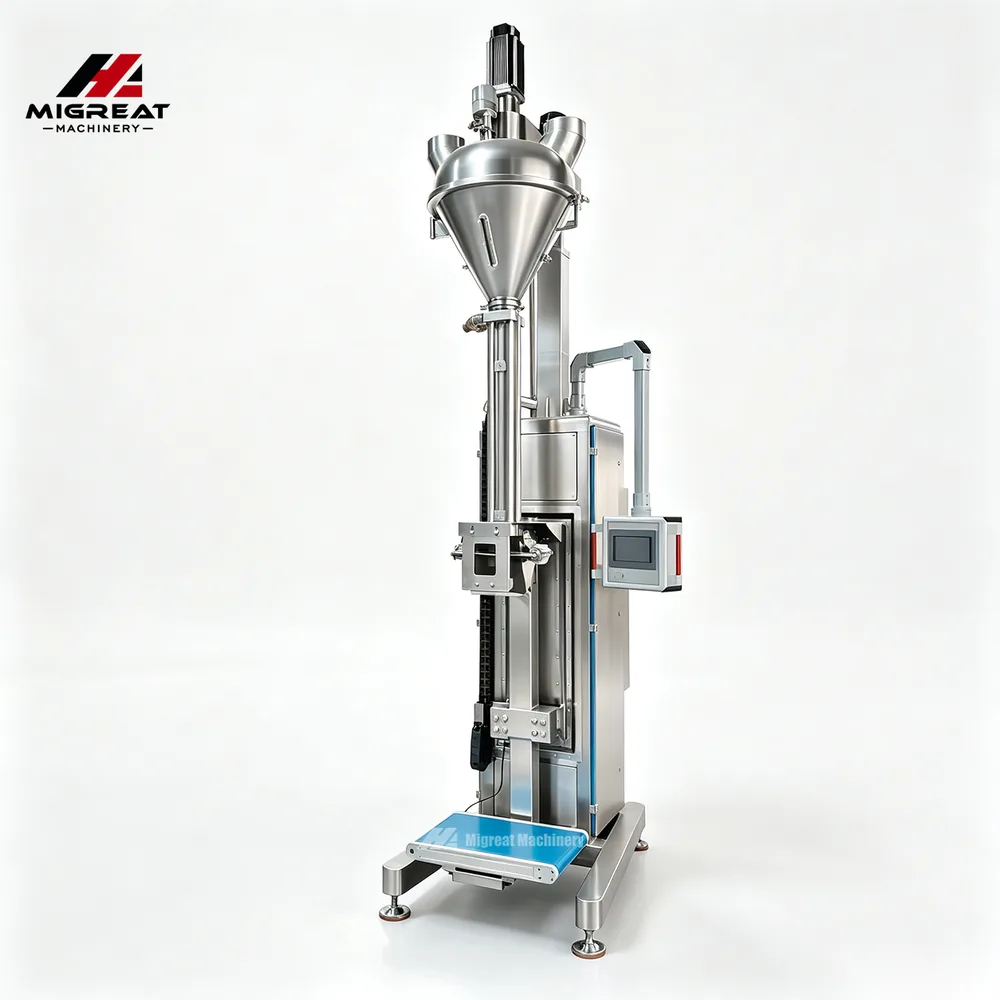

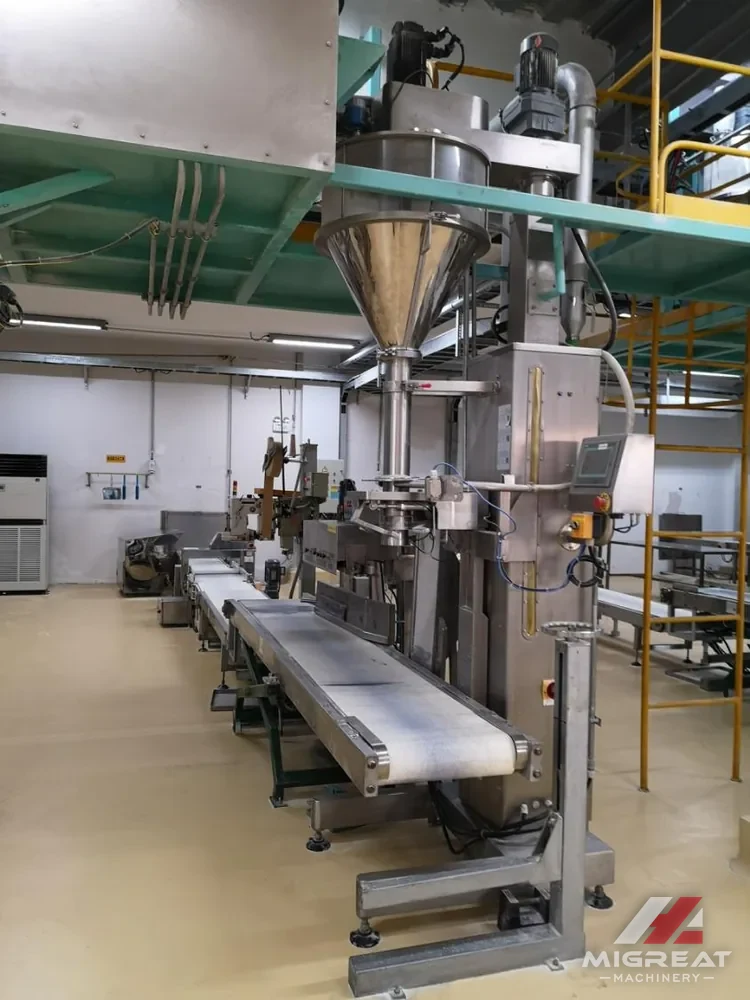

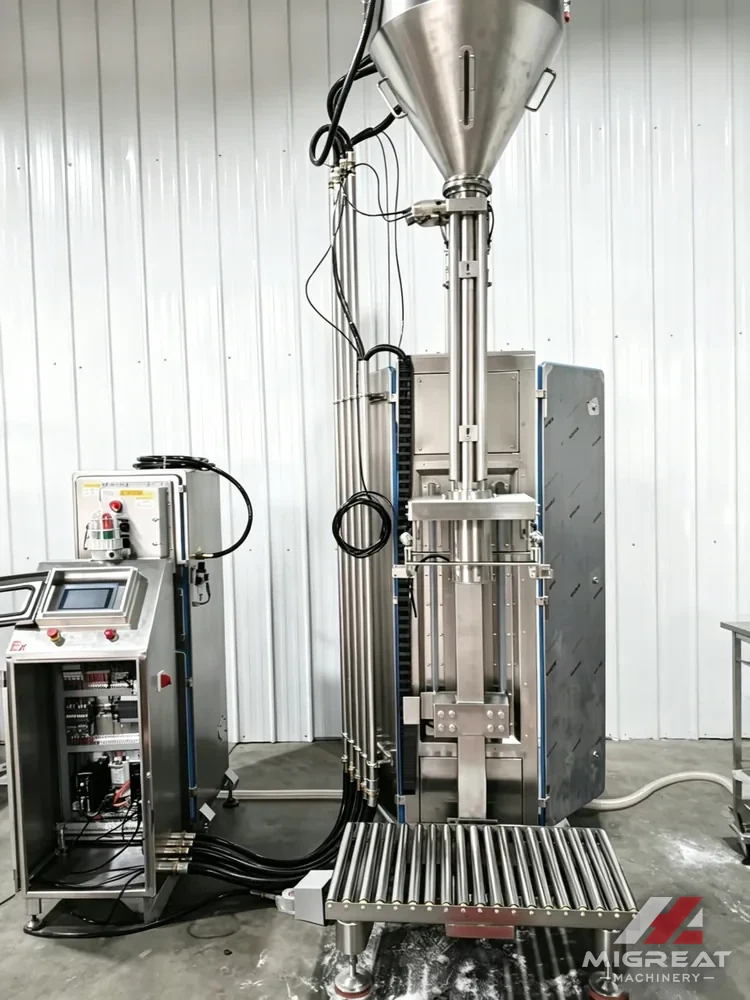

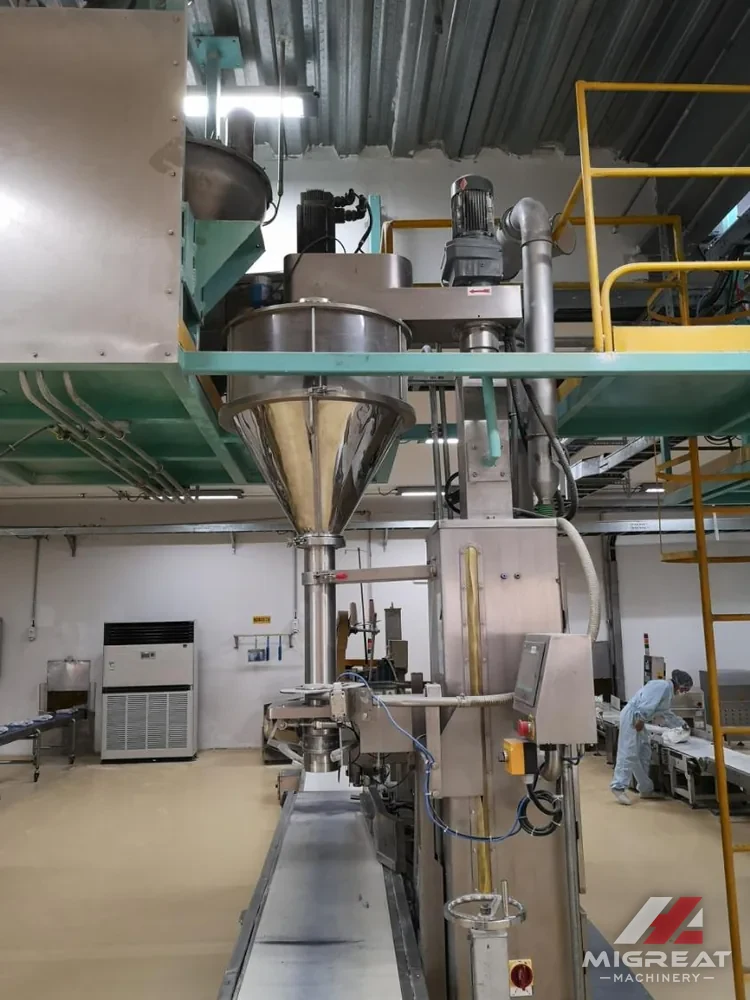

MJ-1C3 Packing Machine
A semi-automatic auger powder filler with bottom weighing, for filling buckets and containers of 5 to 50 kg.
- Package weight
- 5 to 50 kg
- Speed
- 1 to 6 bags/min
- Hopper
- 75 L side-opening
- Power
- 3 kW
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Bottom weighing for bucket filling
The MJ-1C3 semi-automatic powder filling machine doses and fills powdery and granular materials such as milk powder, feed powder, rice flour, coffee powder, monosodium glutamate, solid beverages, dextrose, pharmaceuticals and powder additives.
It has bottom weighing and suits bucket filling. It suits materials with different flow characteristics, depending on their properties and filling requirements.
Feed
Powder or granules go into the hopper. An agitator keeps them feeding into the auger.
Fill
A servo-driven auger doses the material, with weight feedback.
Pack
The filled weight goes into the bag, bottle or container.
The range in numbers
- 1Model
Semi-automatic
- 5 to 50kg
Package weight
- 1 to 6bags/min
Packaging speed
- ≤±0.2%
Package accuracy
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Accurate filling, easy cleaning
Stainless steel construction and a side-opening hopper.
SUS304 stainless steel
SUS304 stainless steel construction with a 75 L side-opening hopper for easy cleaning and maintenance.
Typical filling range
It suits filling powdery materials into bags or containers with target weights from 5 to 25 kg (typical filling range).
Servo-driven auger
A precision-machined auger driven by a servo motor fills accurately and suits different target weights.
Hopper agitator
An integrated agitator keeps powder feeding steadily into the auger.
PLC and touch screen
PLC control with a color touch screen in Chinese, English and customized languages.
Weight feedback
Weight feedback and proportional tracking help keep filling weight consistent across materials.
Build it your way
Auger
Change the auger attachment to change the package weight.
Language
Chinese, English or customized.
Voltage
380V / 220V, 50-60Hz.
Hopper
75 L side-opening hopper.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Key parameters
Package weight is the range you can change by changing the auger attachment.
| Item | MJ-1C3 |
|---|---|
| Metering model | Auger filling, electronic-sensing weighing feedback |
| Package weight | 5-50kg (changeable by changing auger attachment) |
| Package accuracy | ≤±0.2% (according to material proportion and pack weight) |
| Packaging speed | 1-6 bags/min (according to people speed and pack weight) |
| Power supply | 380V / 220V 50-60Hz |
| Total power | 3 kW |
| Total weight | 500 kg |
| Air supply | 6kg/cm² 0.1m³/min |
| Overall dimensions | 1150 x 1000 x 2800 |
| Hopper volume | 75 L |
| Operational style | PLC control system, 5.7 inch colorful touch screen |
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It fills powdery and granular materials.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What are some ways to fill a bucket?
With the MJ-1C3, a semi-automatic auger filler with bottom weighing, built for buckets and containers of 5 to 50 kg. The servo-driven auger doses the powder and weight feedback keeps the filled weight steady.
What does the MJ-1C3 fill?
It doses and fills powdery and granular materials such as milk powder, feed powder, rice flour, coffee powder, monosodium glutamate, solid beverages, dextrose, pharmaceuticals and powder additives.
How fast is the MJ-1C3?
It fills 1 to 6 bags per minute. It has a 75 L side-opening hopper in SUS304 stainless steel, and a PLC with a color touch screen.
