01 / 05Granulation · QZL series

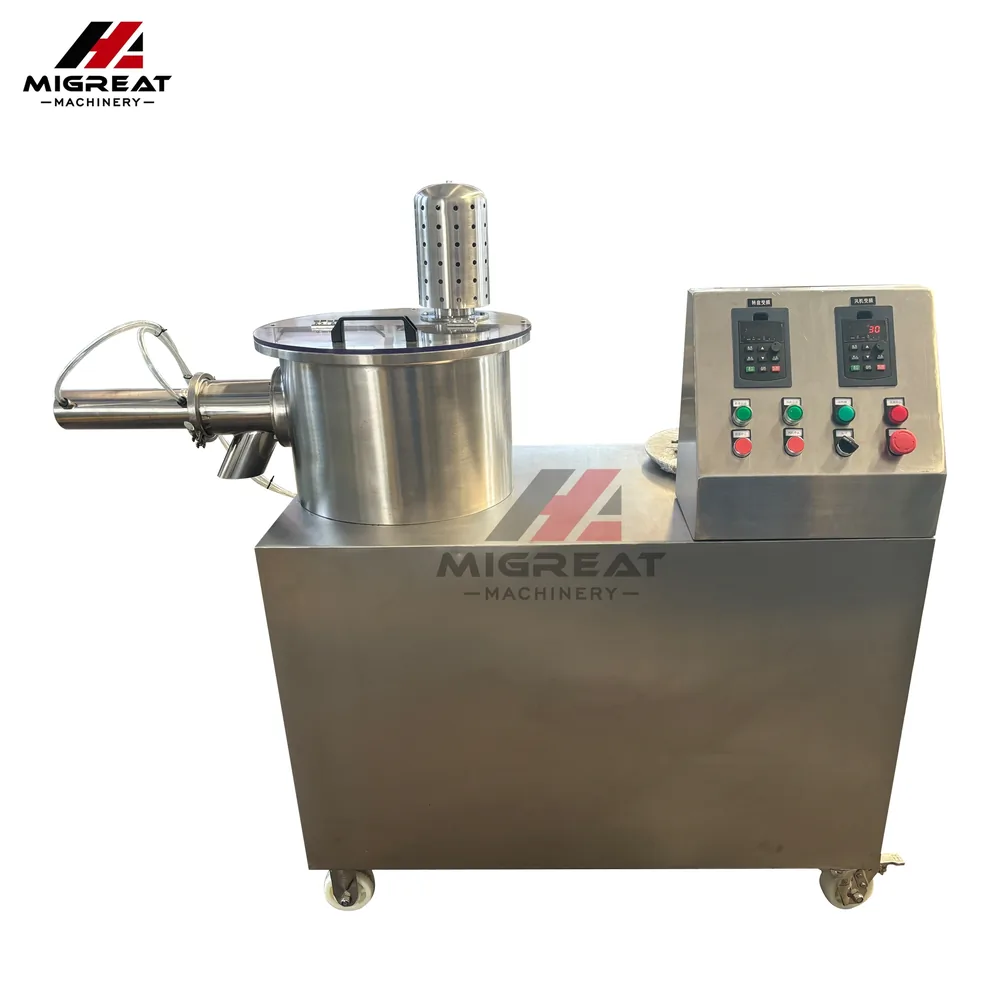

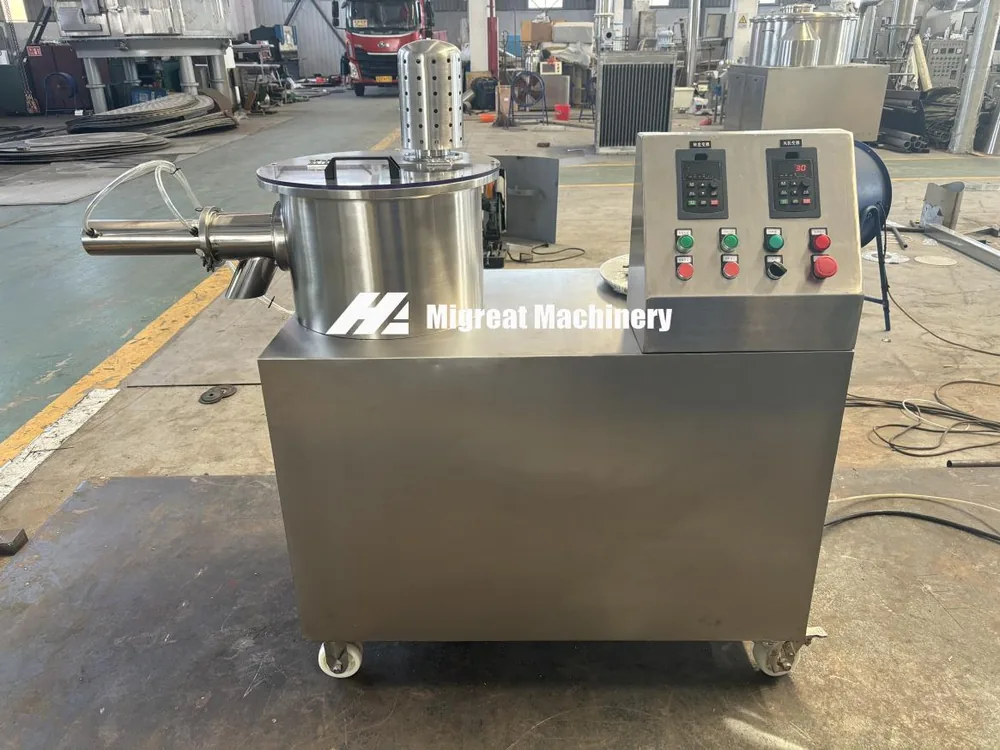

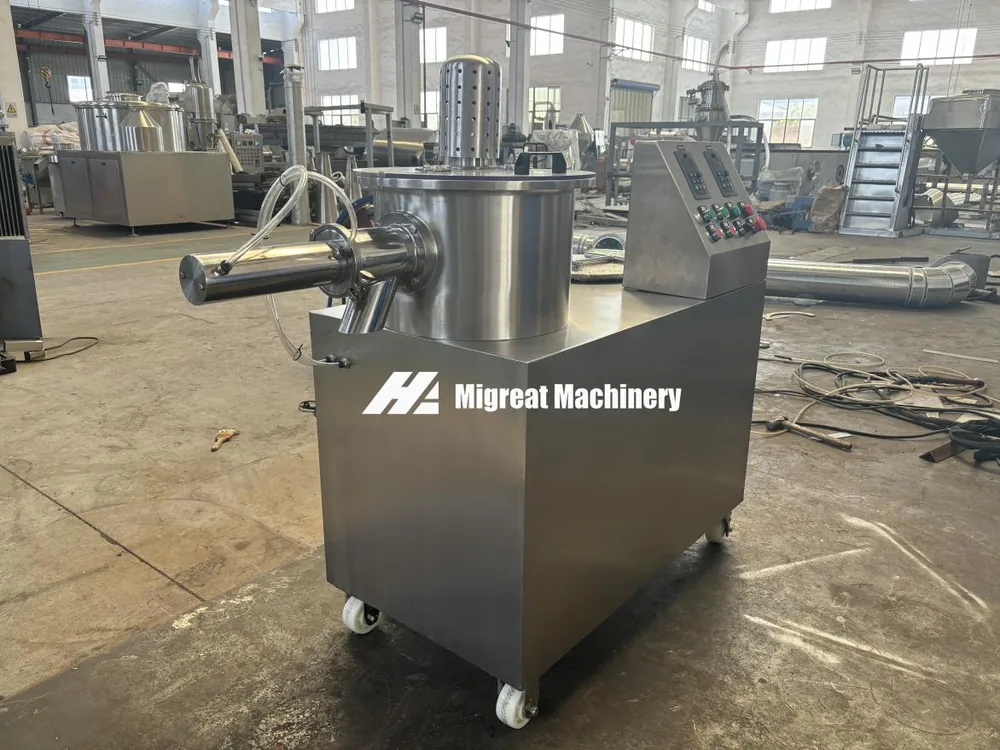

Spheronizer Granulator
A high speed spheronizer that follows an extruder in an extruder spheronizer line. It turns extruded particles or moist granules into round pellets.
- Capacity
- 2.5 to 300 kg/h, 6 models
- Power
- 0.55 kW to 7.5 kW
- Models
- QZL-230 to QZL-1300
- Bulk density
- Up to 25% higher
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
From rough granules to round pellets
The QZL multi function high speed spheronizer is used in the food and chemical industries to turn extruded particles or moist granules from a mixer or granulator into round spheres.

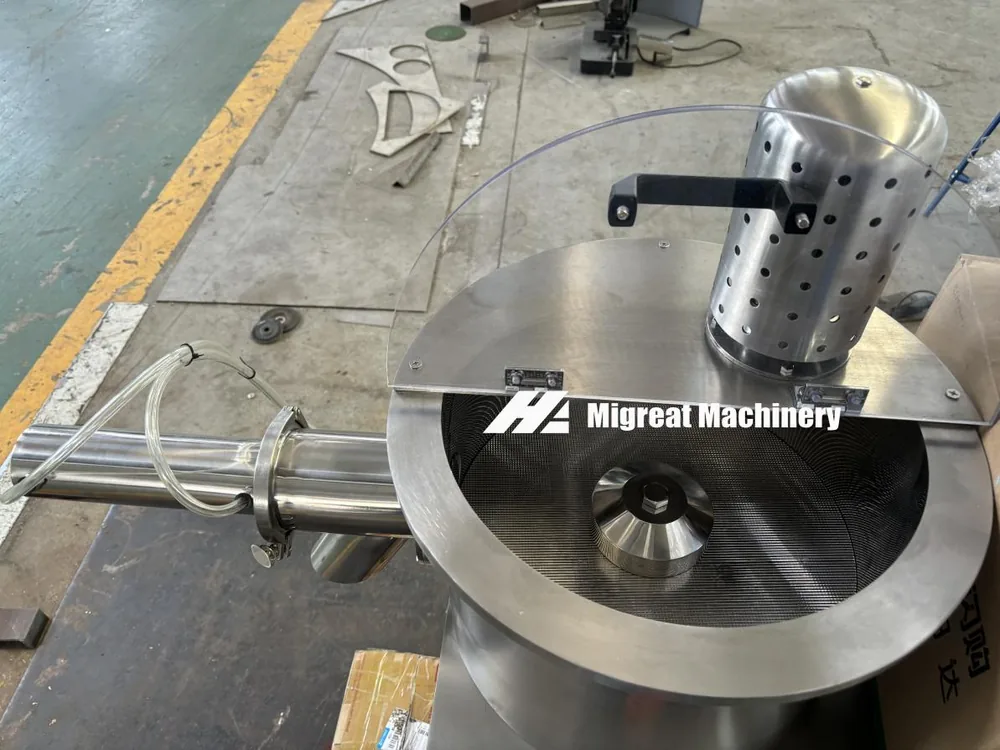

Particles are fed onto a spinning friction plate that throws them against the inside wall of the cylinder. Extruded particles are broken into pieces about one diameter long, and collisions with the wall, the plate and each other round each granule.
Feed
Damp granules are fed onto the rotating centrifugal disk.
Spin

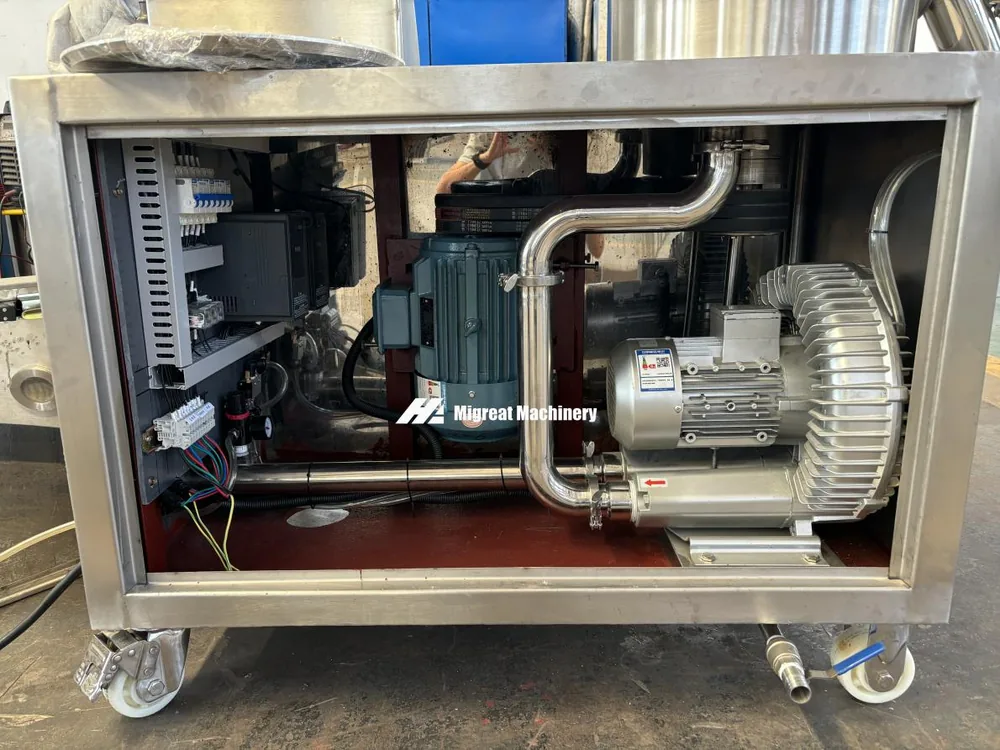

Air from the fan, centrifugal force and gravity keep the particles rolling in a ring.
Round
The collisions shape each granule into a round ball. The time needed depends on the formulation.
The range in numbers
- 6Models
From QZL-230 to QZL-1300
- 2.5 to 300kg/h
Capacity
- 0.55 to 7.5kW
Power
- Up to 25%
Higher apparent bulk density
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Smooth, round and dust free
Five effects on the finished particle.
Smooth surface
A smooth particle surface suits thin layer coating.
Specific shape
Forms granules in a defined shape.
Less dust
Conditions particles so they make less dust and fines in use and shipping.
Better flow
Removes sticking and bridging points, so flowability improves.
Higher density
Raises the apparent bulk density by up to 25% compared with extruded material.
Repeatable
The shape for a given formulation is reached predictably and repeatedly in a brief spheronization time.
Build it your way
Size
Six models from QZL-230 to QZL-1300.
Formulation
Spheronization time is set to your formulation.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
Pick the model from the capacity you need.
| Model | Power (kW) | Capacity (kg/h) |
|---|---|---|
| QZL-230 | 0.55 | 2.5~4 |
| QZL-400 | 0.55 | 5~8 |
| QZL-500 | 0.75 | 8~16 |
| QZL-700 | 3 | 40~80 |
| QZL-1000 | 4 | 120~200 |
| QZL-1300 | 7.5 | 150~300 |
Showing 0 of 6 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It rounds extruded particles and moist granules in the food and chemical industries.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is extrusion and spheronization?
It is a two-step process. An extruder forms particles, and the QZL high speed spheronizer then turns extruded particles or moist granules into round pellets.
What does "spheronize" mean?
It means to make particles round. In the QZL, collisions with the cylinder wall, the plate and each other shape each granule into a round ball.
What is the process of spheronization and how does it work?
Damp granules are fed onto a spinning friction plate that throws them against the cylinder wall. Extruded particles break into pieces about one diameter long. Air from the fan, centrifugal force and gravity keep the particles rolling in a ring, and the time needed depends on the formulation.
