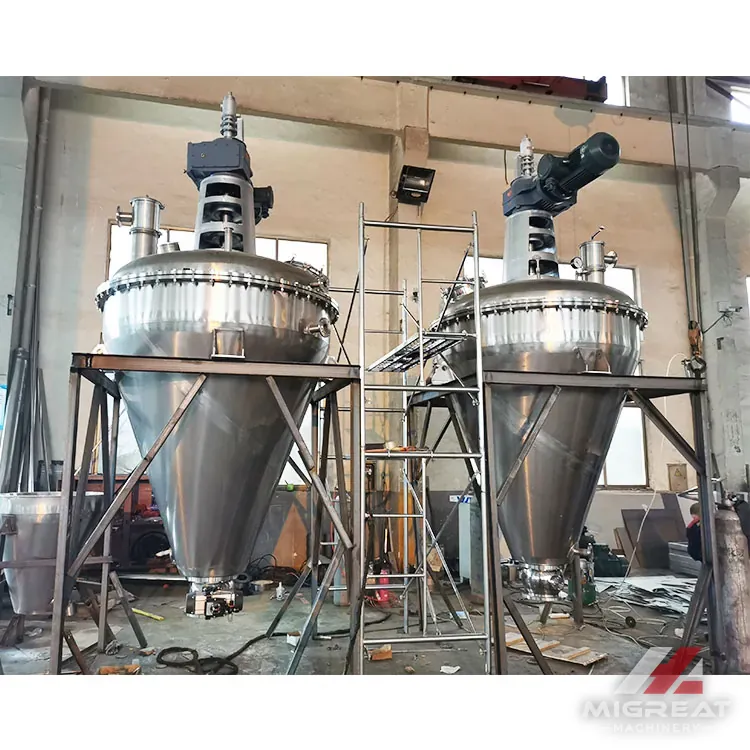

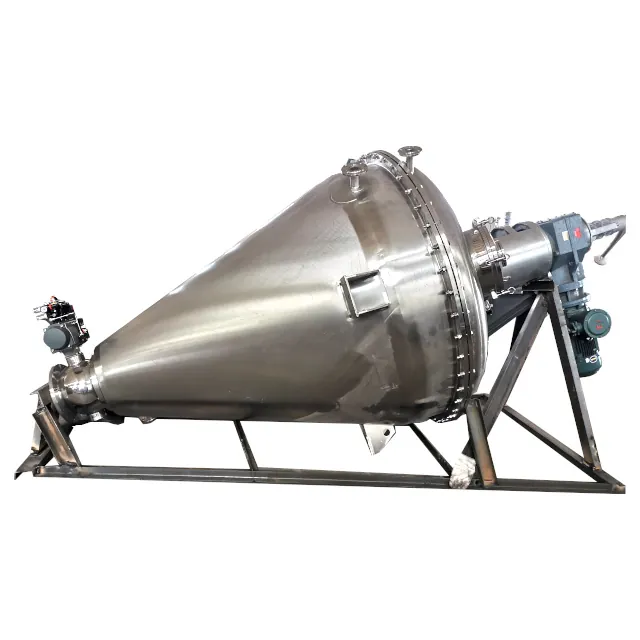

Vacuum Conical Dryer
A batch conical vacuum dryer with a single jacketed cone vessel and a spiral stirrer, driven from the top.
- Effective volume
- 35 L to 2,100 L, 8 models
- Work temperature
- 40 to 140 ℃
- Evaporation capacity
- 3 to 60 kg/h
- Fit
- GMP
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Mix and dry in one vessel
The DLH vacuum conical dryer is intermittent, batch operation drying equipment with a single cone vessel. Wet material enters the cone and is heated through the cylinder wall jacket and the inside of the stirrer. A vacuum pump pulls out the water vapour.
Mixing and drying finish in one vessel, which raises productivity. Operation is stable and protects crystal shape, and the top drive stops the shaft seal from contaminating the product.
Heat
The jacket heats the cone wall with hot water, thermal oil or low pressure steam.
Stir

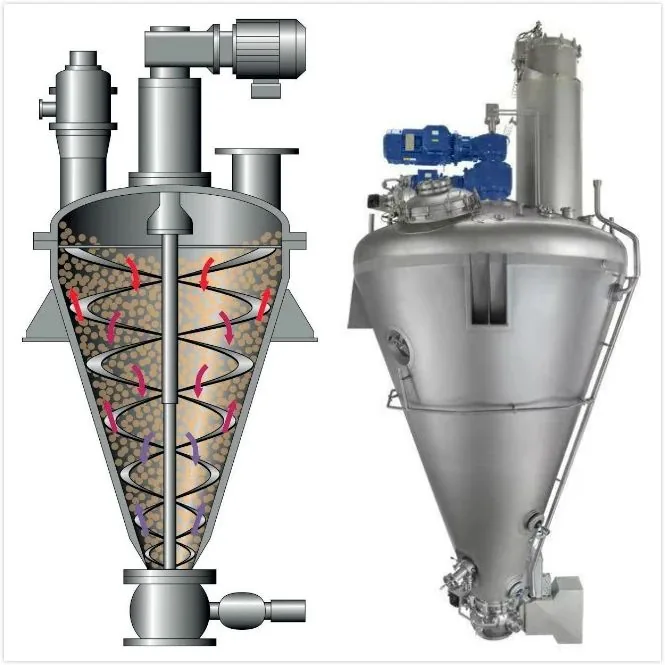

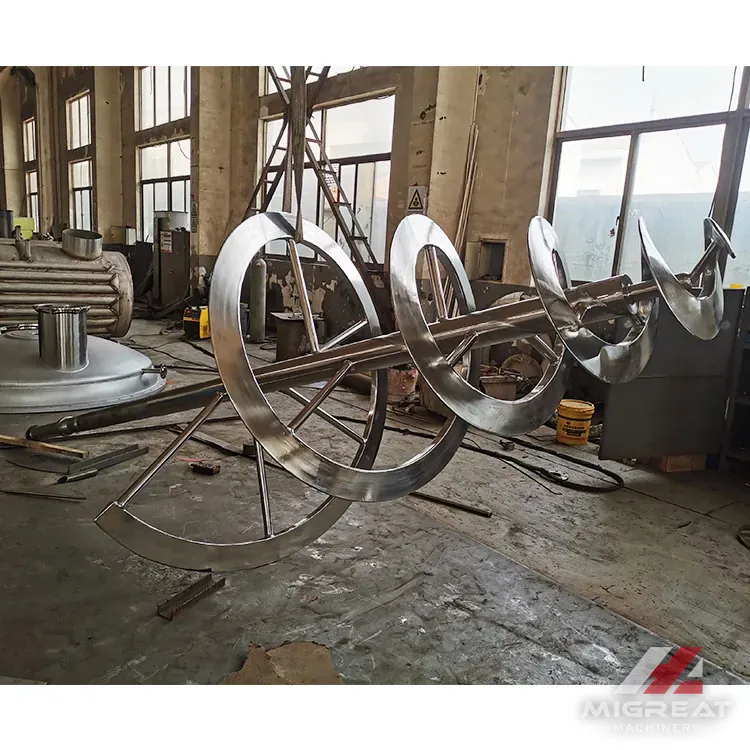

Under vacuum, the spiral stirrer turns the material over and presses it against the heated wall.
Recover
Vapour goes out through the vacuum pump. A condenser and recovery tank can recover the liquid. Open the lower valve to discharge.
The range in numbers
- 8Models
From DLH-50 to DLH-3000
- 35 to 2,100L
Effective volume
- 40 to 140℃
Work temperature
- 3 to 60kg/h
Evaporation capacity

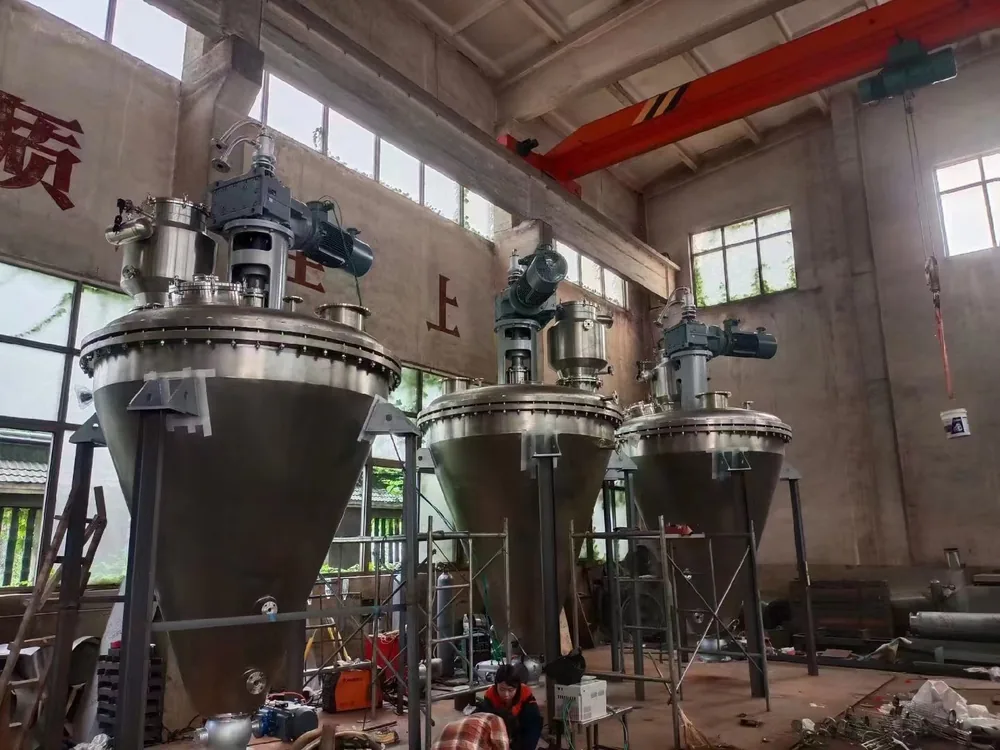

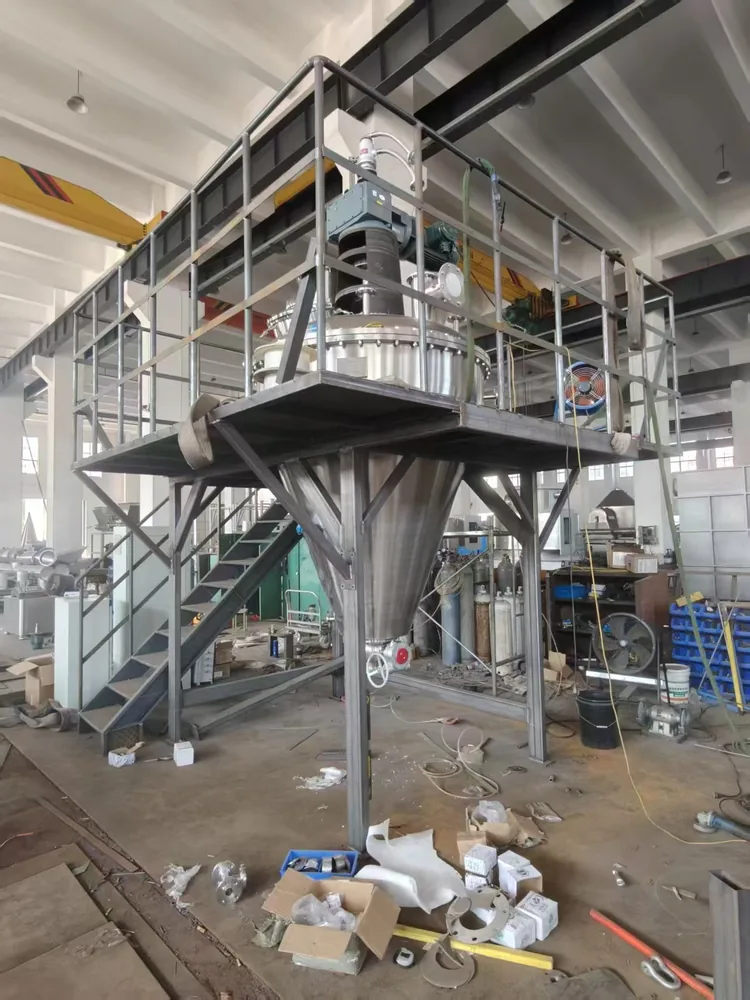

More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
One vessel, easy to clean
The design meets GMP.
Mixing and drying together
Both steps finish in one vessel.
Jacket heating
A heating jacket lowers energy consumption.
Vacuum drying
Heat and mass transfer are kept up, which suits heat sensitive material.

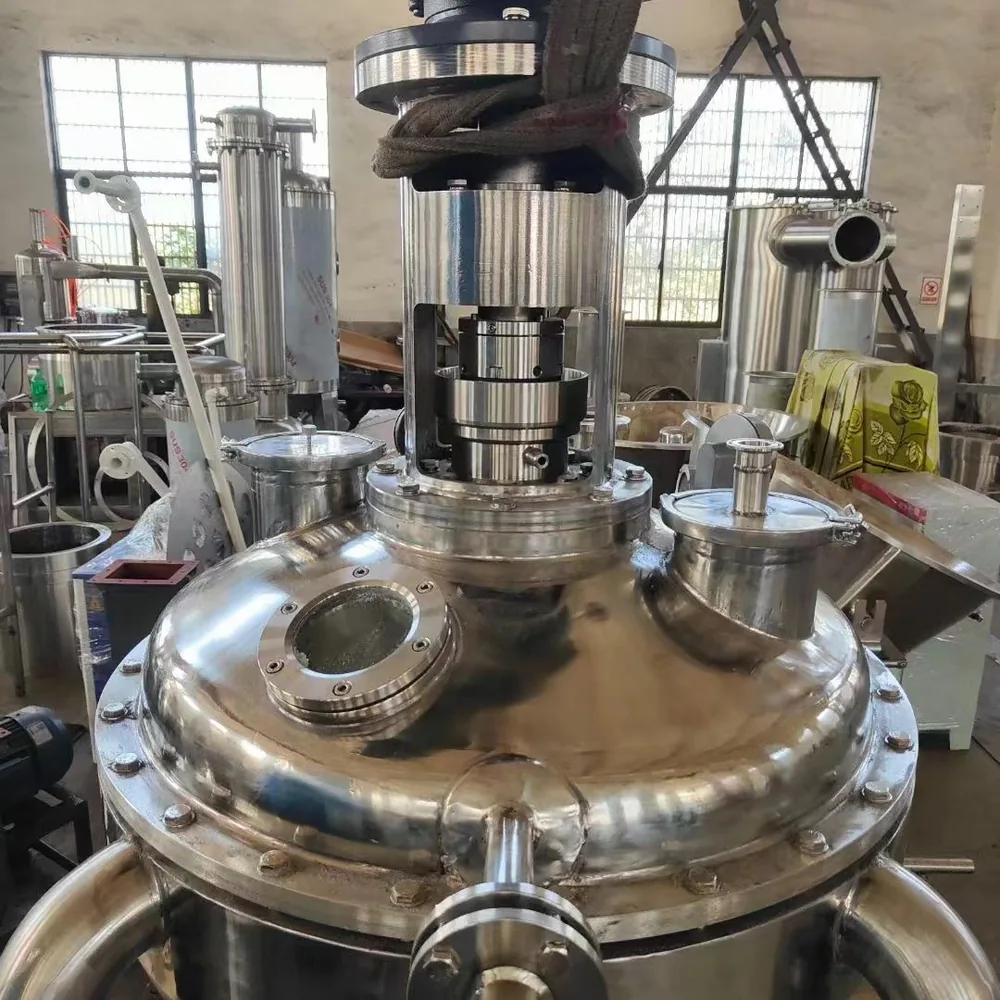

Top drive
The top drive keeps the shaft seal from contaminating the product.
Easy discharge
The structure is simple, easy to clean and convenient to discharge.
Cooling and sterilizing
The machine can also cool, react and sterilize.
Build it your way
Size
Eight models from DLH-50 to DLH-3000.
Heat source
Hot water, thermal oil or low pressure steam.
Stirring
Different agitators are available.
Condenser
Condenser and recovery tank for solvent recovery.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Size to your batch
Stirring speed is 9 to 18 rpm and 6 to 11 rpm, and the work temperature is 40 to 140 ℃. Effective volume and full volume are in liters.
| Model | Effective volume (L) | Full volume (L) | Stirring power (kW) | Evaporation capacity (kg/h) | Dimensions (mm) |
|---|---|---|---|---|---|
| DLH-50 | 35 | 50 | 1.1 | 3-6 | 1000 x 650 x 1580 |
| DLH-100 | 70 | 100 | 1.5 | 4-7 | 1200 x 800 x 2100 |
| DLH-200 | 140 | 200 | 2.2 | 5-9 | 1300 x 950 x 2600 |
| DLH-500 | 350 | 500 | 4 | 9-15 | 1600 x 1200 x 3400 |
| DLH-1000 | 700 | 1000 | 5.5 | 16-25 | 2000 x 1500 x 4850 |
| DLH-1500 | 1000 | 1500 | 7.5 | 20-35 | 2200 x 1800 x 5500 |
| DLH-2000 | 1400 | 2000 | 15 | 25-45 | 2500 x 2000 x 6250 |
| DLH-3000 | 2100 | 3000 | 18.5-22 | 35-60 | 3000 x 2800 x 6800 |
Showing 7 of 8 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It dries heat sensitive material in pharmaceutical, chemical and food plants.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is the purpose of a vacuum dryer?
To dry material at low pressure and gentle temperature. The DLH mixes and dries in one jacketed cone, which raises productivity and protects crystal shape.
How does a vacuum dryer work?
The jacket heats the cone wall with hot water, thermal oil or low pressure steam. Under vacuum, the spiral stirrer turns the material over against the heated wall, and the vacuum pump pulls out the vapour. A condenser and recovery tank can recover the liquid.
Is it good for heat sensitive material?
Yes. Heat and mass transfer are kept up under vacuum, which suits heat sensitive material. The top drive also stops the shaft seal from contaminating the product.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Inquiry
Not sure which dryer fits?
Tell us your material and batch size. We reply with a suitable model.
