01 / 05Mixing · MTS series

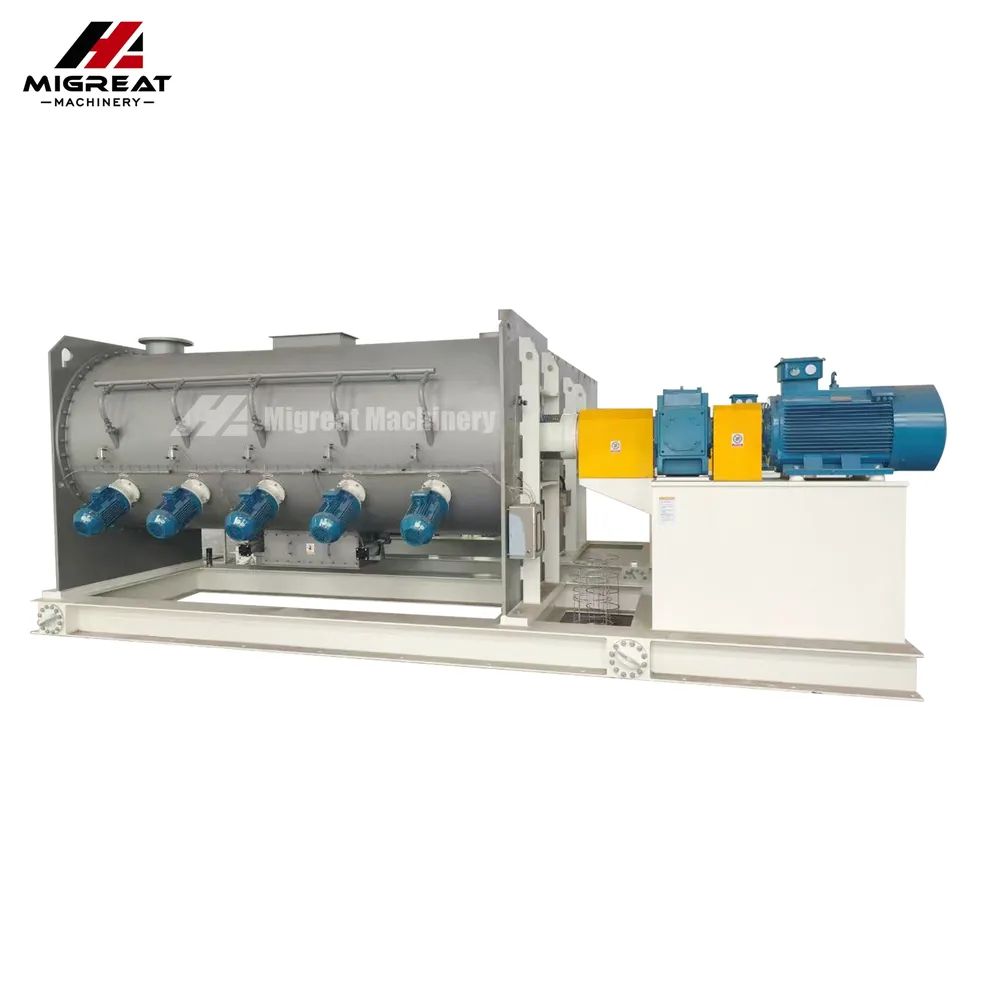

Plough Mixer
A single shaft forced mixer. Plough shears set on the main shaft throw material through the drum for fast, even mixing.
- Total volume
- 100 L to 15,000 L, 13 models
- Load coefficient
- 0.4 to 0.8
- Power
- 3 kW to 75 kW
- Choppers
- Optional high speed choppers
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Plough shears, no dead zone
The plough shear mixer is a single shaft forced mixing machine. Several sets of plough shears are fitted on the main shaft in staggered, continuous positions, which avoids a mixing dead zone.
In operation the material moves with the continuous vortex and centrifugal force of the plough shears, so it scatters, disperses and mixes quickly. For fiber or damp, lumpy material a high speed chopper can be added.
Plough

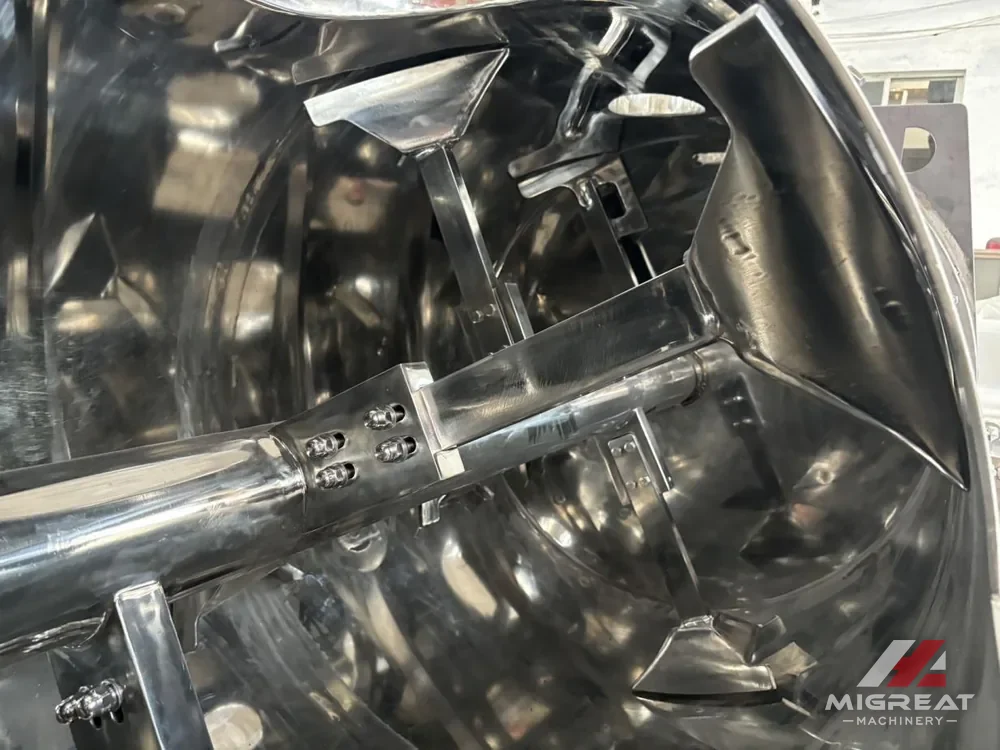

Staggered plough shears on the main shaft throw material into a continuous vortex.
Chop

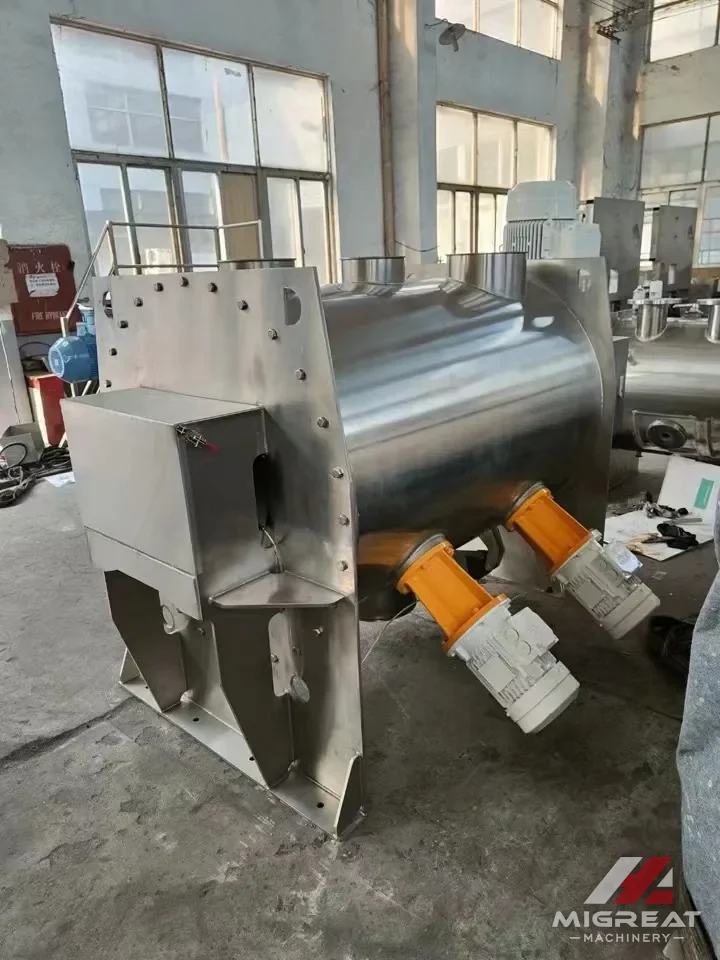

High speed choppers on the barrel side, at 45° downward, shear lumps and fiber.
Discharge
A pneumatic flat flap valve closes flush with the barrel, so no dead zone is left.
The range in numbers
- 13Models
From MTS-100 to MTS-15000
- 100 to 15,000L
Total volume
- 0.4 to 0.8
Load coefficient
- 3 to 75kW
Power
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Flexible build, strong mixing
Materials, drives, valves and extras are chosen to suit your product.
Flexible materials
Carbon steel, manganese steel, SS304, 316L and 321. Contact and non-contact parts can use different materials, and stainless surfaces can be sandblasted, wire drawn, polished or mirror polished.
Choice of drives
Choose general, explosion-proof, variable frequency or energy saving motors, with R, K or F series gearboxes, cycloidal, universal or planetary reducers.
Mixing unit
Plough heads are dismountable and wear treated. Choose ordinary, saw-toothed or shaver-shaped agitators, and cross blade or lotus blade choppers.
Discharge valve
The standard valve is a pneumatic flat flap valve. Manual, pneumatic or electric drive, or a spherical, plum-blossom, butterfly or rotary valve.
Jackets
Steam coil, honeycomb pressure or medium circulation jackets carry hot water, steam or oil for drying, cooling or keeping warm.
Spray system
A liquid filling system with atomizing nozzles can be fitted to the top cover, for water, acid or alkali liquid.
Build it your way
Size
Thirteen models from MTS-100 to MTS-15000.
Materials
Carbon steel, manganese steel, SS304, 316L or 321.
Choppers
Add high speed choppers for fiber or damp lumps.
Spray system
Liquid tank and atomizing nozzles on the top cover.
Coatings
PE, PTFE or carbide on the tank and agitator.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by total volume
The load coefficient is 0.4 to 0.8 on all models. Total volume is in liters.
| Model | Total volume (L) | Power (kW) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| MTS-100 | 100 | 3 | 2000 x 680 x 1650 | 300 |
| MTS-300 | 300 | 3 | 2330 x 700 x 1700 | 390 |
| MTS-500 | 500 | 5.5 | 2700 x 960 x 1750 | 650 |
| MTS-1000 | 1000 | 7.5 | 2900 x 1000 x 1800 | 1000 |
| MTS-1500 | 1500 | 11 | 3100 x 1150 x 1800 | 1400 |
| MTS-2000 | 2000 | 15 | 3500 x 1200 x 1800 | 2000 |
| MTS-3000 | 3000 | 18.5 | 4200 x 1400 x 1820 | 2500 |
| MTS-4000 | 4000 | 22 | 5000 x 1500 x 1900 | 2900 |
| MTS-5000 | 5000 | 22 | 5100 x 1500 x 2100 | 3500 |
| MTS-6000 | 6000 | 37 | 5300 x 1650 x 2000 | 4300 |
| MTS-8000 | 8000 | 45 | 6300 x 2100 x 2000 | 6500 |
| MTS-10000 | 10000 | 55 | 7200 x 2100 x 2100 | 8500 |
| MTS-15000 | 15000 | 75 | 8000 x 2100 x 2100 | 13000 |
Showing 7 of 13 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It mixes powders, fiber and damp, lumpy material.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is a plough shear?
It is the mixing tool of the MTS plough mixer. Several sets of plough shears are fitted on the main shaft in staggered, continuous positions, which avoids a mixing dead zone. Plough heads are dismountable and wear treated.
What is the working principle of a shear mixer?
The MTS is a single shaft forced mixer. The material moves with the continuous vortex and centrifugal force of the plough shears, so it scatters, disperses and mixes quickly. For fiber or damp, lumpy material a high speed chopper can be added.
Can it mix fiber or damp lumps?
Yes. Add high speed choppers on the barrel side, at 45 degrees downward, to shear lumps and fiber. A liquid filling system with atomizing nozzles can also be fitted to the top cover.
