01 / 05Packing · MJ series

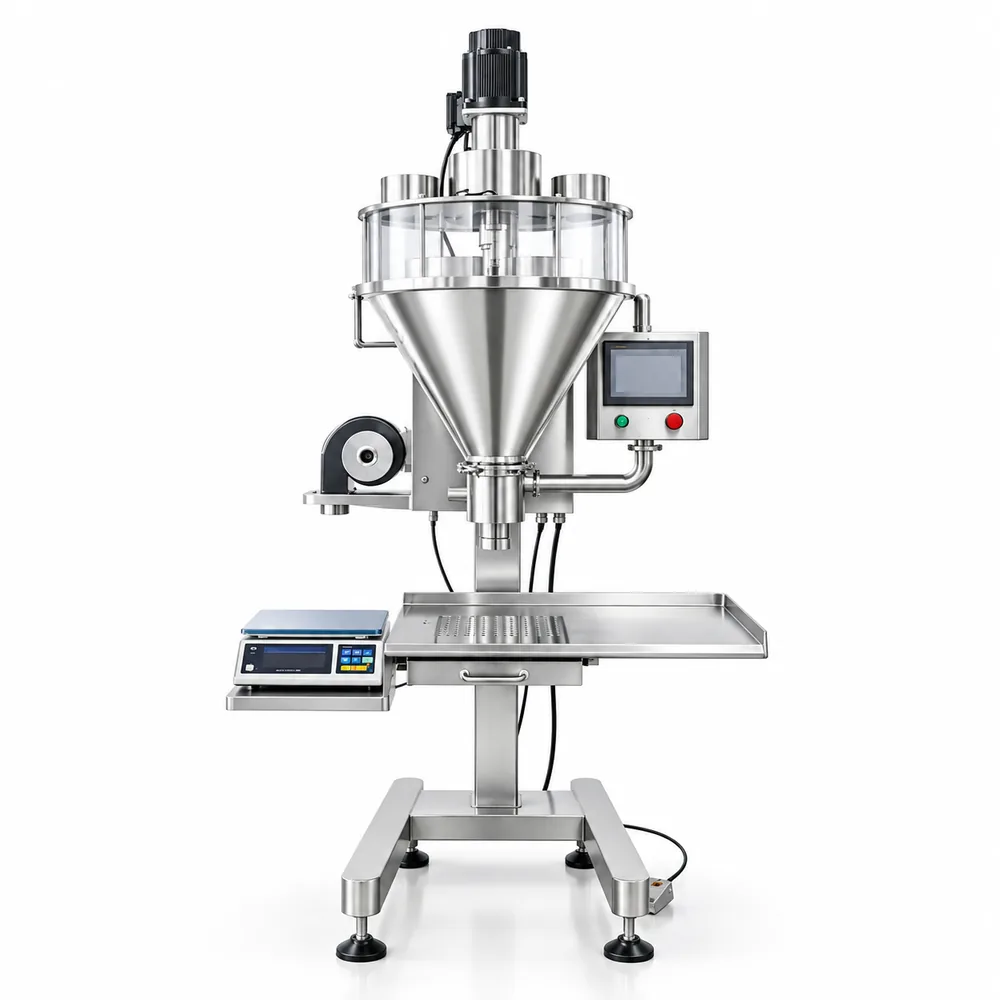

MJ-1B3 Packing Machine
A semi automatic powder filling machine with an auger, for bags of 0.1 to 5 kg, designed to GMP requirements.
- Package weight
- 0.1 to 5 kg
- Speed
- 6 to 15 bags/min
- Hopper
- 50 L side-opening
- Power
- 1.8 kW
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Auger filling for small bags
The MJ-1B3 semi-automatic powder filling machine is designed in accordance with GMP requirements. It fills powder and granular materials such as milk powder, feed powder, rice flour, coffee powder, icing sugar, monosodium glutamate, solid beverages, dextrose and solid medicines.
It has dust collection, an adjustable-height working table and recipe storage so it is easy to operate and fills to a steady weight.
Feed
Powder or granules go into the hopper. An agitator keeps them feeding into the auger.
Fill
A servo-driven auger doses the material, with weight feedback.
Pack
The filled weight goes into the bag, bottle or container.
The range in numbers
- 1Model
Semi-automatic
- 0.1 to 5kg
Package weight
- 6 to 15bags/min
Packaging speed
- 50L
Hopper volume
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Accurate filling, easy cleaning
Stainless steel construction and a side-opening hopper.
304 stainless steel
A 304 stainless steel build with a 50 L side-opening hopper for easy access, cleaning and maintenance.
Typical filling range
It suits filling powdery materials into bags weighing 0.1 to 5 kg (typical filling range).
Servo-driven auger
A precision-machined auger driven by a servo motor fills accurately and suits different target weights.
Hopper agitator
An integrated agitator keeps powder feeding steadily into the auger.
PLC and touch screen
PLC control with a color touch screen in Chinese, English and customized languages.
Weight feedback
Weight feedback and proportional tracking help keep filling weight consistent across materials.
Build it your way
Auger
Change the auger attachment to change the package weight.
Language
Chinese, English or customized.
Voltage
380V / 220V, 50-60Hz.
Hopper
50 L side-opening hopper.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Key parameters
Package weight is the range you can change by changing the auger attachment.
| Item | MJ-1B3 |
|---|---|
| Metering model | Auger filling, electronic-sensing weighing feedback |
| Package weight | 0.1-5kg (changeable by changing auger attachment) |
| Package accuracy | ±0.2-1% (according to material proportion and pack weight) |
| Packaging speed | 6-15 bags/min (according to people speed and pack weight) |
| Power supply | 380V / 220V 50-60Hz |
| Total power | 1.8 kW |
| Total weight | 160 kg |
| Overall dimensions | 910 x 850 x 2250 |
| Hopper volume | 50 L |
| Operational style | PLC control system, 5.7 inch colorful touch screen |
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It fills powdery and granular materials.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is an auger filler?
An auger filler doses powder with a turning screw. In the MJ-1B3, a servo-driven auger takes powder from the hopper, where an agitator keeps it feeding, and fills it by weight into bags of 0.1 to 5 kg.
How does an auger filler work?
Powder or granules go into the hopper, and the agitator keeps them feeding into the auger. A servo motor drives the auger, which doses the material with weight feedback, and the filled weight goes into the bag, bottle or container.
What is a filler machine?
It is a machine that fills a measured amount of product into a package. The MJ-1B3 is a semi-automatic one, with a speed of 6 to 15 bags per minute, a PLC and a color touch screen.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Inquiry
Not sure which packing machine fits?
Tell us your product and bag weight. We reply with a suitable model.
