01 / 05Mixing · BW series

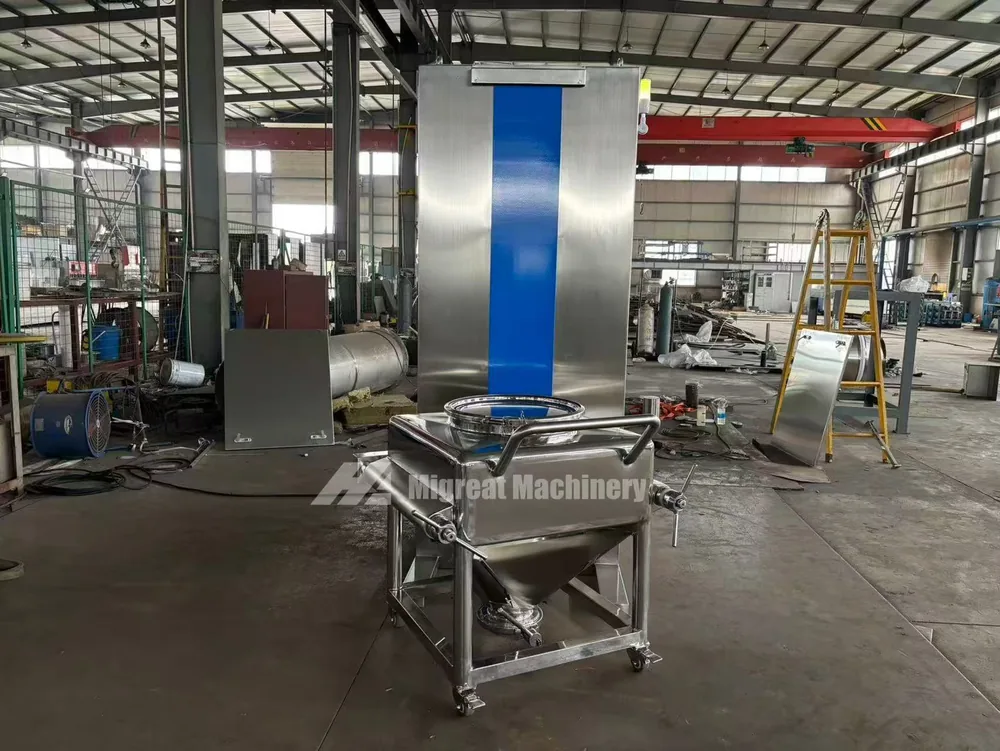

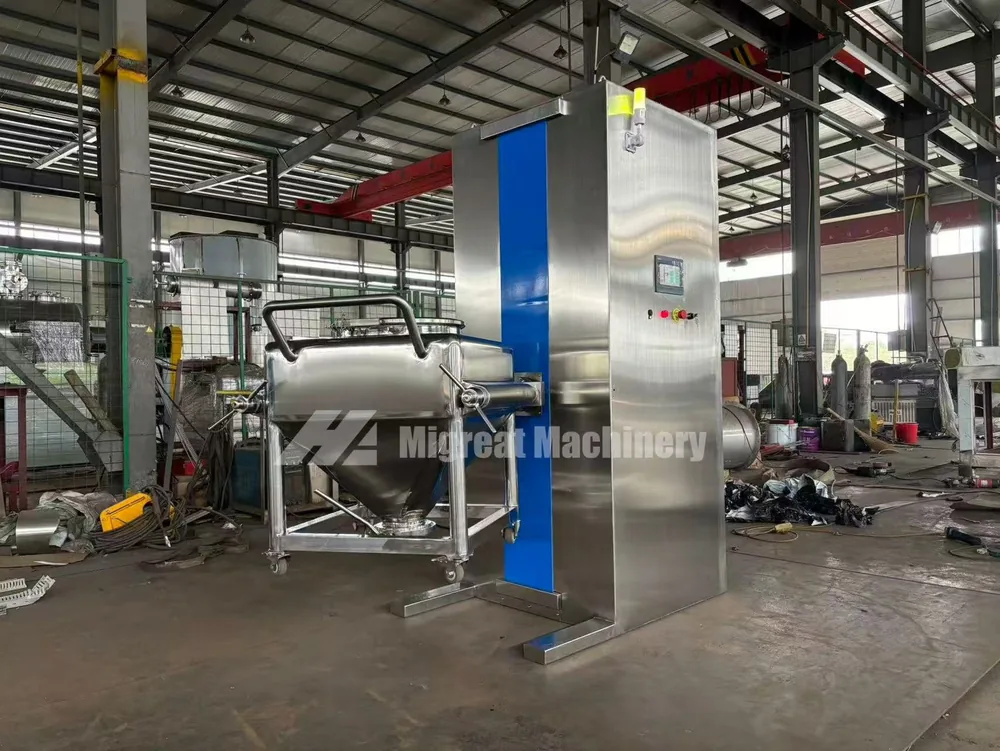

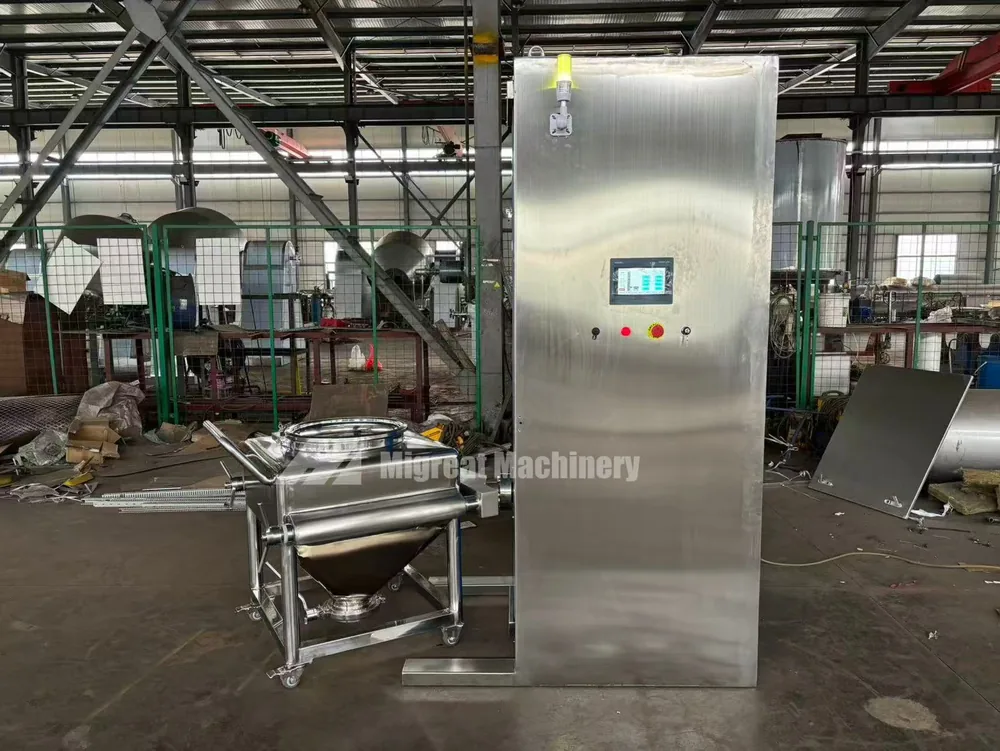

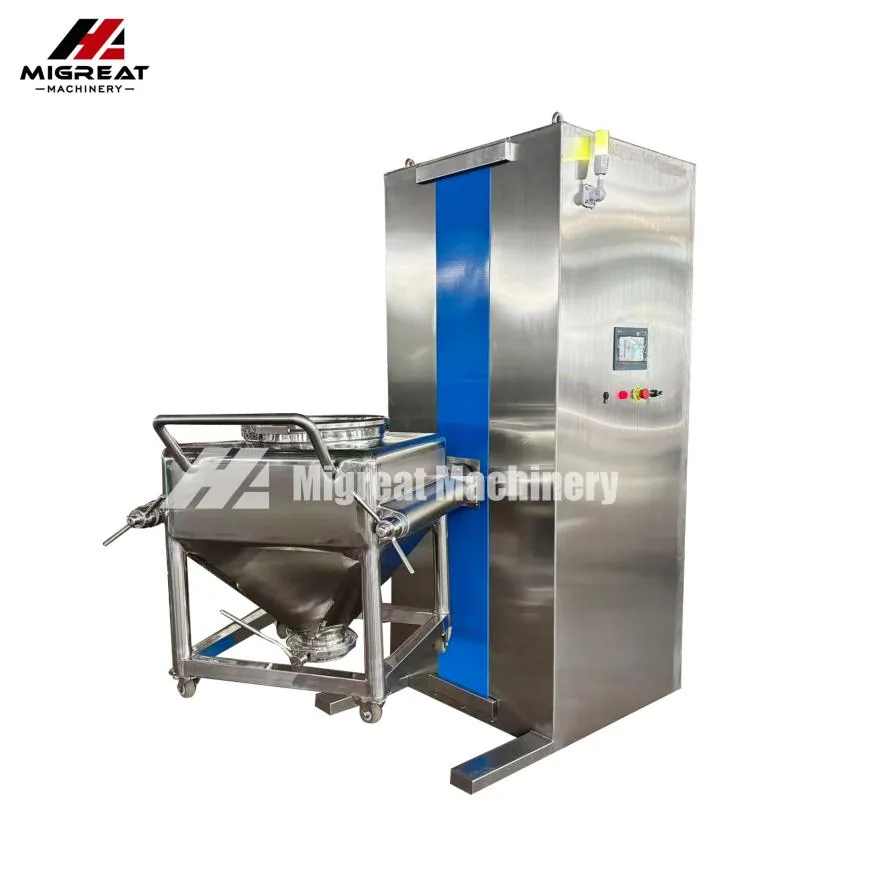

Hopper Mixer
A bin blender that clamps a removable hopper and turns it at low speed. The material is mixed in the same hopper it is loaded and discharged from.
- Hopper volume
- 100 L to 600 L, 5 models
- Loading weight
- 50 kg to 300 kg
- Spindle speed
- 3 to 20 rpm
- Motor power
- 1.5 kW to 4 kW
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Mix in the same hopper
The BW hopper mixer holds a mixing hopper in a rotating frame. A lifting motor and screw drive clamp the hopper, then a low speed, high torque gear motor turns it so the material mixes inside.
The axis of the rotating body is set at 30° to the mixing frame. Under the pressure of the hopper wall the material slides, stacks and disperses again and again. This is shear mixing and diffusion mixing.
Clamp
A lifting motor and screw nut drive hold the hopper in place. Clamping columns stop it sliding sideways while it turns.
Mix
A low speed, high torque gear motor turns the rotating body. Speed is set by variable frequency control.
Release
The same hopper is lowered and moved away to the next step.
The range in numbers
- 5Models
From BW-100 to BW-600
- 100 to 600L
Maximum hopper volume
- 50 to 300kg
Maximum loading weight
- 3 to 20rpm
Spindle speed
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Clamped, sealed and easy to clean
Stainless steel contact parts and a frame with no cleaning dead corners.
Safe clamping
The screw nut drive locks itself, and clamping columns at the top corners keep the hopper from sliding while it mixes.
Stainless frame
The rotating body is welded from carbon profiles, rust-proofed and covered with SS304 sheet. The rotating body and guide rod are SS304.
Sealed lubrication
The lubrication points of the guide rod and screw nut are fully sealed, so there is no leakage and no contamination of the product.
Adjustable speed
Variable frequency control sets the mixing speed, with stepless adjustment.
Shear and diffusion
The 30° axis gives repeated sliding, stacking and dispersing for even mixing.
GMP base
The base cover is SS304 with surface roughness Ra ≤ 0.8. There are no cleaning dead corners or exposed threads.
Build it your way
Size
Five models from BW-100 to BW-600.

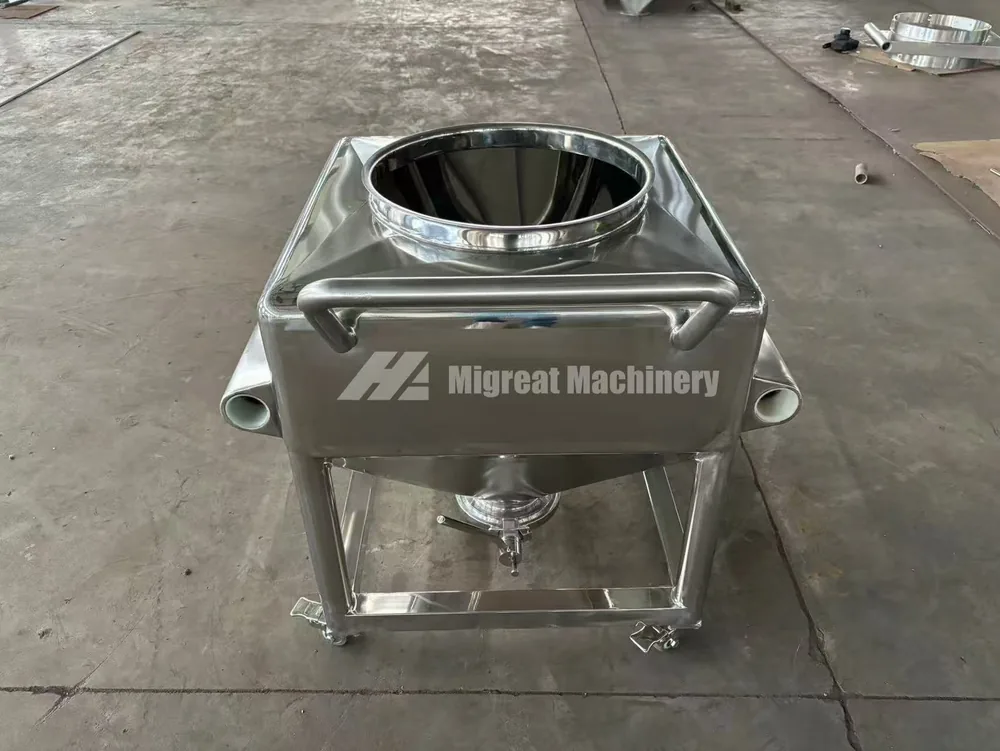

Hopper
A removable hopper, clamped in the frame.
Material
SS304 stainless steel contact parts.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by hopper volume
Hopper volume is in liters, loading weight in kilograms, spindle speed in rpm, motor power in kilowatts and total weight in kilograms.
| Model | Maximum hopper volume (L) | Max. loading volume (L) | Max. loading weight (kg) | Spindle speed (rpm) | Motor power (kW) | Total weight (kg) | Overall dimension L x W x H (mm) |
|---|---|---|---|---|---|---|---|
| BW-100 | 100 | 80 | 50 | 3-20 | 1.5 | 600 | 2300 x 1500 x 1500 |
| BW-200 | 200 | 160 | 100 | 3-20 | 3 | 800 | 2500 x 1800 x 2000 |
| BW-300 | 300 | 240 | 150 | 3-20 | 3 | 1000 | 2500 x 1900 x 2100 |
| BW-400 | 400 | 320 | 200 | 3-15 | 4 | 1200 | 2600 x 2100 x 2300 |
| BW-600 | 600 | 480 | 300 | 3-15 | 4 | 1400 | 2800 x 2300 x 2500 |
Showing 0 of 5 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It mixes powders and granules in batches.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is the working principle of a bin blender?
The BW clamps a removable hopper in a rotating frame, and a low speed, high torque gear motor turns it. The rotating axis is set at 30 degrees to the mixing frame, so the material slides, stacks and disperses again and again. That is shear mixing and diffusion mixing.
What is a blender container called?
On a bin blender it is called the hopper or bin. The BW hopper is removable. The material is loaded, mixed and discharged in the same hopper, and the hopper is then lowered and moved away to the next step.
What is a bin used for?
On the BW, the bin is the mixing vessel. You load and mix in it, and then move it to the next step. It holds 100 L to 600 L, with a loading weight of 50 kg to 300 kg, and the contact parts are SS304 stainless steel.
