01 / 05Granulation · FL series

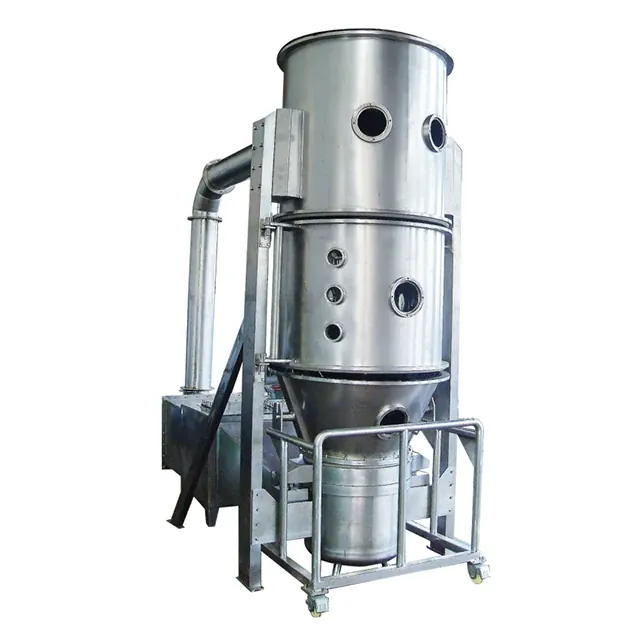

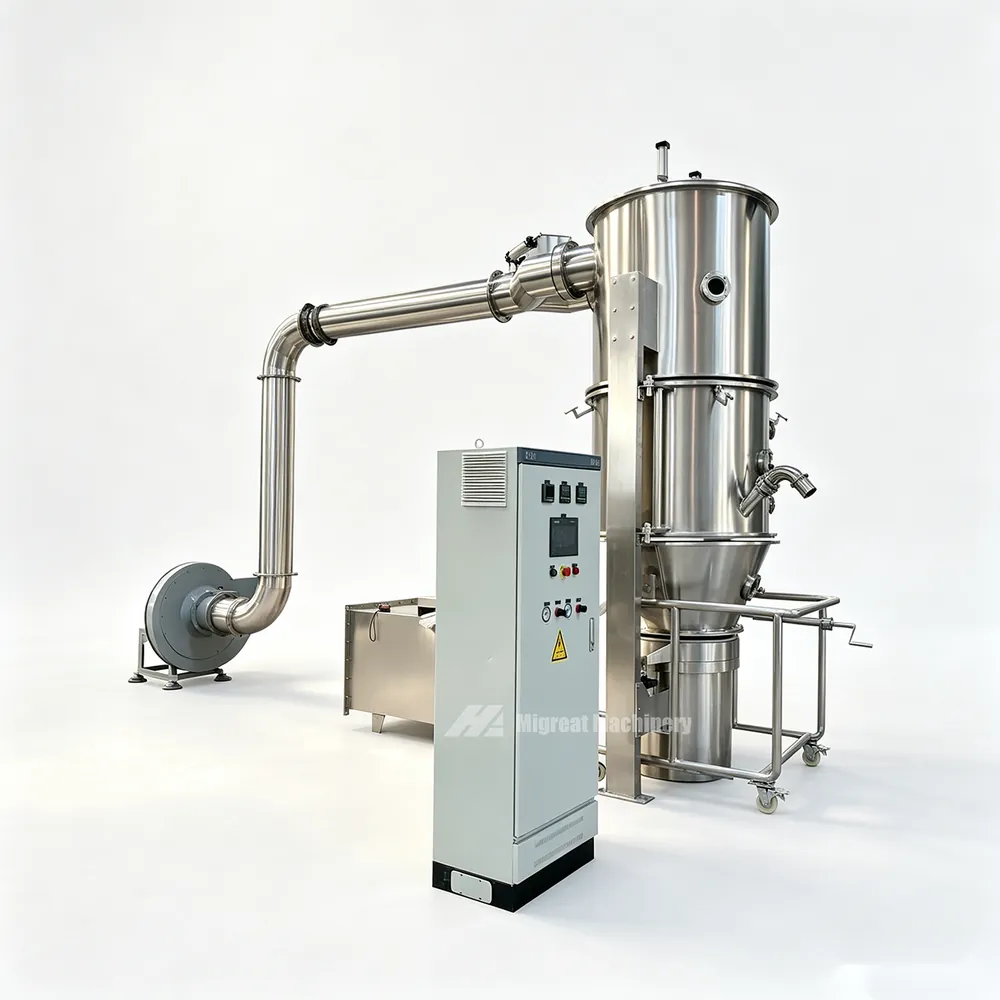

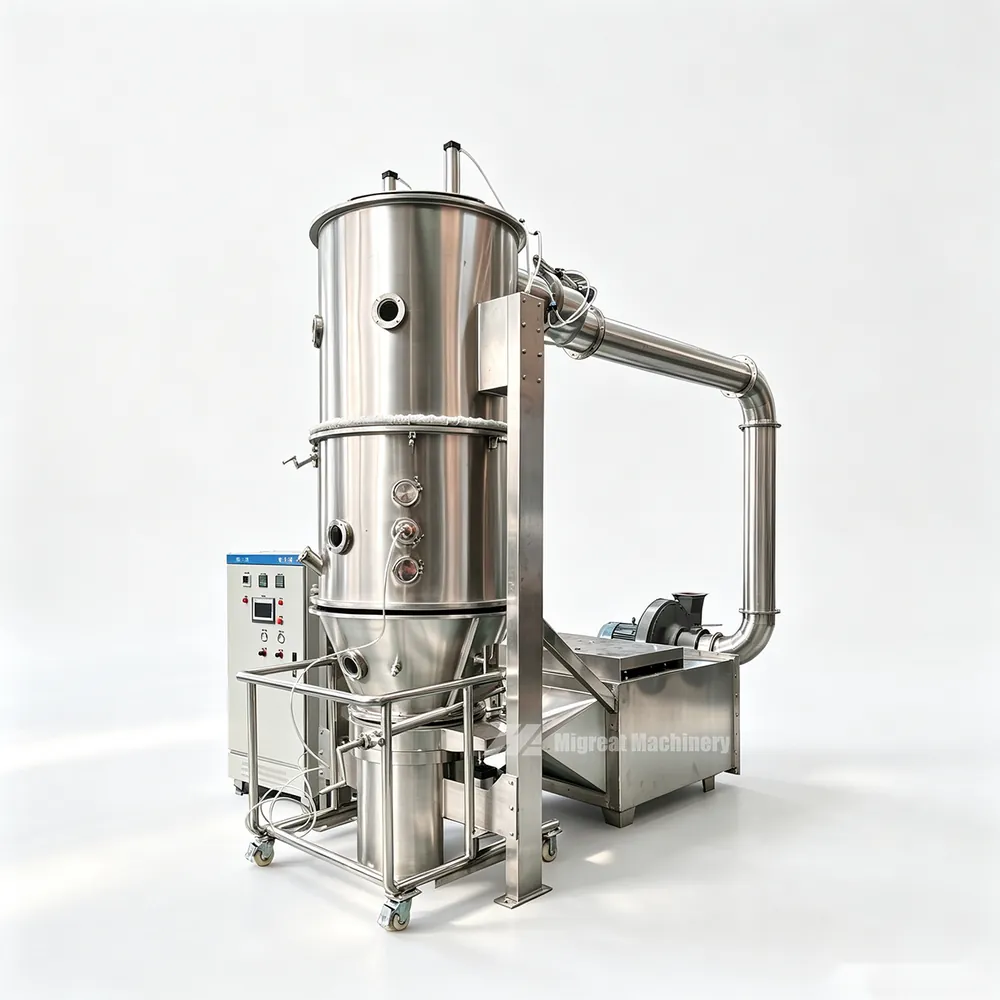

Fluid Bed Granulator Dryer
A closed fluid bed granulator dryer. It fluidizes powder with hot air, sprays binder to form granules and dries them in the same bed.
- Models
- 10 sizes, FL-5 to FL-500
- Process
- Granulate and dry in one bed
- Spray system
- Peristaltic pump and spray nozzle
- Noise
- Below 75 dB
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Granulate and dry in one closed bed

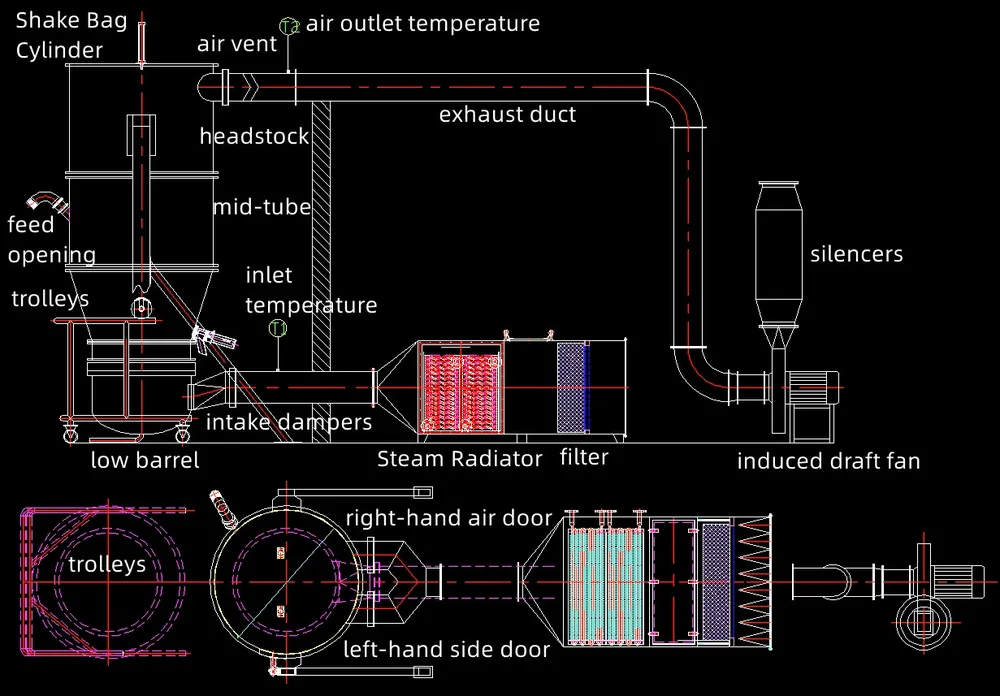

In the FL fluid bed granulator, powder is lifted by hot air and a nozzle sprays binder onto it. The particles stick together into granules and dry in the same bed.
The whole process is closed. A three dimensional oblique discharge empties the bowl, and the machine meets GMP.
Fluidize
Hot air lifts the powder in the bowl.
Spray
A nozzle sprays binder, and the powder forms granules.
Dry
The granules dry in the same bed and leave by oblique discharge.
The range in numbers
- 10Models
FL-5 to FL-500
- 1Machine
Mix, granulate, dry
- ClosedProcess
Meets GMP
- <75dB
Noise

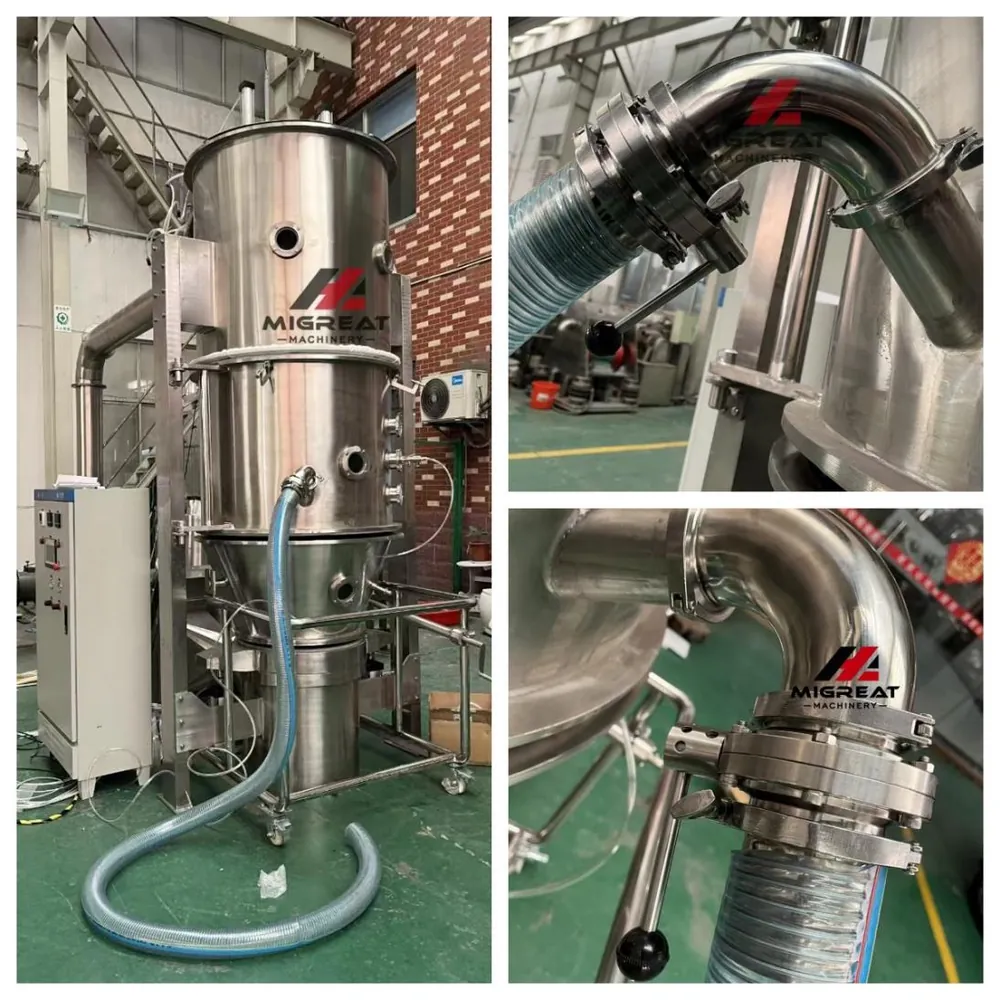

More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Closed, easy to control

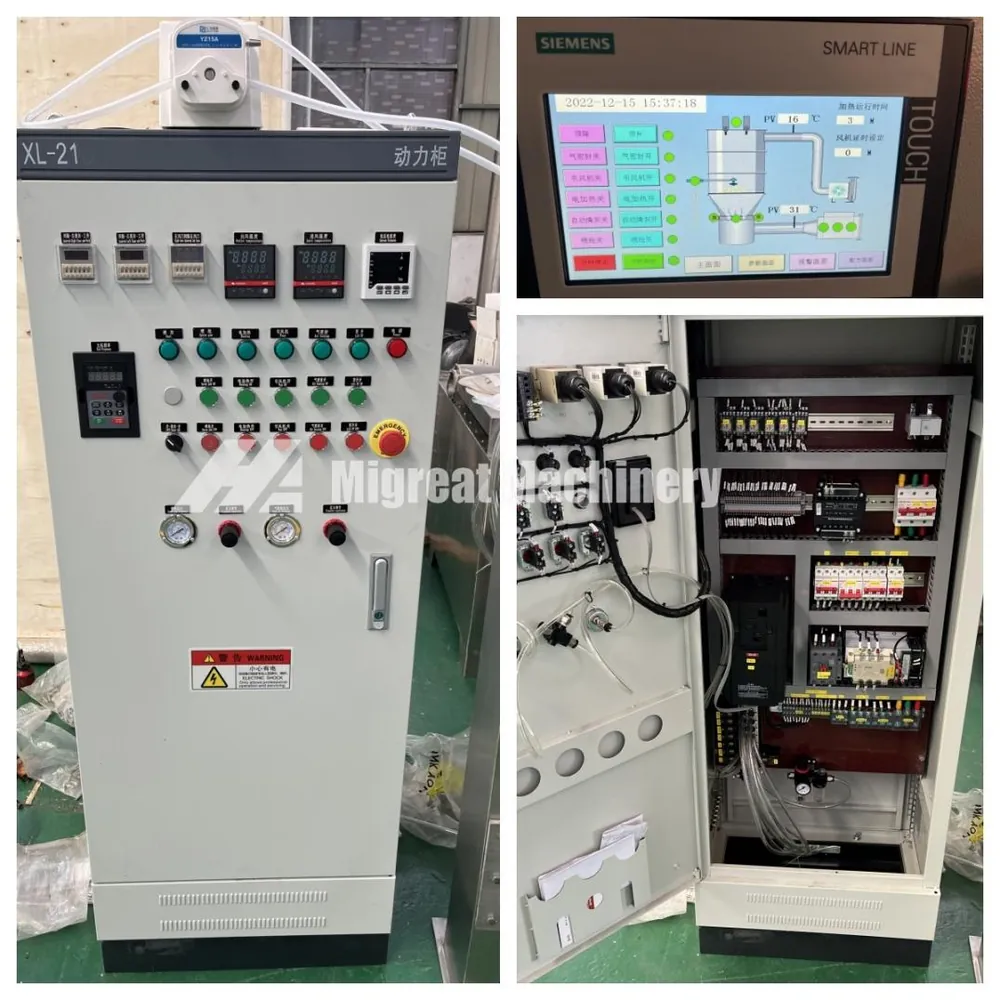

Control can include terminal control, data recording and management levels.
Three steps, one machine
Mixing, granulating and drying share one bed.
Closed process
The system is closed, which protects the product and the operator.
Oblique discharge
Three dimensional oblique discharge empties the bowl cleanly.
GMP
The design meets GMP.
Data control
Terminal control, data recording and management levels are available.
Low noise
Noise is below 75 dB.
Build it your way
Size
Ten models from FL-5 to FL-500.
Control
Terminal control and data recording.
GMP
Small floor space and no dead corner. The structure meets GMP.

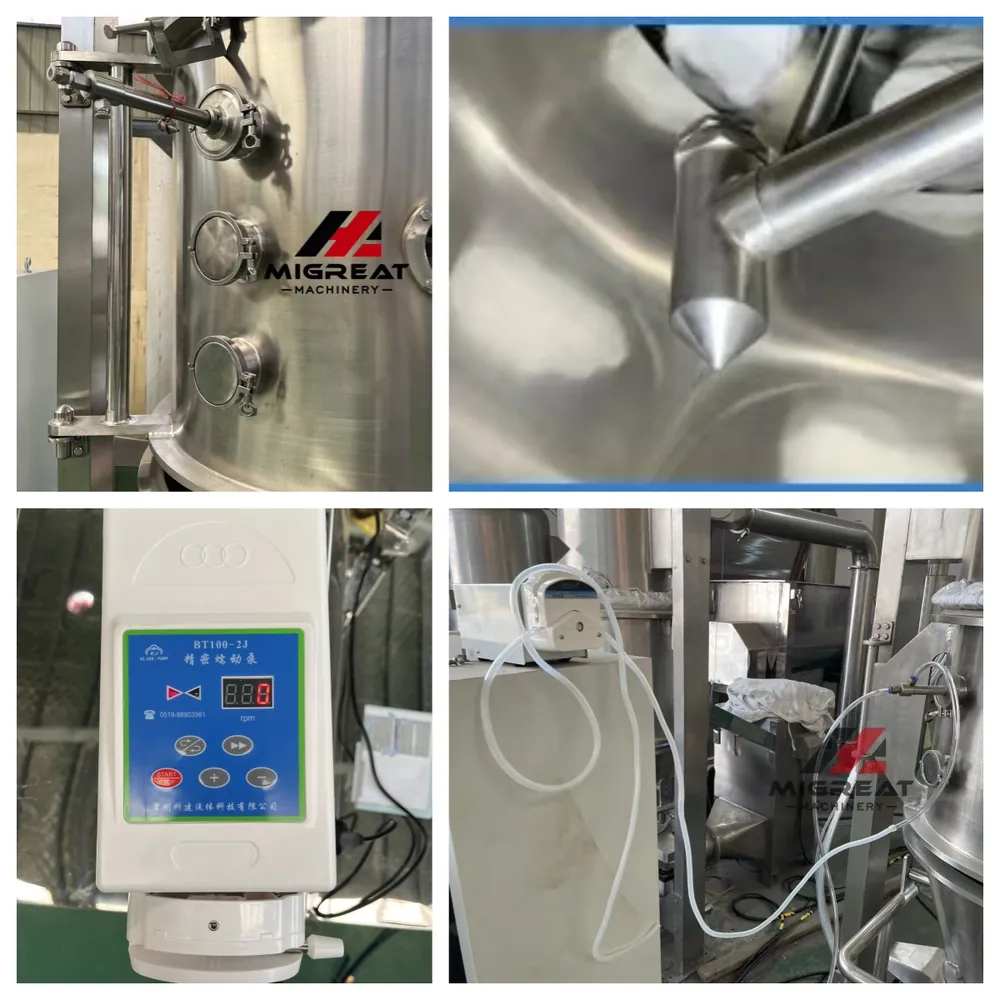

Spray system
Peristaltic pump and spray nozzle.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by model
Container volume and batch capacity are listed for each model.
| Model | Container volume (L) | Batch capacity, min / max (kg) | Fan power (kW) | Steam (kg/h) | Compressed air (m³/min) | Size L x W x H (m) |
|---|---|---|---|---|---|---|
| FL-5 | 22 | 4 / 6 | 3 | 23 | 1.3 | 1.2 x 0.6 x 2.1 |
| FL-15 | 45 | 10 / 20 | 4 | 42 | 0.3 | 1.25 x 0.9 x 2.1 |
| FL-30 | 100 | 15 / 45 | 5.5 | 70 | 0.4 | 1.6 x 0.9 x 2.3 |
| FL-60 | 220 | 40 / 80 | 11 | 141 | 0.6 | 1.85 x 1.25 x 3 |
| FL-100 | 300 | 60 / 120 | 15 | 169 | 0.6 | 1.85 x 1.25 x 3 |
| FL-120 | 420 | 80 / 160 | 18.5 | 211 | 0.9 | 2.2 x 1.65 x 3.1 |
| FL-150 | 530 | 90 / 200 | 18.5 | 251 | 0.9 | 2.27 x 1.72 x 3.1 |
| FL-200 | 660 | 100 / 300 | 22 | 282 | 0.9 | 2.34 x 1.9 x 3.5 |
| FL-300 | 1000 | 150 / 450 | 30 | 366 | 1.3 | 2.8 x 1.9 x 3.8 |
| FL-500 | 1500 | 300 / 300 | 37 | 451 | 1.5 | 3 x 2.55 x 4.2 |
Showing 7 of 10 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It makes granules for tablets and capsules in pharmaceutical, food and chemical plants.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
How does a fluid bed granulator work?
Hot air lifts the powder in the bowl, and a nozzle sprays binder onto it. The particles stick together into granules, which dry in the same bed and leave by three dimensional oblique discharge.
What is a fluidized bed used for?
The FL uses it to mix, granulate and dry in one bed. The whole process is closed, which protects the product and the operator, and the machine meets GMP.
How is wet granulation done?
In the FL, a peristaltic pump feeds binder to a spray nozzle that sprays it onto powder held in the air stream. Granules form and dry in the same bed. Our GHL high shear wet mixing granulator does it in a closed cylinder instead.
