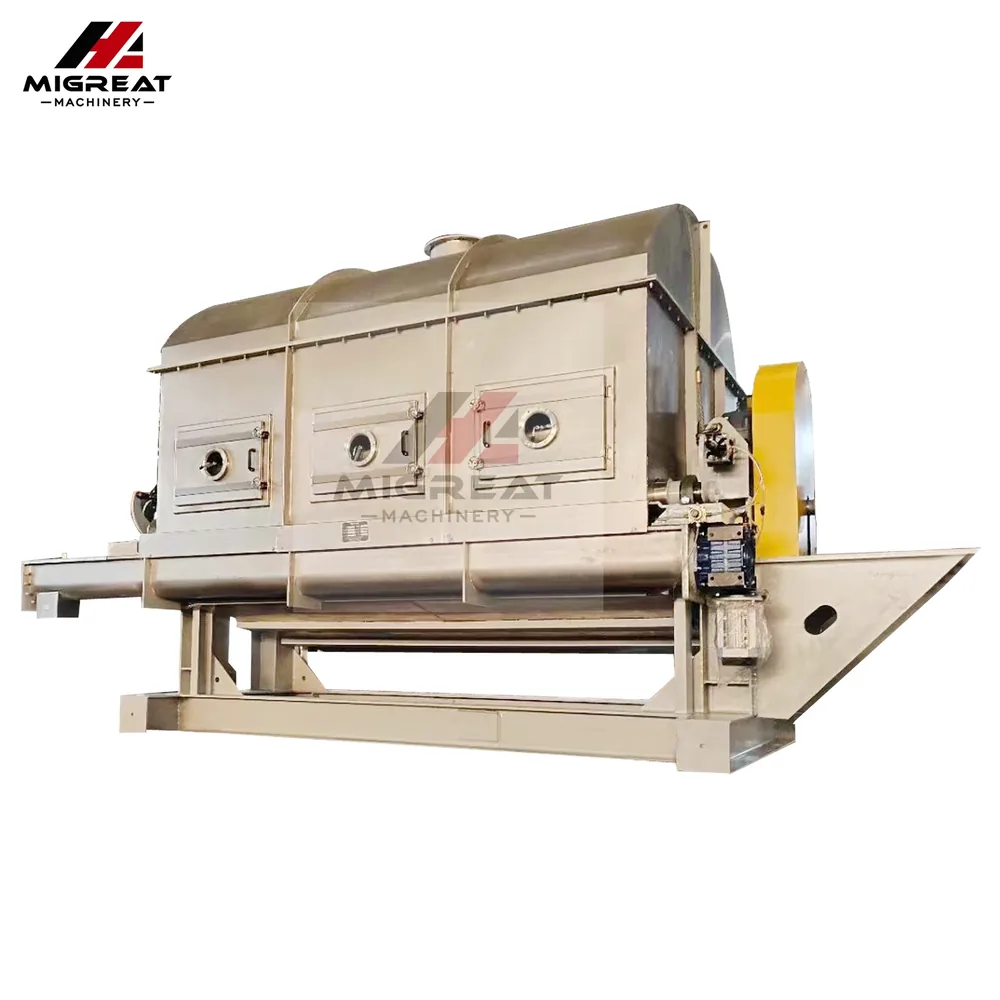

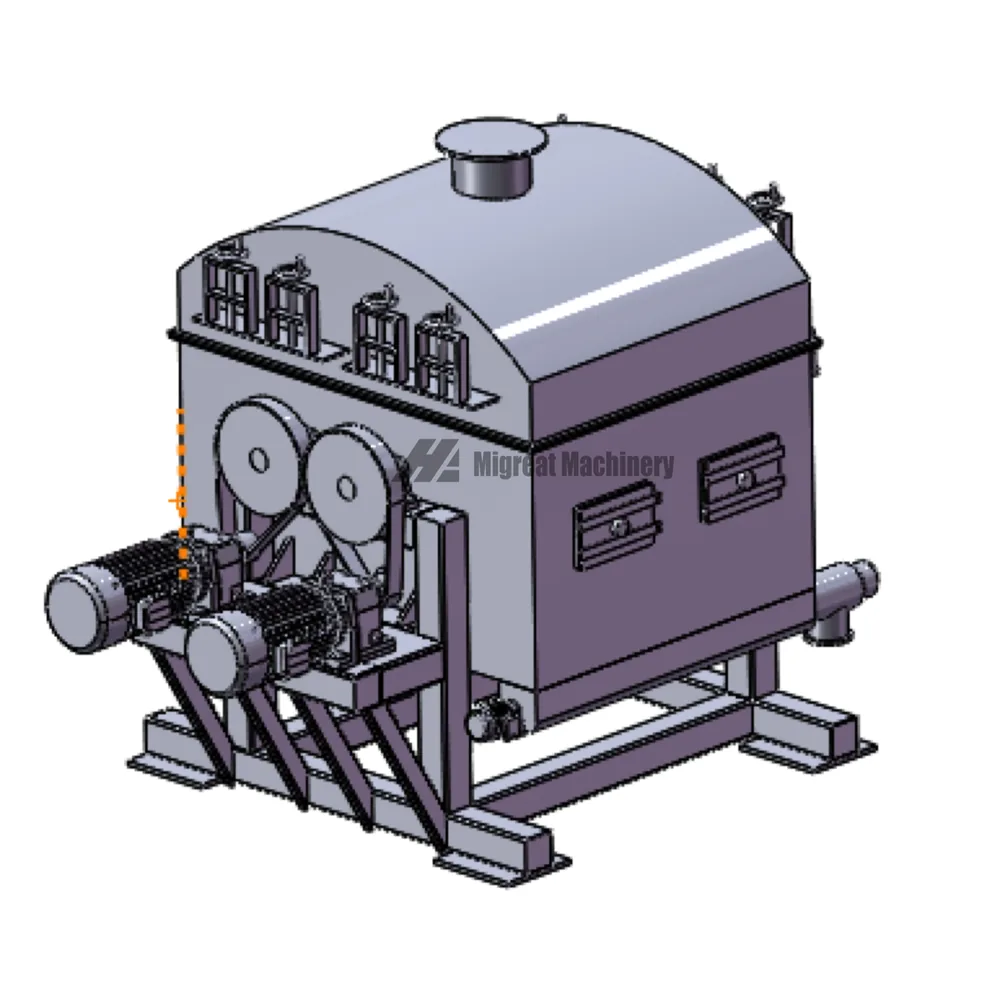

Drum Scraper Dryer
A continuous drum scraper dryer. A thin film of liquid or paste dries on a heated drum and a blade scrapes it off.
- Heating area
- 1.12 m² to 10.6 m², 9 models
- Drying capacity
- 40 to 630 kg/h
- Drying time
- 10 to 300 seconds
- Thermal efficiency
- Up to 70 to 80%
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
A thin film, dried in seconds
The HG drum scraper dryer is rotating continuous drying equipment with internal heat conduction. A film of material adheres to the drum from the trough under it. Heat passes through the drum wall into the film and evaporates the moisture.
The dried product is scraped off by a blade on the drum surface and falls to the screw conveyor under the blade, which carries it away to be collected and packed.
Coat
The rotating drum picks up a film of material from the trough below it.
Dry
Heat passes through the drum wall into the film and evaporates the moisture.
Scrape
A blade removes the dried product, and a screw conveyor carries it away.
The range in numbers
- 9Models
From HG-600 to HG-1800A
- 1.12 to 10.6m²
Effective heating area
- 40 to 630kg/h
Drying capacity
- 10 to 300s
Usual drying cycle
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Heat goes straight into the film
Feed concentration, film thickness, medium temperature and drum speed can each be adjusted.
High thermal efficiency
Heat moves by conduction in one direction, so apart from cover loss and radiation the heat evaporates the film. Thermal efficiency reaches 70 to 80%.
Flexible
The feed concentration, film thickness, heating medium temperature and drum speed can be adjusted, and they do not depend on each other.
Short drying time
The drying cycle is generally only 10 to 300 seconds, which suits heat-sensitive material. The dryer can also run under vacuum.
High drying rate
The film is thin, generally 0.3 to 1.5 mm, so the surface keeps evaporating 20 to 70 kg H₂O per m² per hour.
Continuous output
Dried product drops onto a screw conveyor and is collected and packed.
Nine sizes
Roller sizes from Φ600×800 mm to Φ1800×2000 mm.
Build it your way
Size
Nine models from HG-600 to HG-1800A.
Vacuum
The dryer can run under reduced pressure.
Heating
Steam heats the drum.
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by drying capacity
Pick the model from the drying capacity and heating area you need.
| Model | Roller size (mm) | Effective heating area (m²) | Drying capacity (kg/h) | Steam consumption (kg/h) | Power (kW) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HG-600 | Φ600 x 800 | 1.12 | 40-70 | 100-175 | 1.1 | 1700 x 800 x 1500 | 850 |
| HG-700 | Φ700 x 1000 | 1.65 | 60-90 | 150-225 | 2.05 | 2100 x 1000 x 1800 | 1210 |
| HG-800 | Φ800 x 1200 | 2.26 | 90-130 | 225-325 | 3.75 | 2500 x 1100 x 1980 | 1700 |
| HG-1000 | Φ1000 x 1400 | 3.3 | 130-190 | 325-475 | 4.75 | 2700 x 1300 x 2250 | 2100 |
| HG-1200 | Φ1200 x 1500 | 4.24 | 160-250 | 400-625 | 4.75 | 2800 x 1500 x 2450 | 2650 |
| HG-1400 | Φ1400 x 1600 | 5.28 | 210-310 | 525-775 | 6.25 | 3150 x 1700 x 2800 | 3220 |
| HG-1600 | Φ1600 x 1800 | 6.79 | 270-400 | 675-1000 | 6.25 | 3350 x 1900 x 3150 | 4350 |
| HG-1800 | Φ1800 x 2000 | 8.48 | 330-500 | 825-1250 | 8.6 | 3600 x 2050 x 3500 | 5100 |
| HG-1800A | Φ1800 x 2000 | 10.6 | 420-630 | 1050-1575 | 8.6 | 4100 x 2050 x 3500 | 6150 |
