01 / 05Mixing · V series

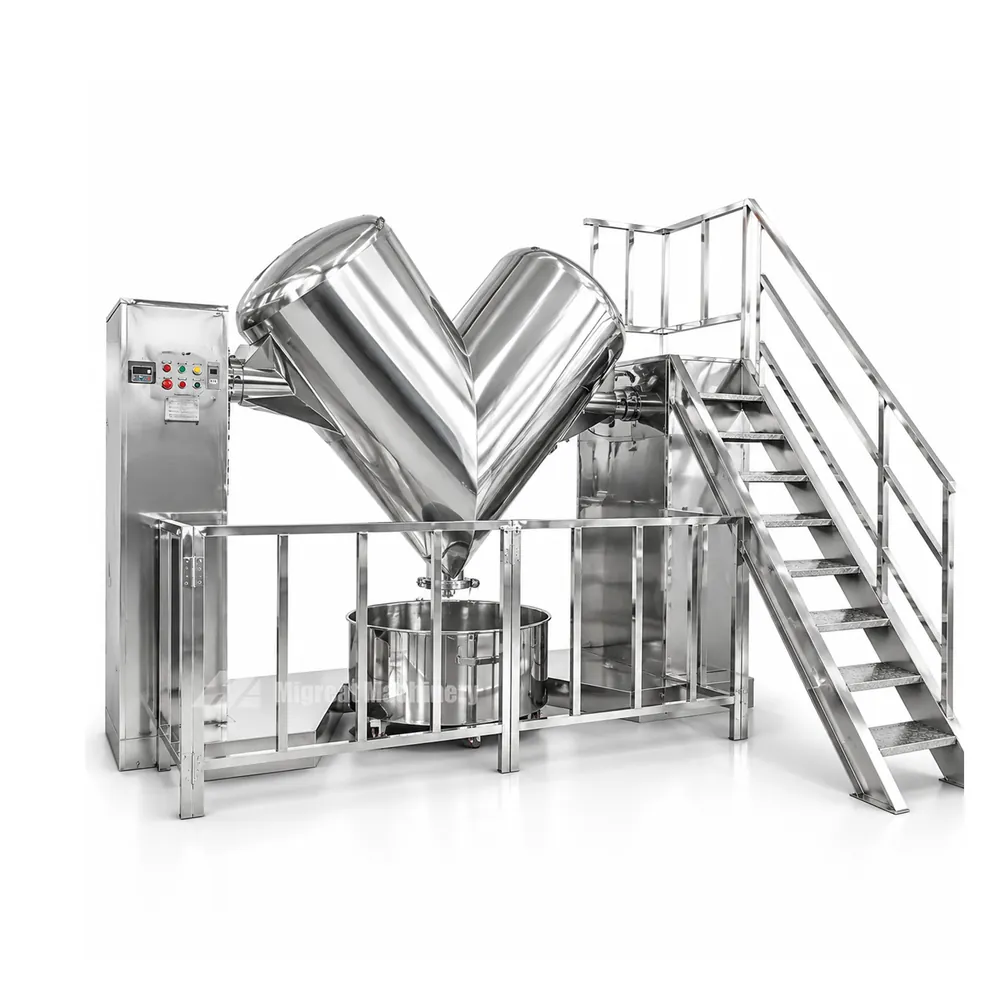

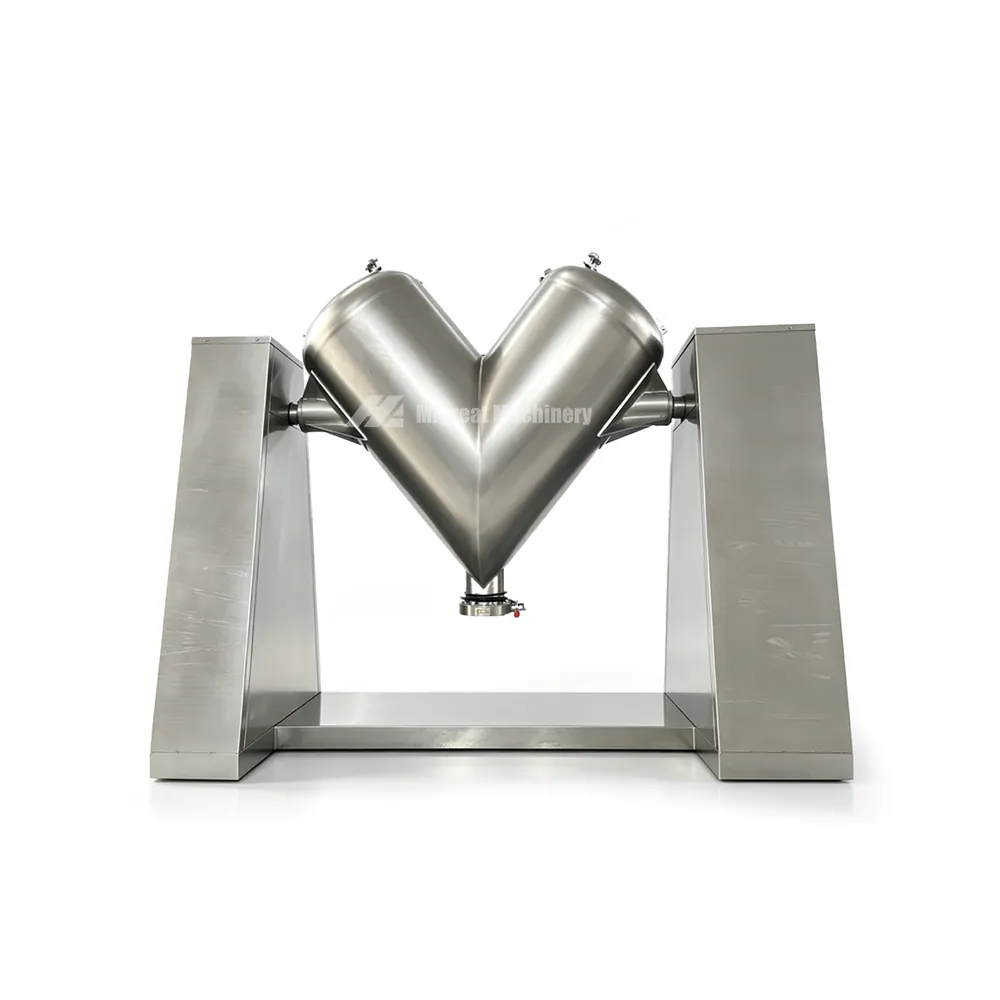

V Shape Mixer
A V blender (V barrel mixer) for dry powder and granule. It mixes fine powder, moist material and small amounts of additive evenly.
- Barrel volume
- 100 L to 2,000 L, 7 models
- Capacity
- 30 to 1,000 kg per batch
- Mixing time
- 3 to 15 min
- Contact material
- SUS304
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview

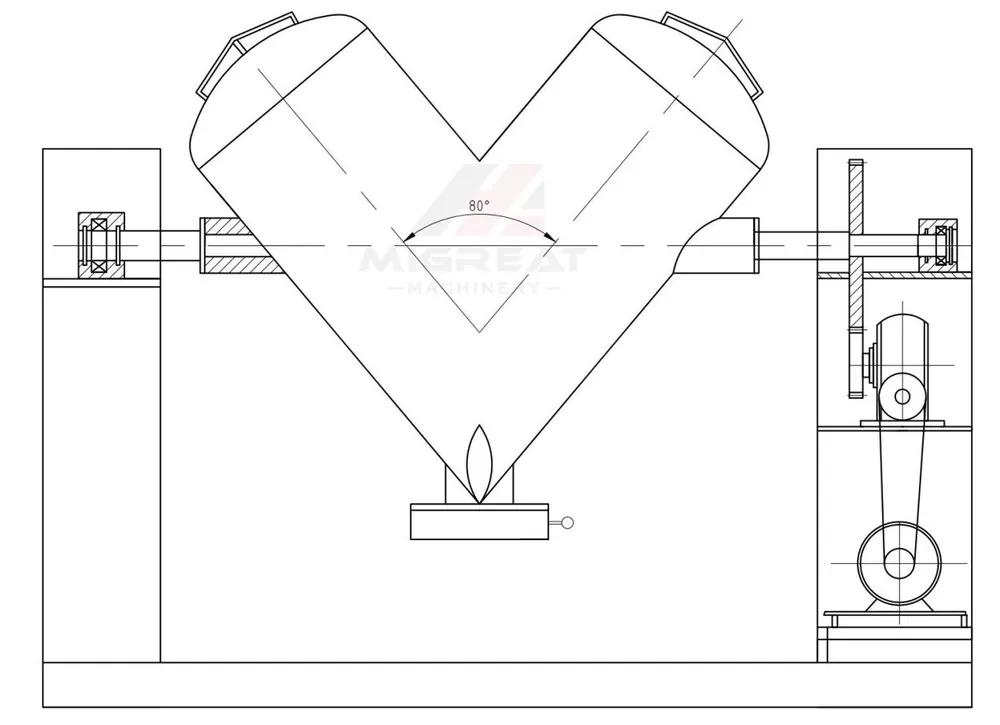

Even mixing in a V barrel
The V mixer mixes dry powder and granule for pharmacy and related industries. It is easy to operate and mixes evenly, and it works well with vacuum charging equipment.
It can mix fine powder, more than two kinds of powder, and material that contains water. It gives a good result with a small quantity of material or additive.
Charge
Load powder or granule. Vacuum charging equipment can be used.
Mix
The off-center canister body mixes thoroughly in 3 to 15 minutes.
Discharge
A butterfly valve at the bottom makes discharge easy.
The range in numbers
- 7Models
From V-100 to V-2000
- 100 to 2,000L
Barrel volume
- 3 to 15min
Mixing time
- 1.1 to 7.5kW
Power

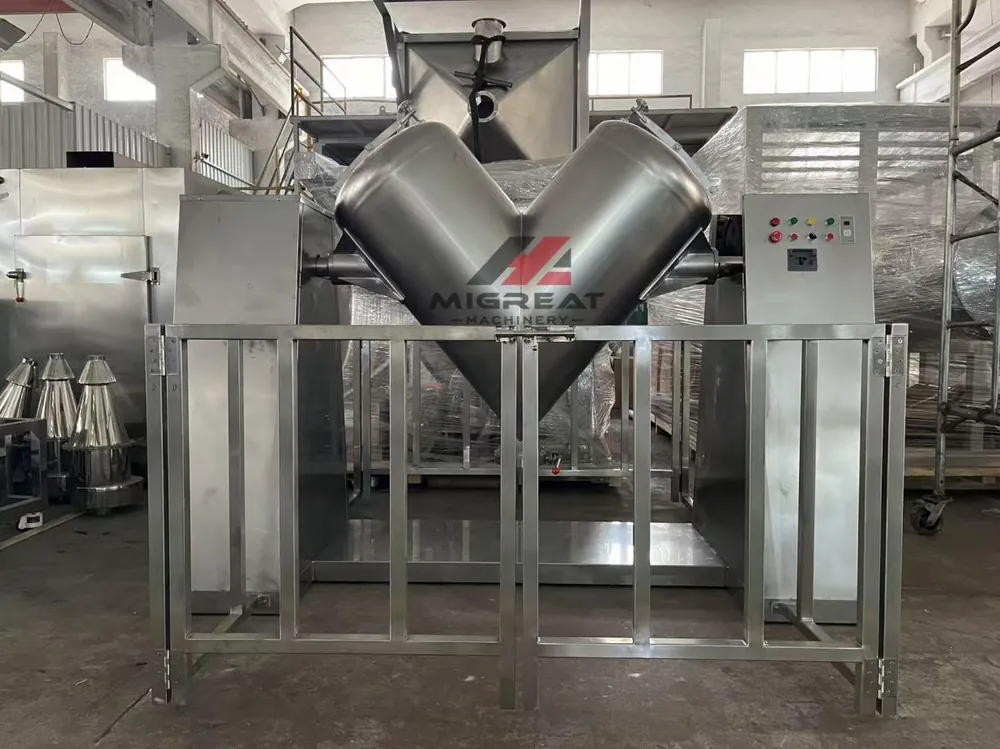

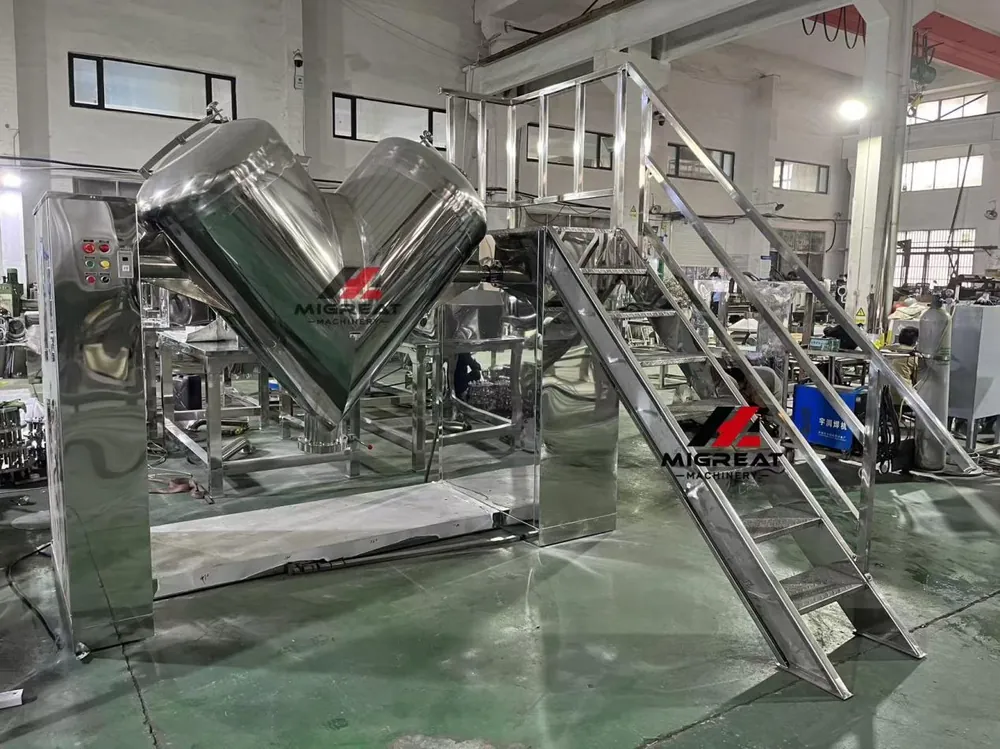

More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Easy to clean, no dead angle
The machine is stainless steel with a smooth inside, and it meets GMP.
Unbalanced barrel
The off-center canister body mixes thoroughly.
Handles small additives
It mixes a little additive evenly into the main material.
Easy discharge
A butterfly valve discharges the product, and the barrel is easy to install and clean.
No dead angle
The inside is smooth stainless steel and accords with GMP.
Certified
Migreat works to ISO 9001, and the mixer carries CE certification.
Stainless steel
Built in SUS304, or to your request.

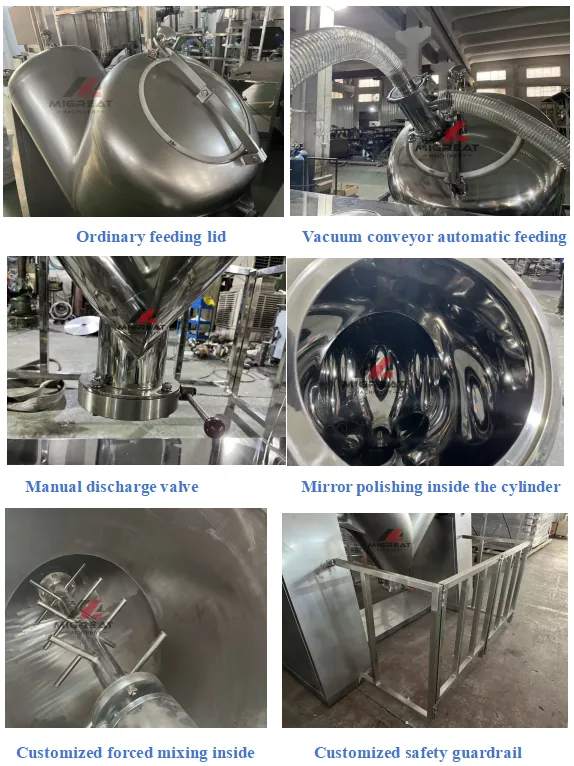

Build it your way
Stir bar
A stir bar can be added inside the mixing tank.
Spray
A spray system can spray liquid.
Vacuum
The mixer can work under vacuum.
Speed
Add a frequency changer to adjust the rotation speed.
Voltage
220 V, 380 V or to your requirement.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by volume
Capacity per batch is for reference and depends on material density.
| Model | Barrel volume (L) | Capacity (kg/batch) | Mixing time (min) | Blending speed (r/min) | Power (kW) | Overall size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| V-100 | 100 | 30-50 | 3-15 | 12 | 1.1 | 1600 x 600 x 1400 | 200 |
| V-200 | 200 | 60-100 | 3-15 | 12 | 1.1 | 1800 x 650 x 1550 | 300 |
| V-300 | 300 | 90-150 | 3-15 | 12 | 1.1 | 2000 x 700 x 1650 | 400 |
| V-500 | 500 | 150-250 | 3-15 | 12 | 2.2 | 2400 x 1000 x 1980 | 550 |
| V-1000 | 1000 | 300-500 | 3-15 | 10 | 4 | 2600 x 1200 x 2450 | 700 |
| V-1500 | 1500 | 450-750 | 3-15 | 10 | 5.5 | 3300 x 1400 x 2660 | 850 |
| V-2000 | 2000 | 600-1000 | 3-15 | 10 | 7.5 | 3700 x 1600 x 2900 | 1000 |
Showing 7 of 7 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It mixes dry powder and granule in pharmacy and other related industries.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is the working principle of a V-blender?
The V mixer has an off-center canister body, also called an unbalanced barrel. As it turns, the material splits and recombines, and it mixes thoroughly in 3 to 15 minutes.
How does a V blender work?
Load the powder or granule, using vacuum charging equipment if you have it. The V barrel turns and mixes the batch, and a butterfly valve at the bottom discharges it.
What is blender used for?
The V mixer mixes dry powder and granule for pharmacy and related industries. It handles fine powder, more than two kinds of powder, material that contains water, and a small amount of additive blended into a main material.
