01 / 04Grinding · PSJ series

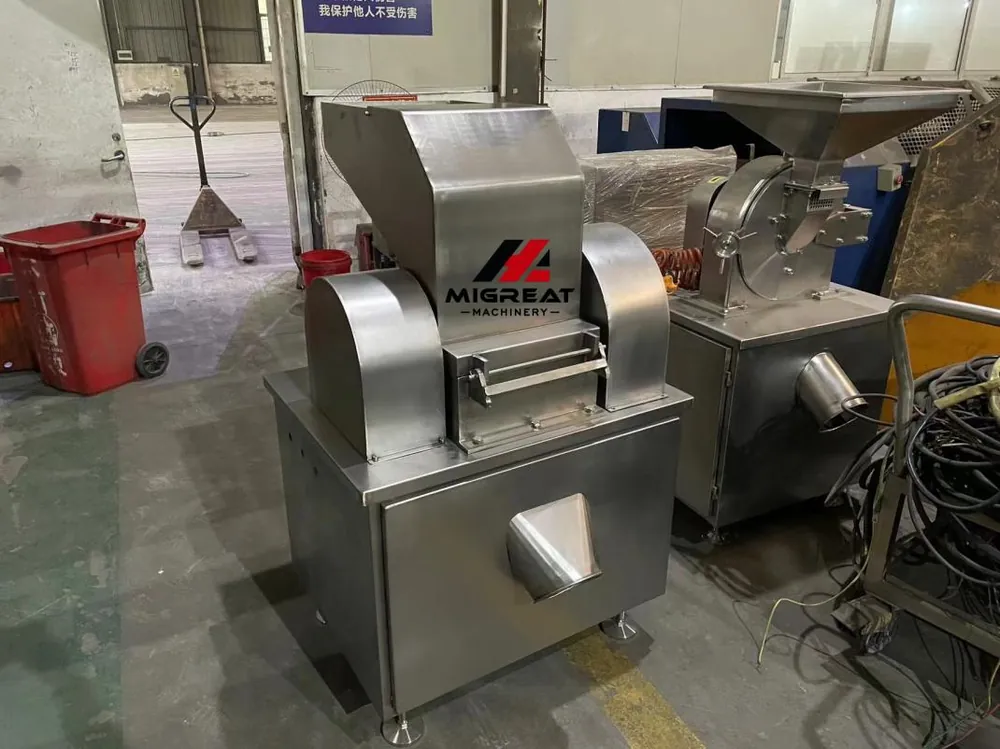

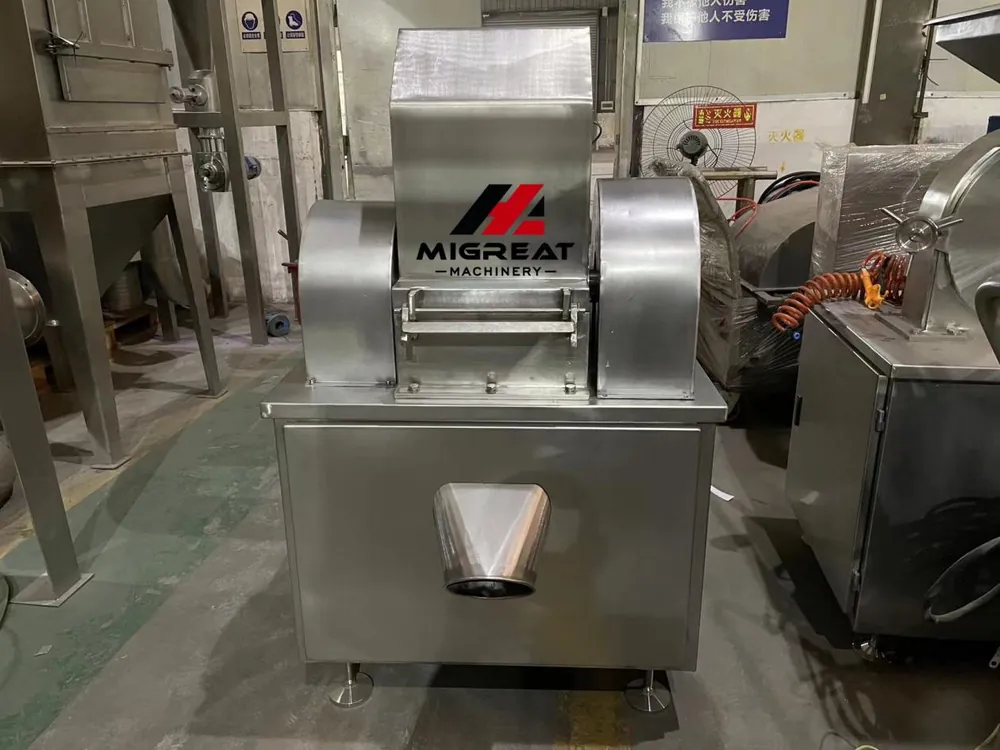

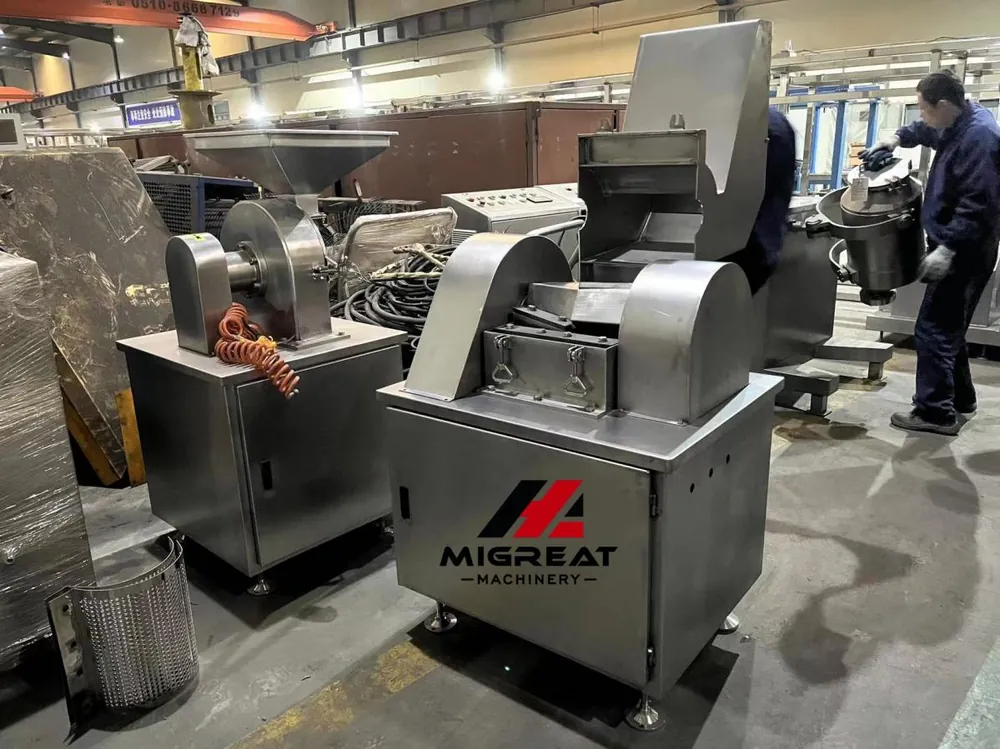

Coarse Crusher
A horizontal coarse crusher that breaks large pieces into particles of 2 to 20 mm before fine grinding.
- Capacity
- 10 to 800 kg/h, 5 models
- Output size
- 0.5 to 20 mm
- Motor
- 1.5 kW to 37 kW
- Screen
- 2, 3, 6 or 10 mm
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Large pieces to small particles
The PSJ coarse crusher is for rough processing. It crushes large pieces of material into small particles of 2 to 20 mm, for example spices, Himalayan salt and herbs.
The machine has a horizontal crushing structure.
Feed
Material enters the crushing chamber from the hopper.
Crush
The rotary knife and the fixed knife crush it by impact and shearing.
Discharge
Centrifugal force moves the crushed material to the outlet through the screen.
The range in numbers
- 5Models
From PSJ-80 to PSJ-1000
- 10 to 800kg/h
Capacity range
- 0.5 to 20mm
Output size
- 1.5 to 37kW
Motor
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Strong cut, simple to clean
The machine is wholly made of stainless steel with a simple structure.
Any material
It is not limited by the viscosity, hardness, softness or fiber of the material.

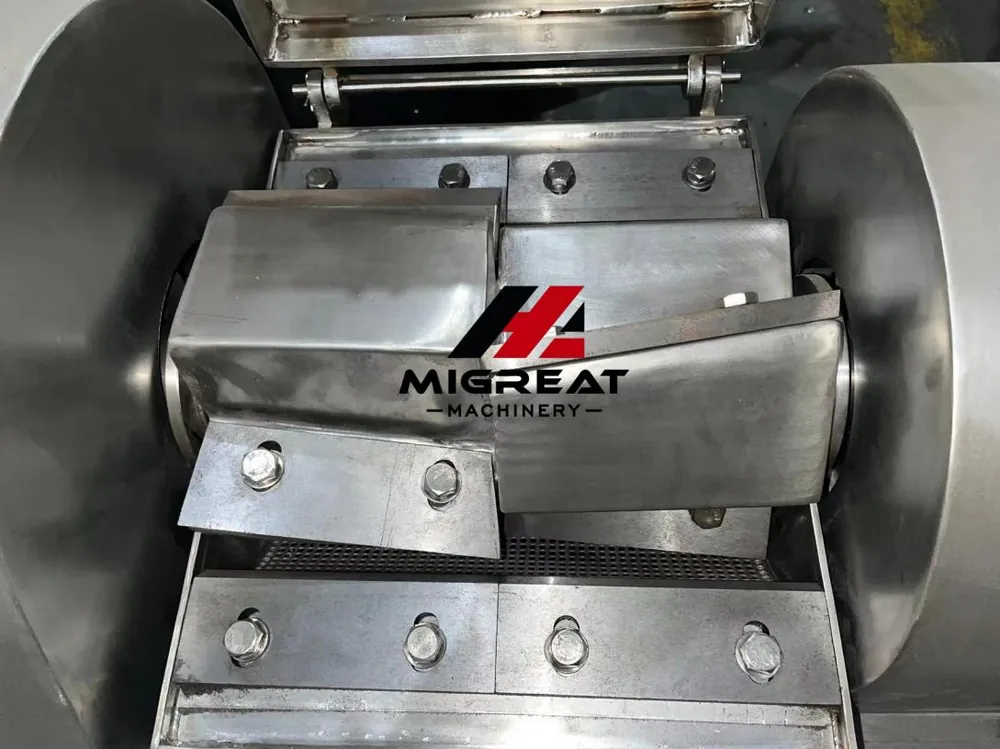

Rotary and fixed knives
Material is crushed by the impact and shearing of the rotary knife and the fixed knife.
Screen sets output size
Change the screen to get 2 mm, 3 mm, 6 mm or 10 mm pieces.
Stainless steel
The whole machine is stainless steel.
Easy to clean
Simple structure and convenient cleaning.
Low noise
Low noise while crushing.
Build it your way
Output size
Screens of 2, 3, 6 and 10 mm.
Size
Five models by capacity.
Contact material
SS304 crushing chambers and blades.
Next step
Pair it with a fine grinder for micro grinding.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by capacity
Feed size runs up to 150 mm on the larger models.
| Model | Capacity (kg/h) | Feed size (mm) | Crush size (mm) | Motor (kW) | Main speed (rpm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| PSJ-80 | 10-80 | ≤50 | 0.5-20 | 1.5 | 500 | 510 x 450 x 980 | 180 |
| PSJ-200 | 50-200 | ≤100 | 0.5-20 | 5.5 | 500 | 650 x 500 x 1100 | 280 |
| PSJ-300 | 100-400 | ≤100 | 0.5-20 | 11 | 400 | 900 x 700 x 1400 | 380 |
| PSJ-500 | 200-600 | ≤150 | 0.5-20 | 22 | 400 | 1200 x 1200 x 1700 | 450 |
| PSJ-1000 | 300-800 | ≤150 | 0.5-20 | 37 | 400 | 1500 x 1500 x 2200 | 650 |
Showing 5 of 5 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It crushes large pieces of spices, Himalayan salt and herbs into small particles of 2 to 20 mm. It is used in pharmaceutical, chemical and food industries, and is a complete set of equipment before the micro grinding process.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is the working principle of a crusher?
In the PSJ coarse crusher, material enters the crushing chamber from the hopper. The rotary knife and the fixed knife crush it by impact and shearing, and centrifugal force moves the crushed material to the outlet through the screen.
What is the best appliance for grinding spices?
At factory scale, the PSJ coarse crusher breaks large pieces of spices, Himalayan salt and herbs into particles of 2 to 20 mm. A fine grinder then does the micro grinding.
