01 / 05Mixing · W series
Double Cone Mixer
A double cone blender for dry powder and granular material. The tank rotates 360 degrees for an even, mild mix.
- Volume
- 50 L to 4,000 L, 11 models
- Uniformity
- Up to 99%
- Load coefficient
- Up to 0.7
- Contact material
- SS304, SS316 optional
- Built to your materialSize, material and motor set to your product.

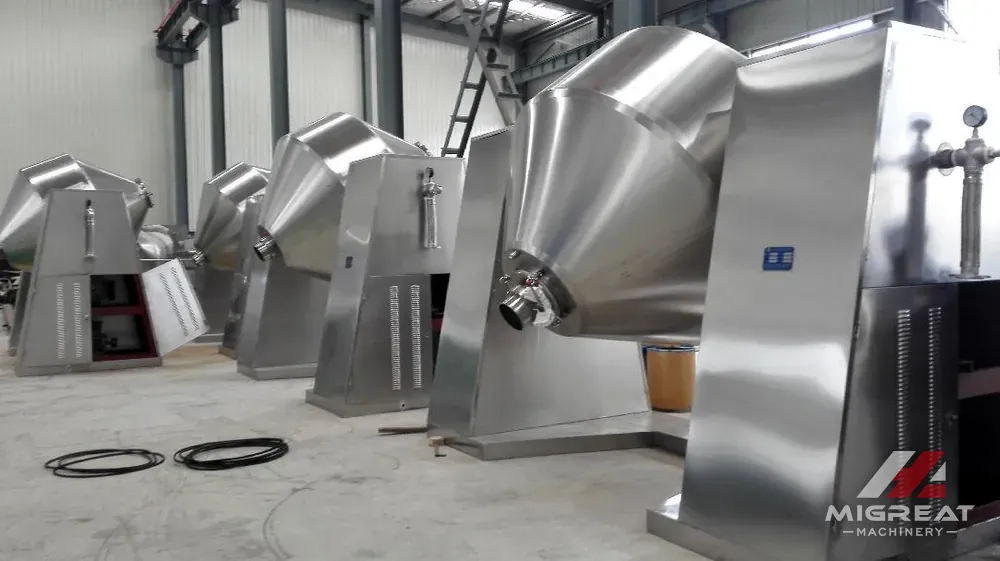

- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.
Overview
Mild mixing, up to 99% uniformity
The W double cone mixer mixes dry powder and dry granular material for the food, chemical, agriculture and other industries. The container rotates, and material moves in all directions inside it.
The maximum load coefficient is 0.7.
Load
Charge the tank. It can work with a vacuum conveyor for automatic, dust-free loading.
Rotate
The two cone tank turns 360 degrees. Material moves in every direction without segregation.
Discharge
Material leaves without residue.
The range in numbers
- 11Models
From W-50 to W-4000
- 50 to 4,000L
Total volume
- Up to 99%Uniformity
Mixing result
- 0.75 to 18.5kW
Power

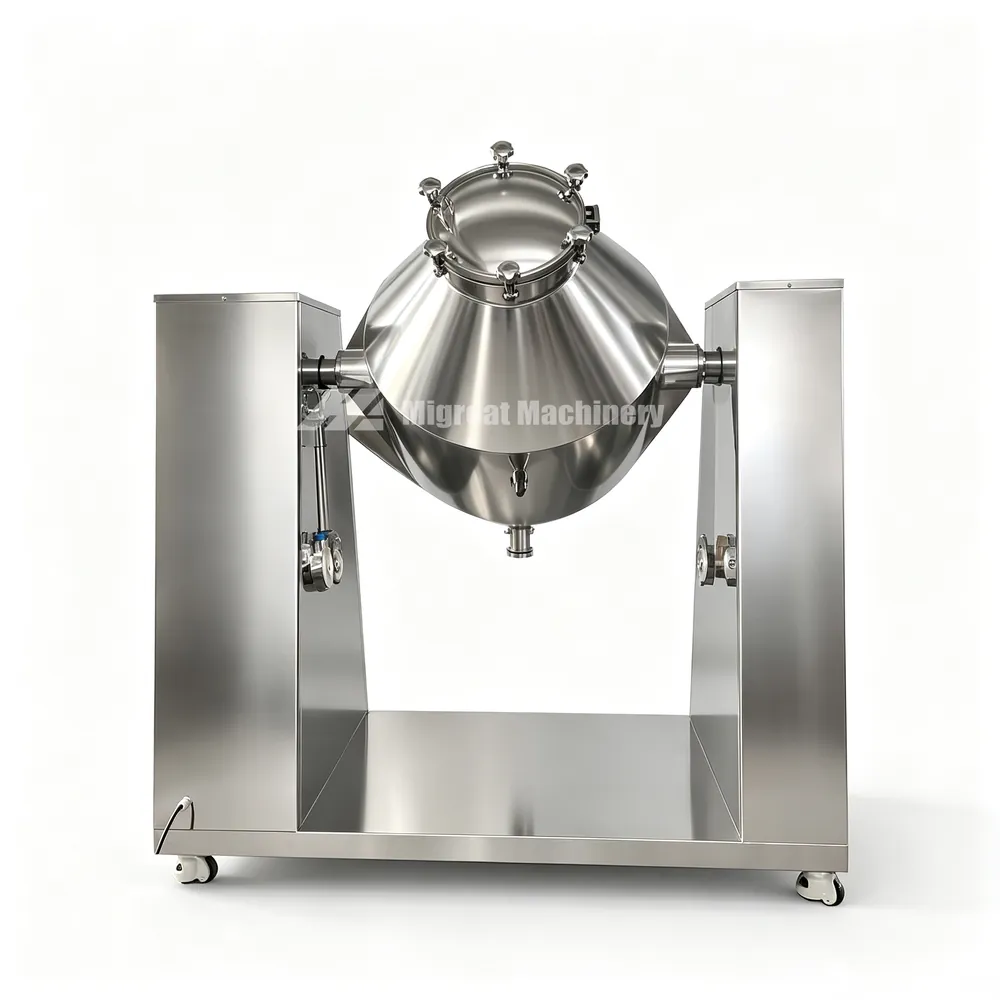

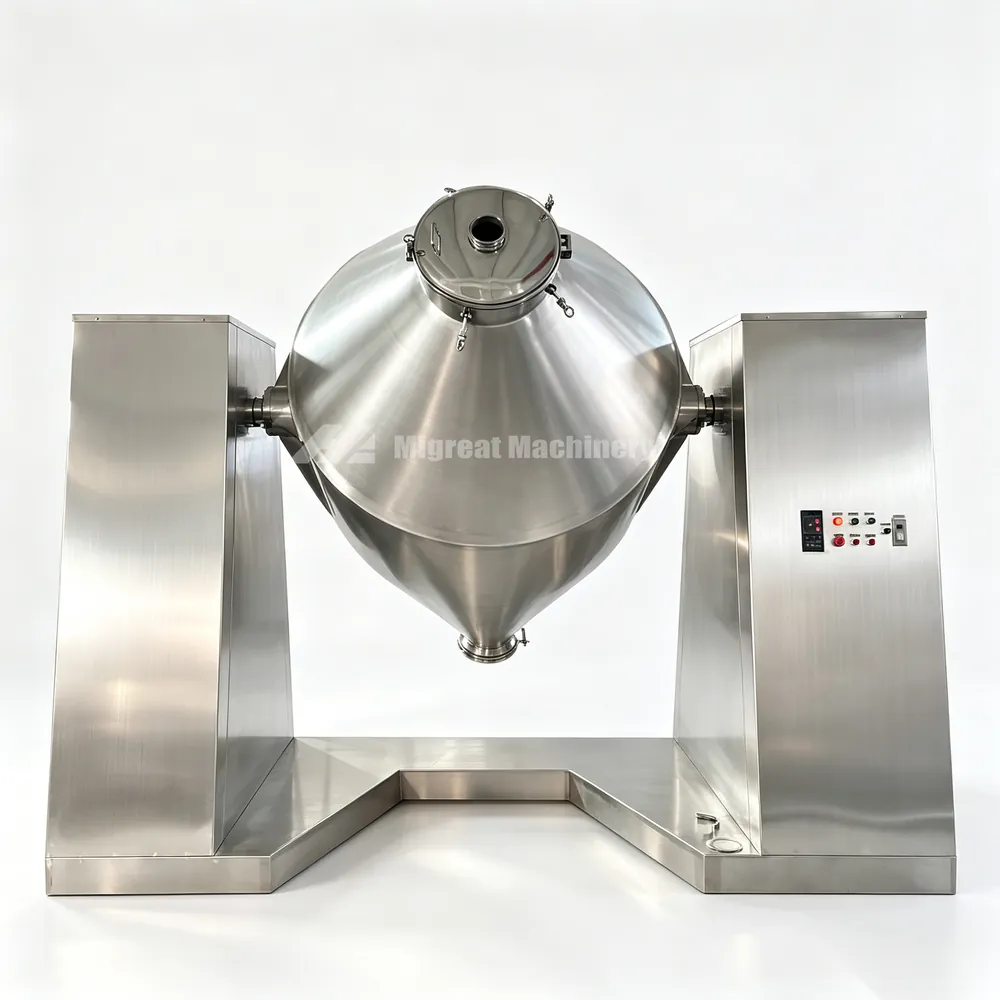

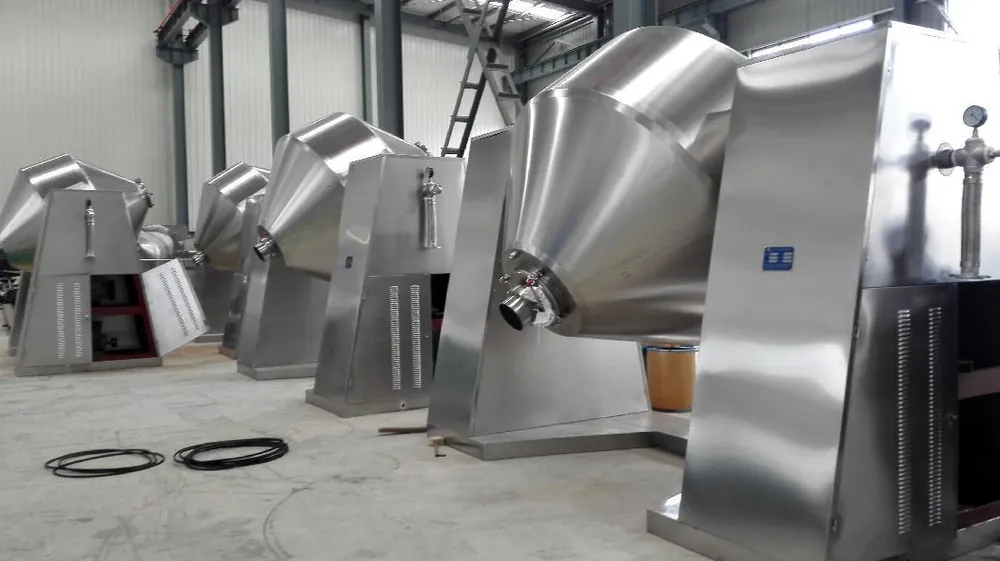

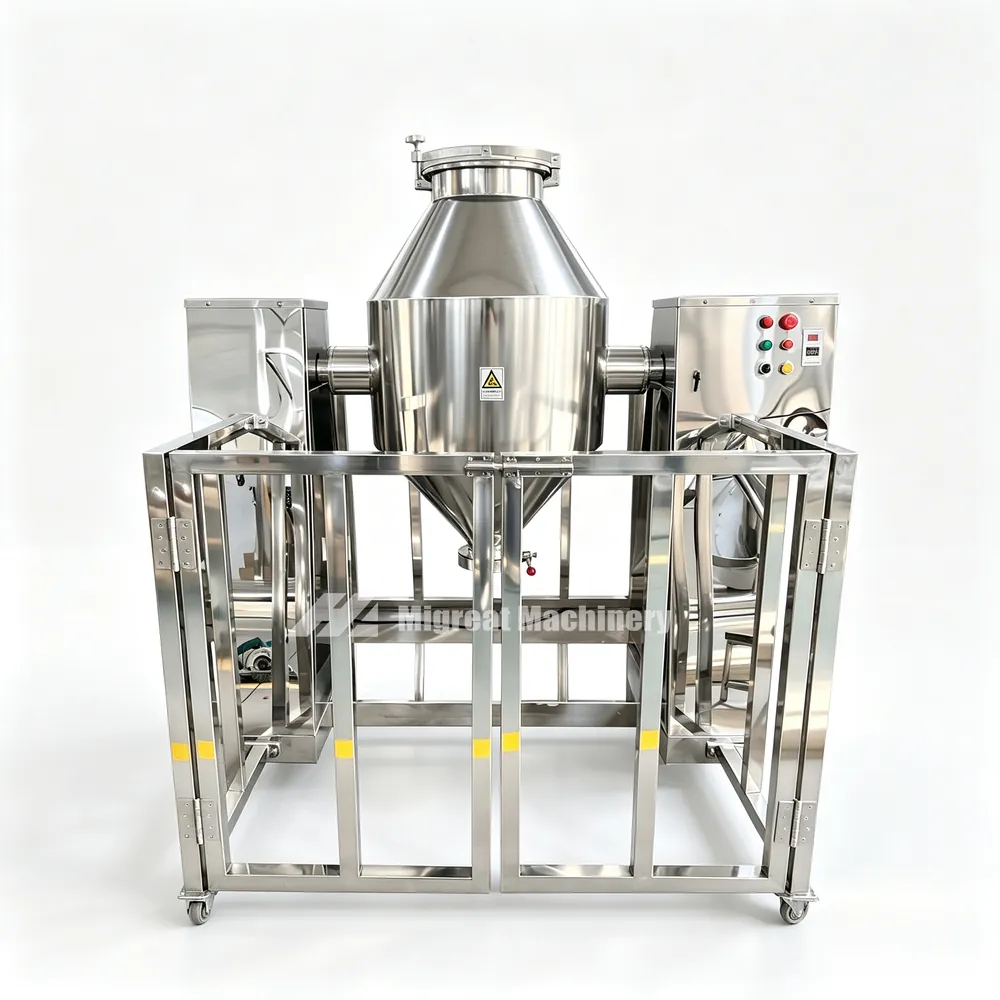

More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Gentle, no cross contamination

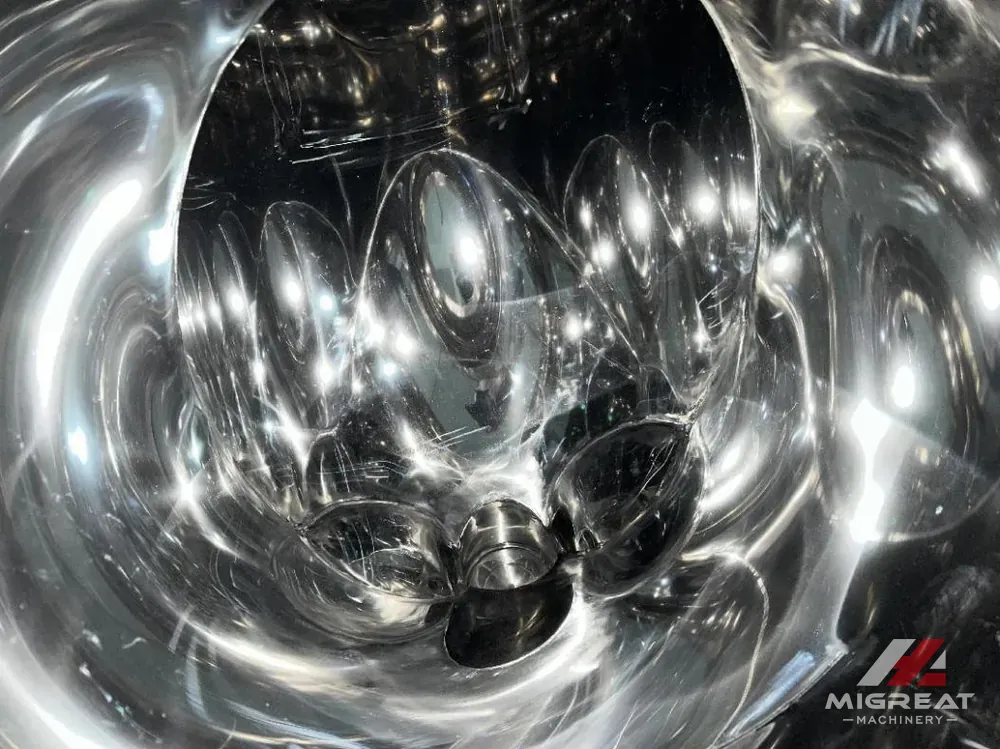

The tank is fully welded and polished inside and out.
High uniformity
Two tapered cones turning through 360 degrees mix to a uniformity of up to 99%.
No cross contamination
No dead angle at the contact part, and no residue at discharge.
Mild mixing
The mixing is gentle, with no segregation.
Stainless steel
All parts are SS304, with SS316 contact parts optional.
Easy to clean
Easy and safe to clean.
Automatic loading
It can work with a vacuum conveyor for automatic, dust-free feeding.
Build it your way
Contact material
SS304, or SS316 for contact parts.
Loading
Vacuum conveyor for automatic feeding.
Size
Eleven models from W-50 to W-4000.
Speed
3 to 12 rpm (2 to 8 on W-4000).
Voltage
To your site.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by volume
Maximum load is for reference and depends on material density.
| Model | Total volume (L) | Max loading (kg) | Rotation speed (rpm) | Power (kW) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| W-50 | 50 | 25 | 3-12 | 0.75 | 1200 | 650 | 1200 | 150 |
| W-100 | 100 | 50 | 3-12 | 1.1 | 1300 | 700 | 1300 | 200 |
| W-200 | 200 | 100 | 3-12 | 1.5 | 1450 | 1100 | 1650 | 300 |
| W-300 | 300 | 150 | 3-12 | 2.2 | 1685 | 1300 | 1750 | 500 |
| W-500 | 500 | 250 | 3-12 | 3 | 1910 | 1500 | 1950 | 800 |
| W-1000 | 1000 | 500 | 3-12 | 4 | 2765 | 1700 | 2200 | 1200 |
| W-1500 | 1500 | 750 | 3-12 | 5.5 | 2960 | 2000 | 2480 | 1500 |
| W-2000 | 2000 | 1000 | 3-12 | 7.5 | 3100 | 2100 | 2550 | 2000 |
| W-2500 | 2500 | 1250 | 3-12 | 11 | 3300 | 2350 | 2950 | 2400 |
| W-3000 | 3000 | 1500 | 3-12 | 15 | On request | 2450 | 3000 | 2900 |
| W-4000 | 4000 | 2000 | 2-8 | 18.5 | 4750 | 2850 | 3250 | 4100 |
Showing 7 of 11 models
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Applications
Where it works
It mixes dry powder and granule in food, chemical and agriculture.
Materials it handles
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Questions
Before you order
What is a double cone blender used for?
The W double cone mixer mixes dry powder and dry granular material for the food, chemical, agriculture and other industries. Examples on the page are protein powder, chicken powder, gourmet powder, washing powder, detergent powder, titanium oxide and cosmetic powder.
What does double cone mean?
It means the tank is made of two tapered cones joined together. In the W mixer the tank turns 360 degrees, so material moves in every direction without segregation, with uniformity of up to 99 percent.
What is the maximum capacity of a double cone blender?
The W range runs from W-50 to W-4000, so the largest tank is 4,000 L. The maximum load coefficient is 0.7, and the maximum load depends on material density.
