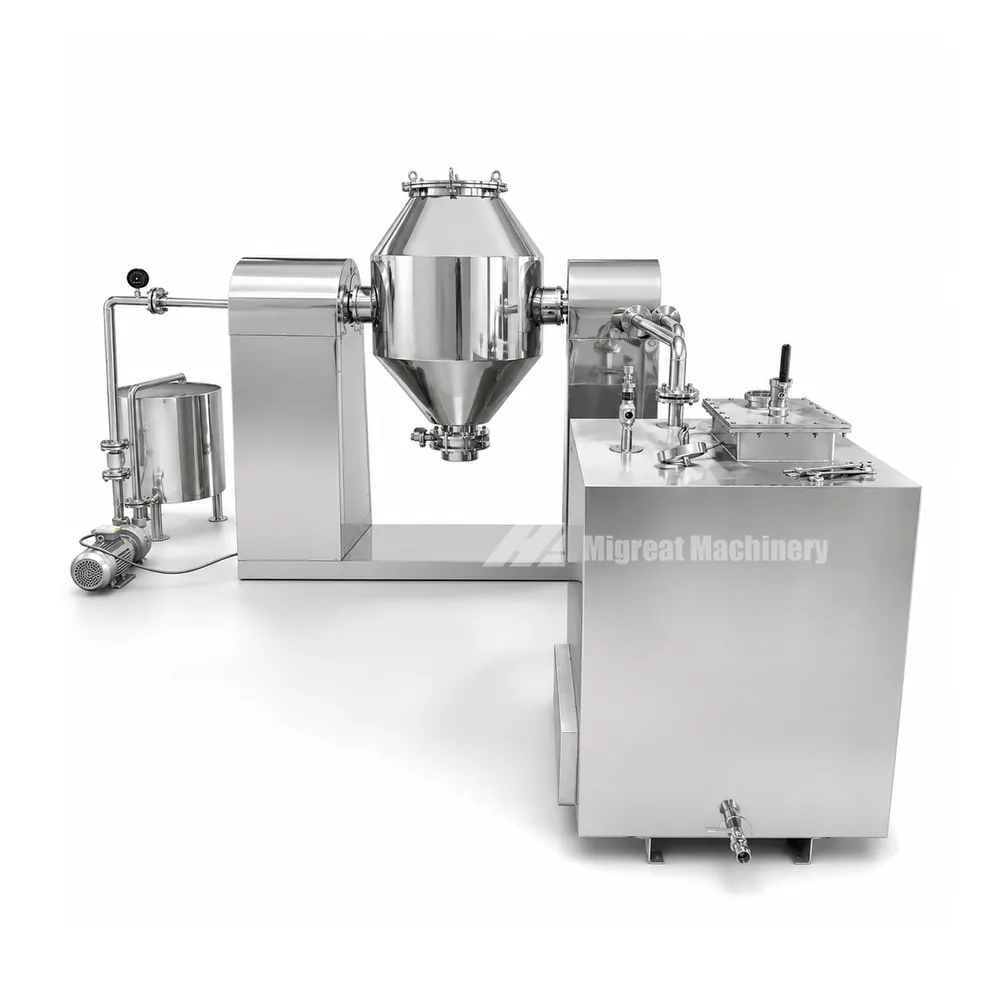

Double Cone Rotary Vacuum Dryer
A low temperature double cone dryer (RCVD) that also mixes. The tank rotates under vacuum and is heated through a jacket.
- Volume
- 100 L to 6,000 L, 10 models
- Working temp.
- Inner ≤85 °C, jacket ≤140 °C
- Tank pressure
- -0.09 to 0.15 MPa
- Heating
- Steam, hot water or thermal oil
- Built to your materialSize, material and motor set to your product.
- Made in our workshopDesigned and built by our own team.
- Support through installationFrom first inquiry to your production line.

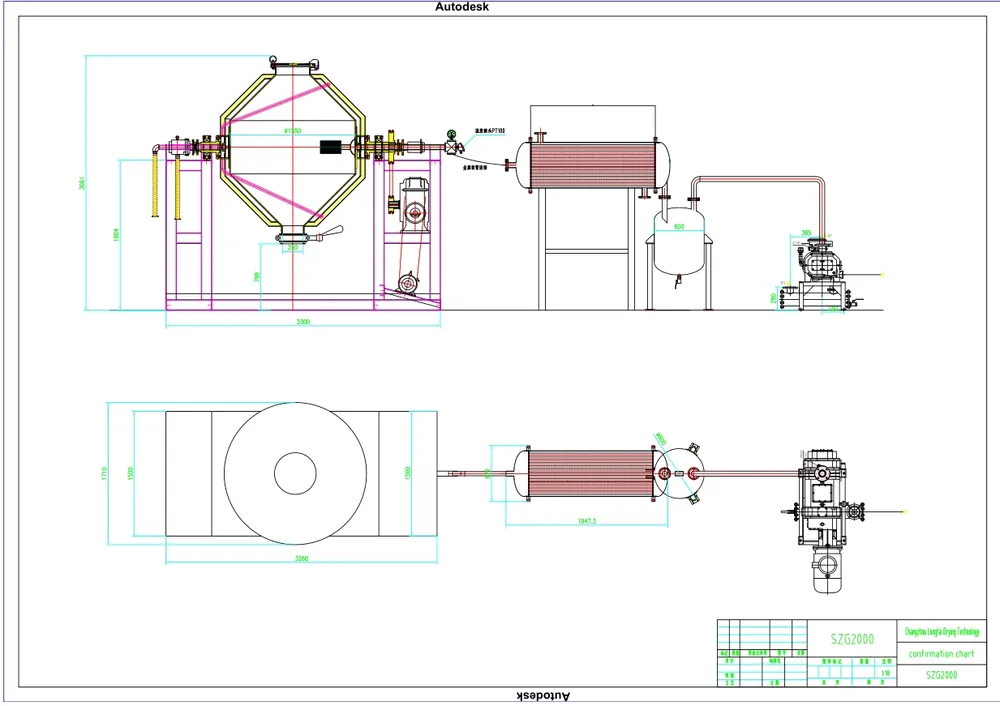

Overview
Mix and dry in one rotating tank
The SZG low temperature double cone mixing dryer combines home and overseas technology. It has a belt and chain two-stage elastic drive and a low center of gravity, so it runs smoothly.

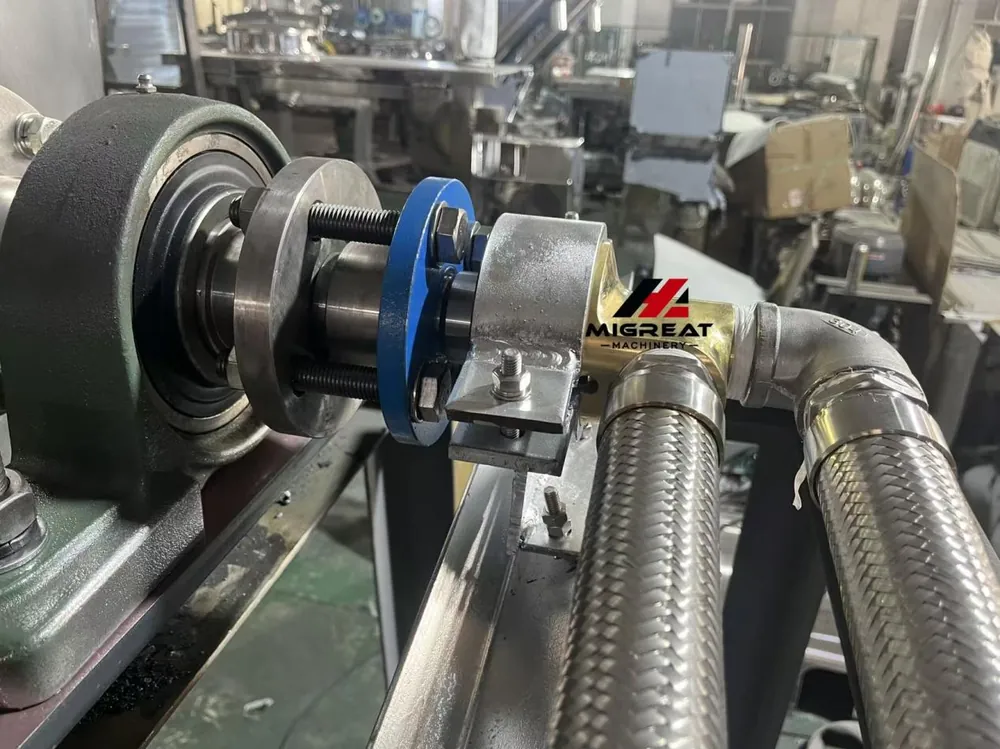

The heating medium and vacuum system use a mechanical seal or rotating joint, which avoids the leaks common with ordinary packing seals.

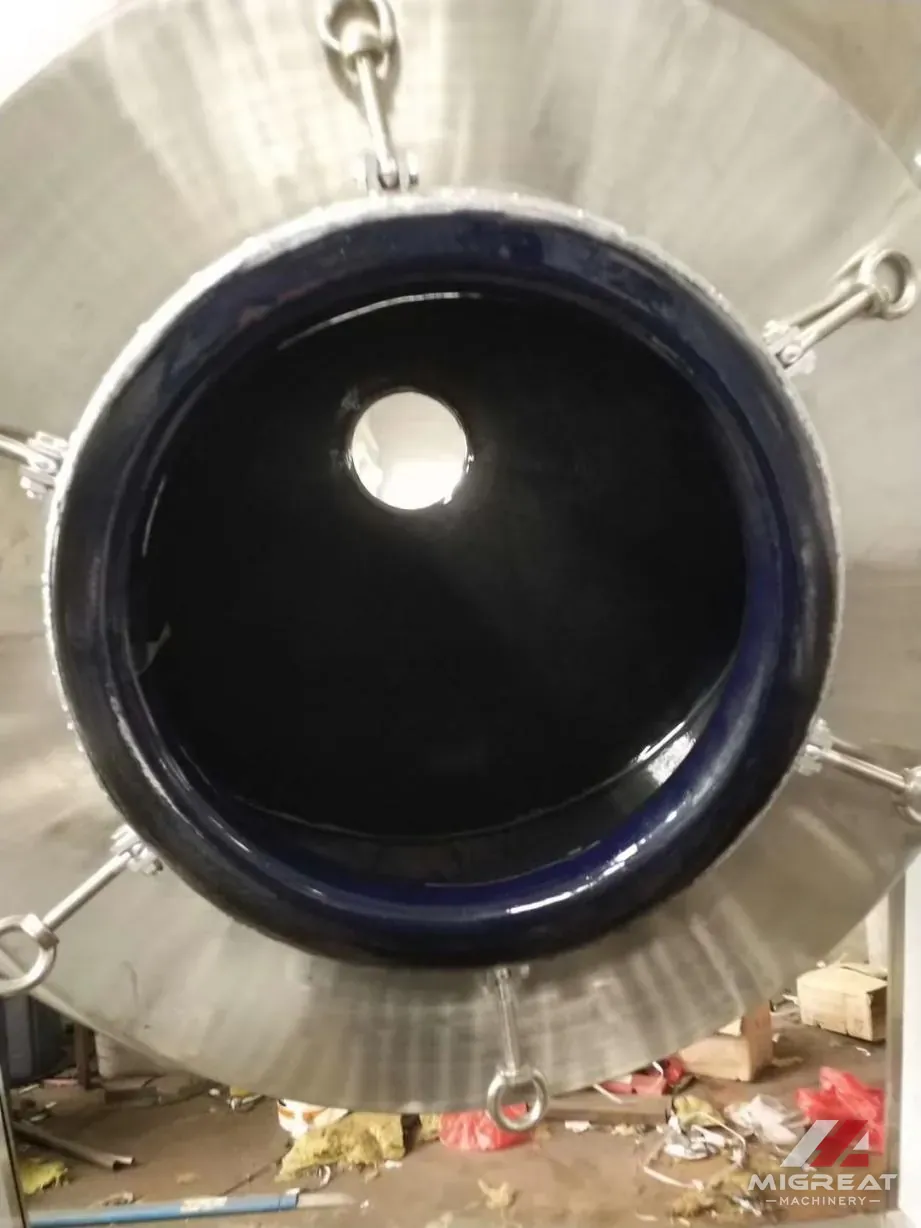

Load
Charge the double cone tank. Loading volume is about half of the tank volume.
Heat and turn
The tank rotates at 3 to 13 r/min while the jacket heats the material indirectly under vacuum.
Recover
The process can recover solvent. Discharge when dry.
The range in numbers
- 10Models
From SZG-100 to SZG-6000
- 100 to 6,000L
Total volume
- 3 to 13r/min
Rotary speed
- Over 2 timesThermal efficiency
Versus a general oven

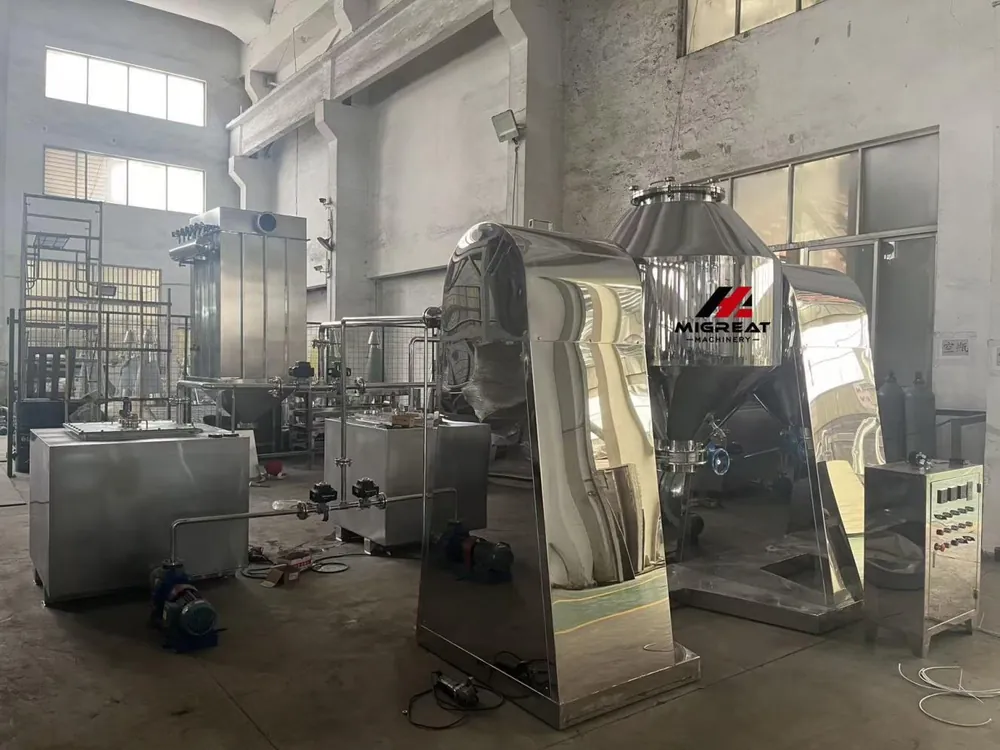

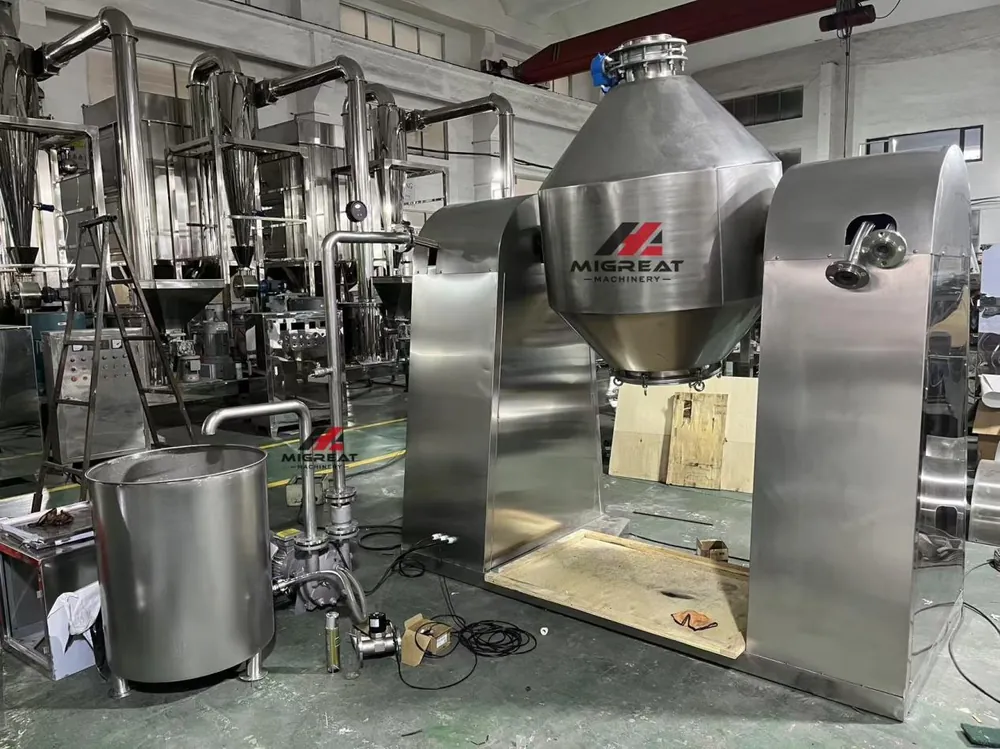

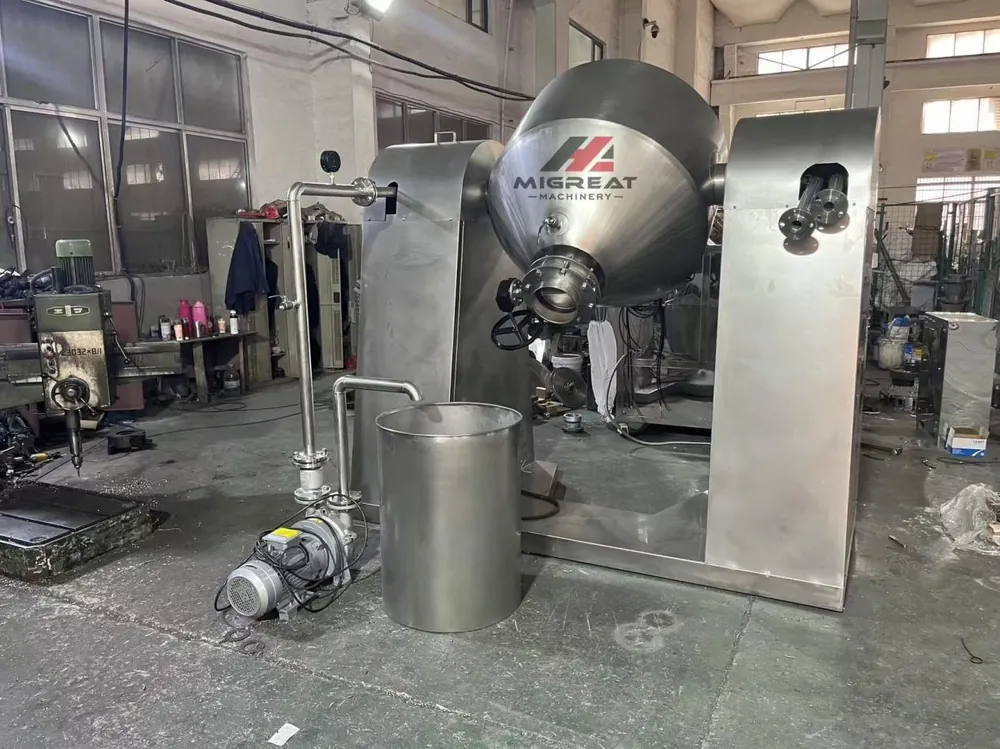

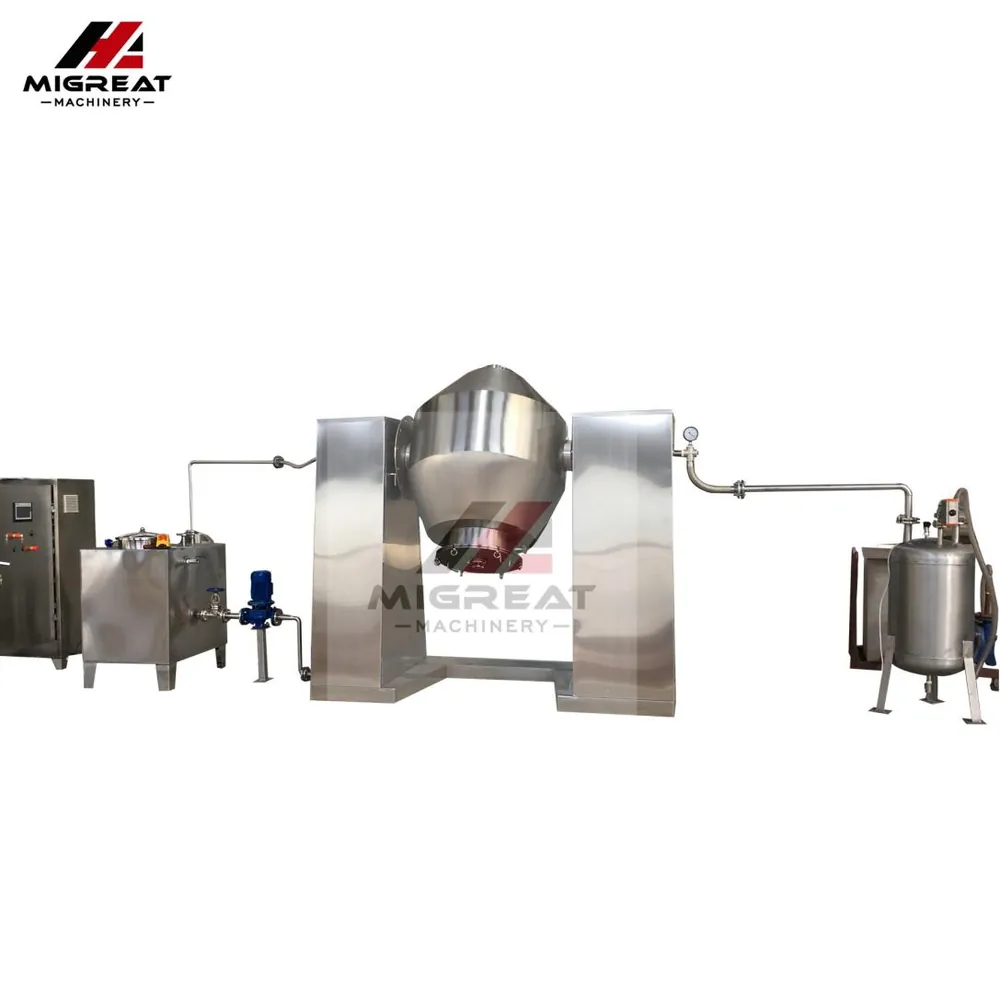

More views
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Features
Indirect heat, no contamination
The design meets GMP requirements and is easy to clean.
Indirect heating
Material is not contaminated, in line with GMP.
Automatic constant temperature
Oil is heated under automatic temperature control. Biochemical products and mineral raw material dry at 20 to 160 °C.
High thermal efficiency
More than 2 times higher than a general oven.
Reliable seals
Mechanical seal or rotating joint on the heating medium and vacuum system.
Smooth running
Belt and chain two-stage elastic drive with a low center of gravity.
Easy to maintain
Easy to operate, maintain and clean.
Build it your way
Size
Ten models from 100 L to 6,000 L.
Heating medium
Steam, hot water or heat transfer oil.
Process
Solvent recovery process available.
Temperature
Working temperature 20 to 160 °C.
Have a question about this machine?
Send your material and batch size. We reply with a suitable model.
Specifications
Choose by tank volume
Rotary speed is 3 to 13 r/min, tank inner pressure is -0.09 to 0.15 MPa, clip set pressure is ≤0.3 MPa on all models.
| Model | Total volume (L) | Loading volume (L) | Motor power (kW) | Rotary height (m) | Weight (kg) |
|---|---|---|---|---|---|
| SZG-100 | 100 | ≤50 | 0.75 | 1.75 | 800 |
| SZG-200 | 200 | ≤100 | 1.1 | On request | 900 |
| SZG-350 | 350 | ≤175 | 1.5 | 2.1 | 1100 |
| SZG-500 | 500 | ≤250 | 1.5 | 2.25 | 1200 |
| SZG-750 | 750 | ≤375 | 2 | 2.49 | 1500 |
| SZG-1000 | 1000 | ≤500 | 3 | 2.8 | 2800 |
| SZG-1500 | 1500 | ≤750 | 3 | 2.94 | 3300 |
| SZG-2000 | 2000 | ≤1000 | 4 | 2.99 | 3600 |
| SZG-4000 | 4000 | ≤2000 | 7.5 | 3.7 | 4300 |
| SZG-6000 | 6000 | ≤2500 | 11 | 3.9 | 5500 |
Showing 7 of 10 models
